Suncast BMDB134004 - Assembly Steps 9-12 (Parts Box A); Attaching Hinges and Shocks (Box A)

77

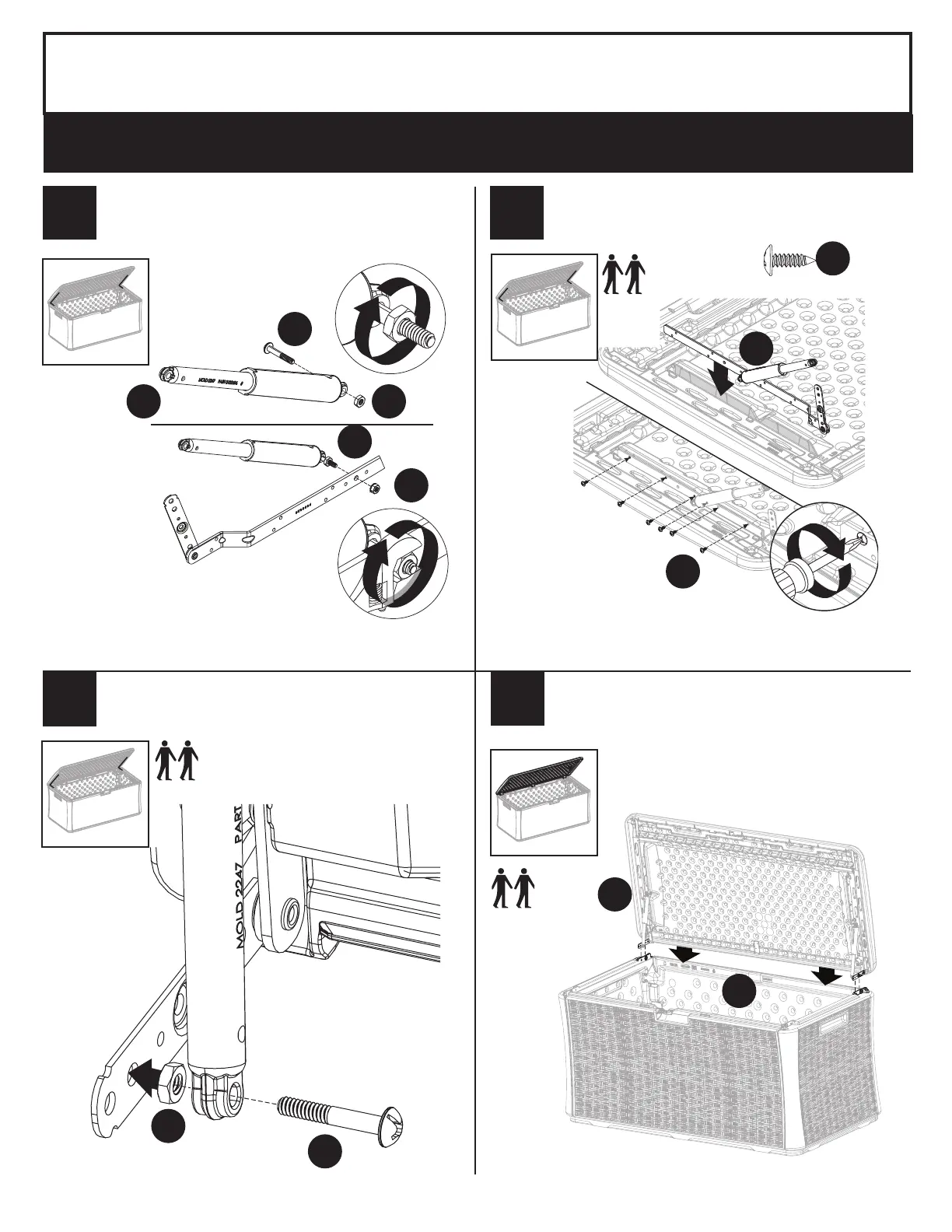

Insert bolt (HH) into hole in top of shock (K). Thread nut (II) onto bolt (HH)
and tighten. Insert bolt (HH) into hinge. Use a wrench to tighten nut (GG)
onto bolt. Repeat for remaining hinge and shock.
9
3
1
4
2
K
HH
HH
GG
II
After Step 8, please Identify which parts box is included with your model, A or B.
- For parts box A, continue to steps 9-13
- For parts box B, skip to steps 14-18
Lower hinge to lid panel (E). Nut should nest into pocket on lid. Attach
hinge to lid panel by using six screws (AA).
Repeat with hinge on other side.
10
1
2
x12
AA
E
AA
Insert bolt (HH) into Shock bottom. Thread nut (II) onto bolt (HH) and
tighten. Insert Bolt into lower hinge.
Repeat with hinge on other side.
9
11
II
HH
12
Align lid (E) to Back panel (C).
NOTE: Two person assembly required for steps 11 - 12.
C
E
Assembly (cont.)
Parts Box A
