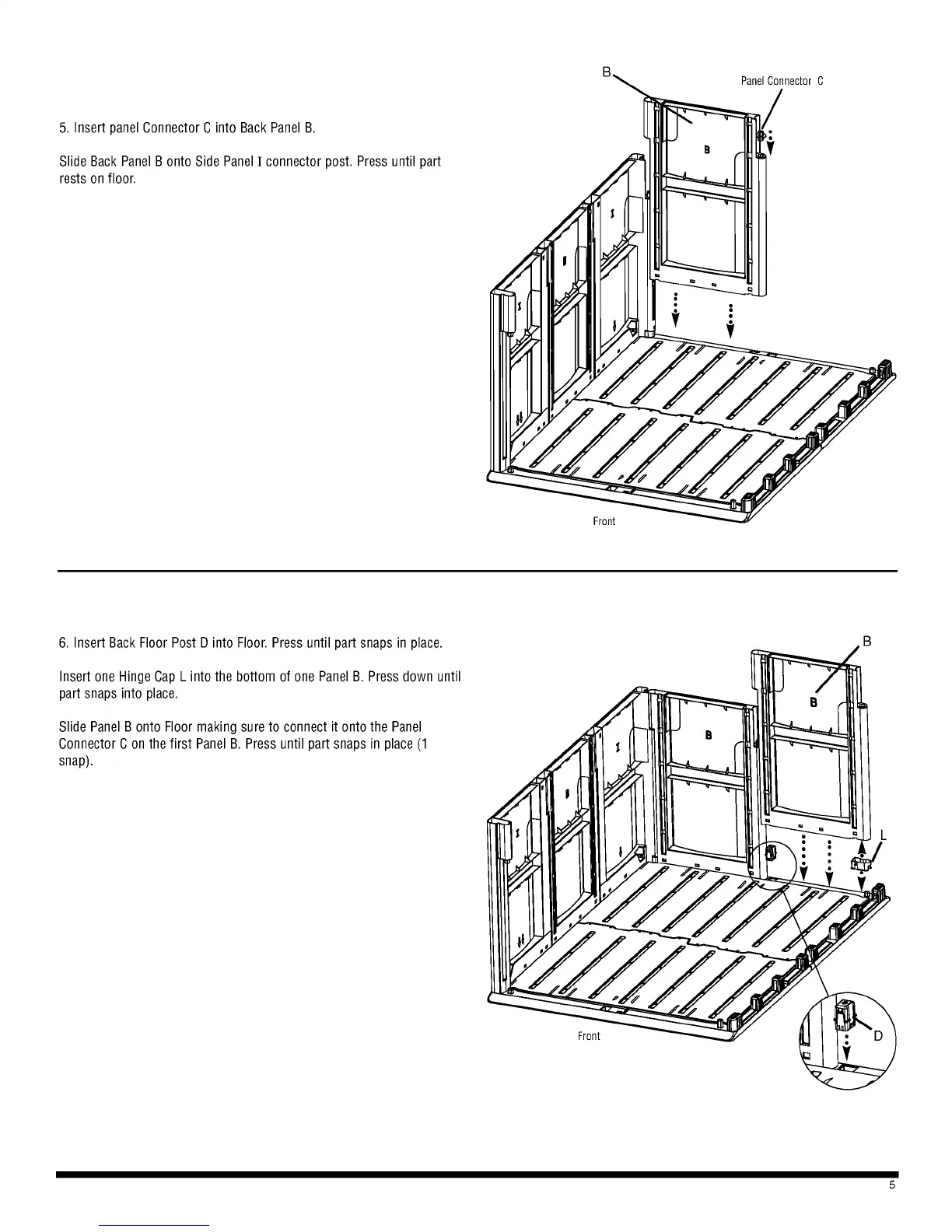

5. Insert panel Connector C into Back Panel B.
Slide Back Panel B onto Side Panel I connector post. Press until part
rests on floor.
6. Insert Back Floor Post D into Floor. Press until part snaps in place.
Insert one Hinge Cap L into the bottom of one Panel B. Press down until
part snaps into place.
Slide Panel B onto Floor making sure to connect it onto the Panel
Connector C on the first Panel B. Press until part snaps in place (1
snap).
C
5
Front
