Suncast Tremont - Page 12

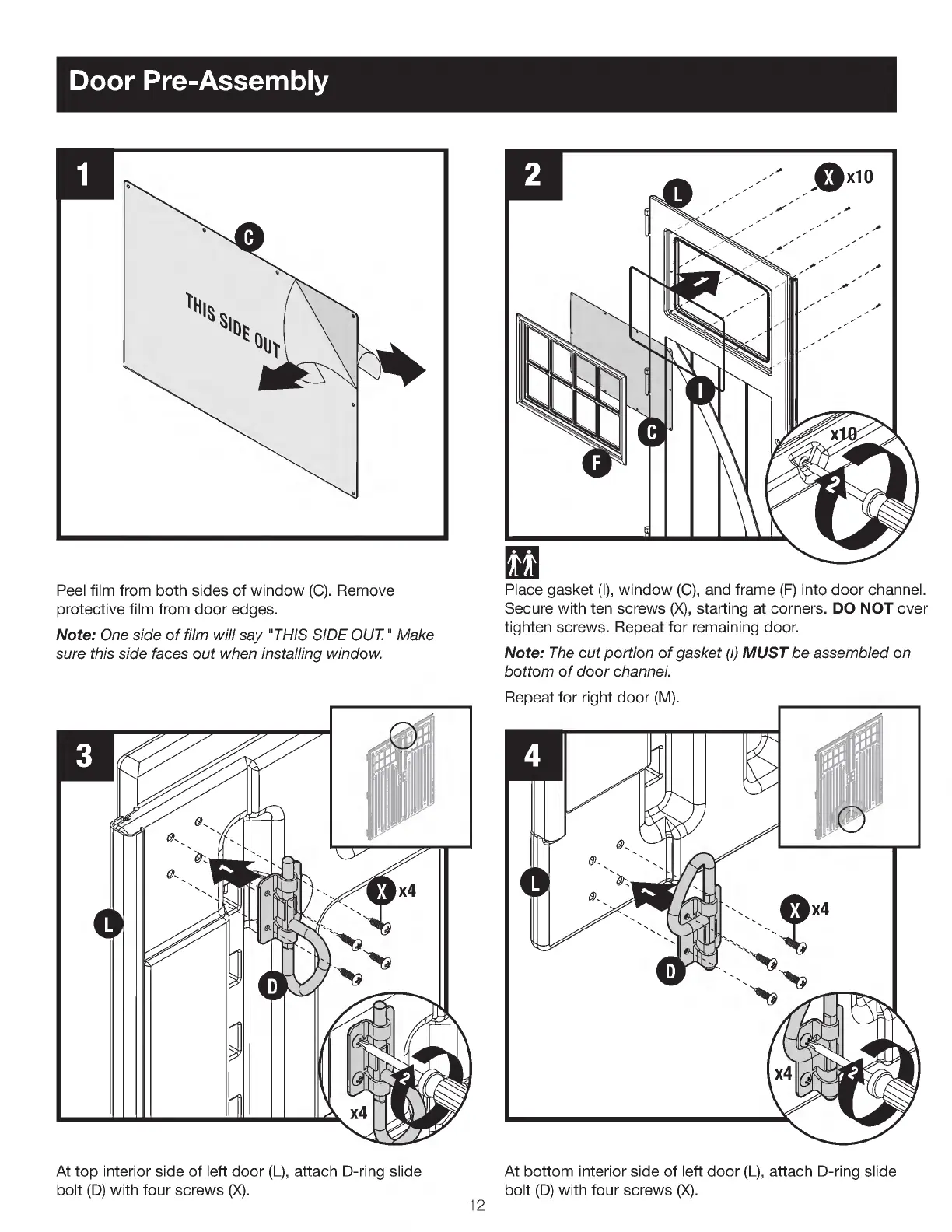

Door Pre- Assembly
Peel film from both sides of window ( C). Remove
protective film from door edges.
Note: One side of film will say " THIS SIDE OUT" Make
sure this side faces out when installing window.
gi
Place gasket ( I), window ( C), and frame ( F) into door channel.
Secure with ten screws ( X), starting at corners. DO NOT over
tighten screws. Repeat for remaining door.
Note: The cut portion of gasket ( J) MUST be assembled on
bottom of door channel.
Repeat for right door ( M).
At top interior side of left door ( L), attach D- ring slide
bolt ( D) with four screws ( X).
At bottom interior side of left door ( L), attach D- ring slide
bolt ( D) with four screws ( X).
12
