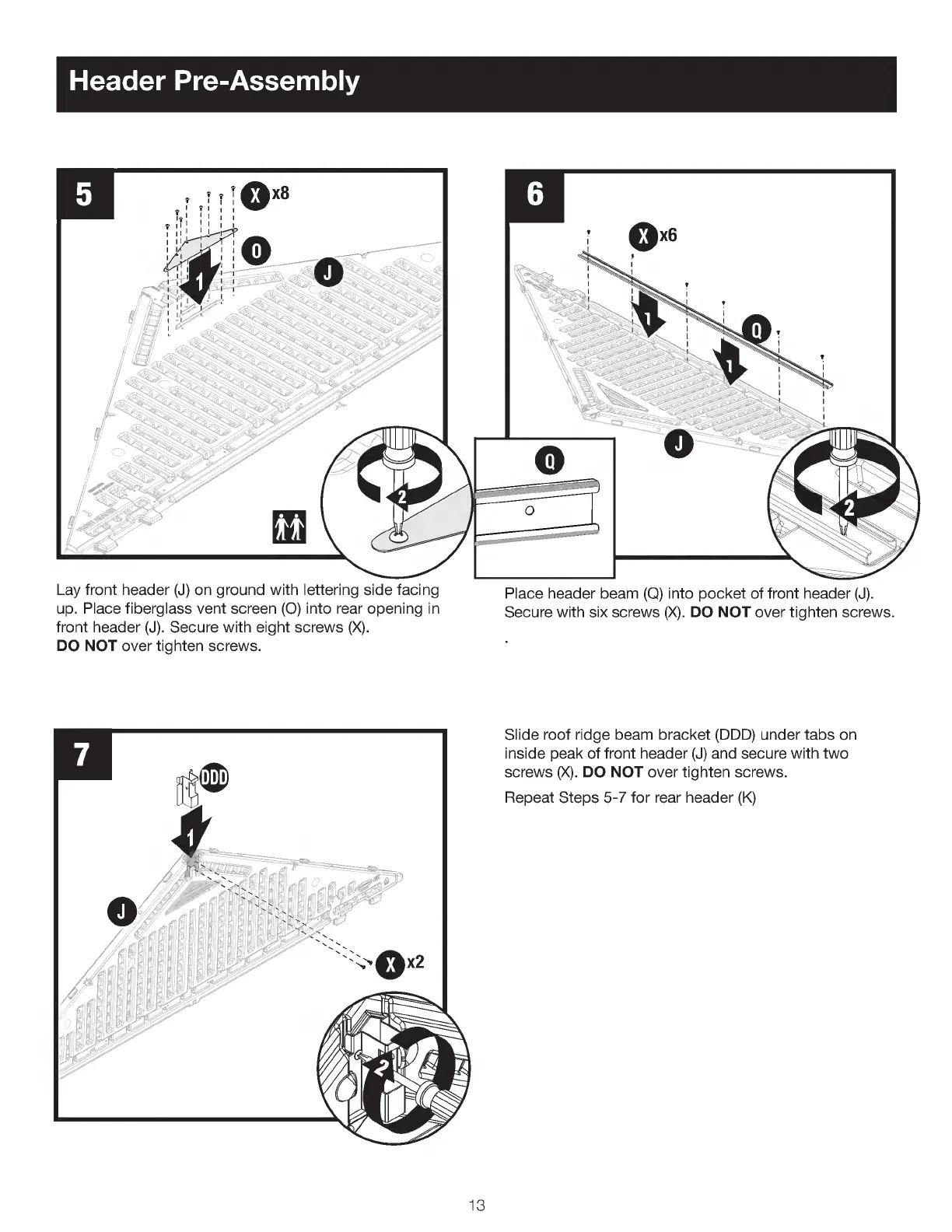

Header
Pre-
Assembly
Lay
front
header (
J)
on
ground
with
lettering
side
facing
up.
Place
fiberglass
vent
screen (
0)
into
rear
opening
in
front
header (
J).
Secure
with
eight
screws (
X).
DO
NOT
over
tighten
screws.
DDD
Place
header
beam (
Q)
into
pocket
of
front
header (
J).
Secure
with
six
screws (
X).
DO
NOT
over
tighten
screws.
Slide
roof
ridge
beam
bracket (
DDD)
under
tabs
on
inside
peak
of
front
header (
J)
and
secure
with
two
screws (
X).
DO
NOT
over
tighten
screws.
Repeat
Steps
5-7
for
rear
header (
K)
13
