Suncast Tremont - Page 24

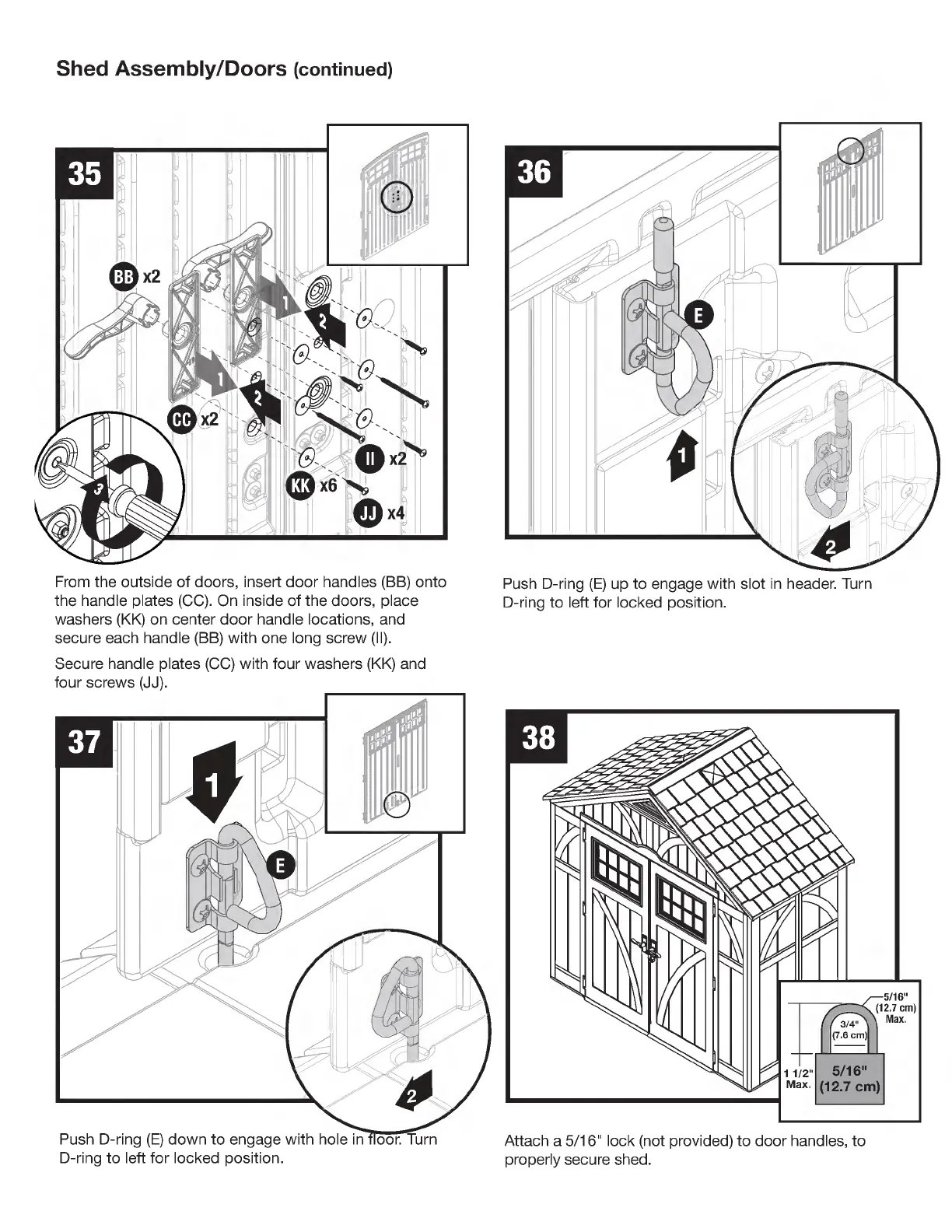

Shed Assembly/Doors ( continued)
From the outside of doors, insert door handles ( BB) onto
the handle plates ( CC). On inside of the doors, place
washers ( KK) on center door handle locations, and
secure each handle ( BB) with one long screw ( II).
Secure handle plates ( CC) with four washers ( KK) and
four screws ( JJ).
Push D- ring ( E) down to engage with hole in oor. Turn
D- ring to left for locked position.
Push D- ring ( E) up to engage with slot in header. Turn
D- ring to left for locked position.
38
1 1/2"
Max.
5/16"
(12.7 cm)
Max.
5/16"
(12.7 cm)
Attach a 5/16" lock ( not provided) to door handles, to
properly secure shed.
