1. Assembling the fan unit, battery
2020-04-23
OI06H-0118 SR 500 4

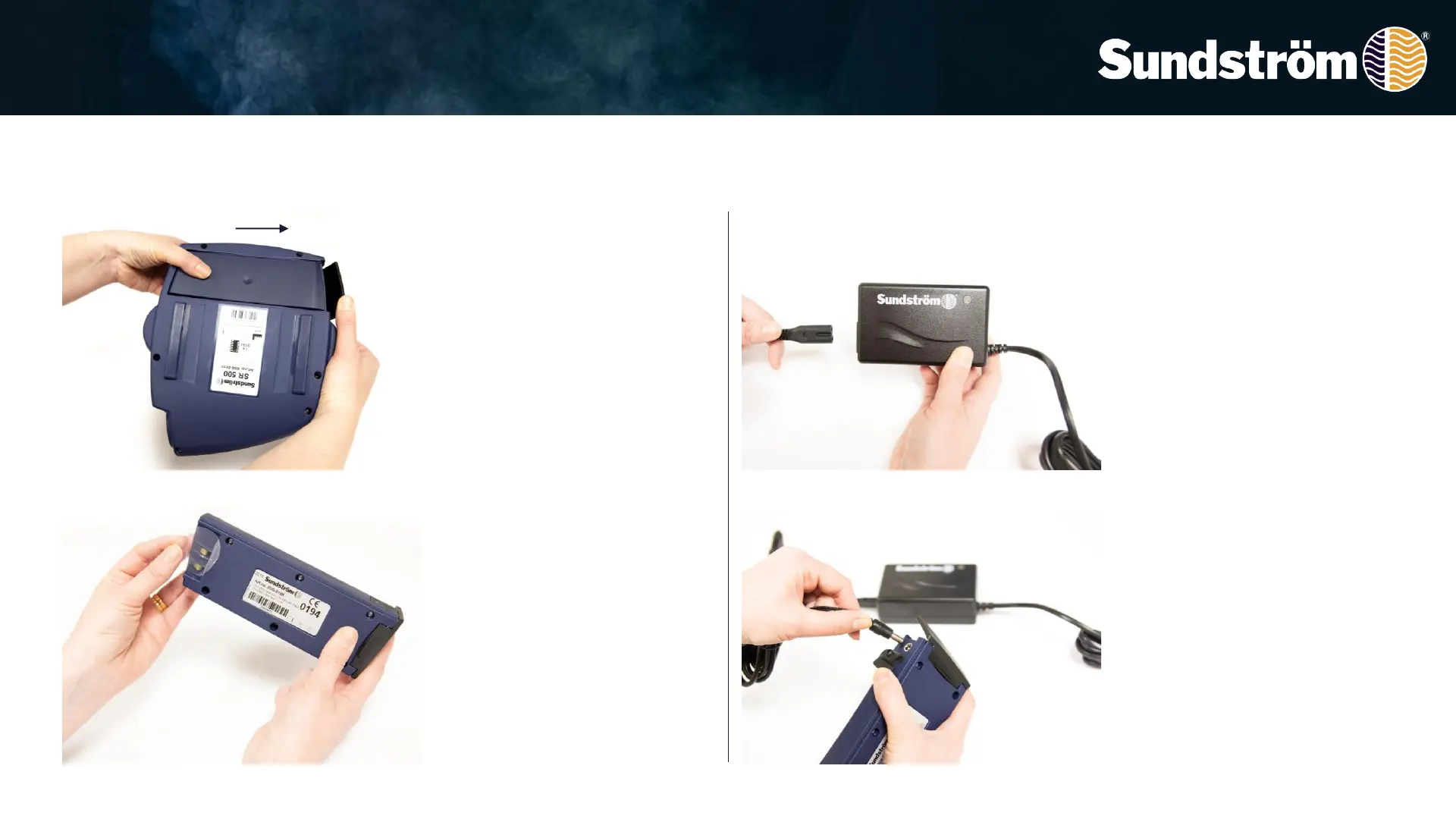

1.1 On delivery, the battery is
fitted to the fan with a
protective tape over the
battery terminals. Release the
battery by placing the fan
upside down.
Fold back the cover/lock on
the battery a couple of
centimetres and then push
with the other thumb.
1.2 Remove the protective
tape.
1.3 Connect the power supply
lead to the battery charger.
Connect the battery to the
battery charger. Connect the
power supply lead of the
charger to the wall socket.
N.B. Mains voltage of 100-
240V.
Charging takes place
automatically in 3 steps
1. Orange LED
2. Yellow LED
3. Green LED
Push the battery back into the
battery compartment. Check
that the battery has been
pushed in as far as it will go
and that its lock is operative.
