2. Assembly belt
2020-04-23
OI06H-0118 SR 500 5

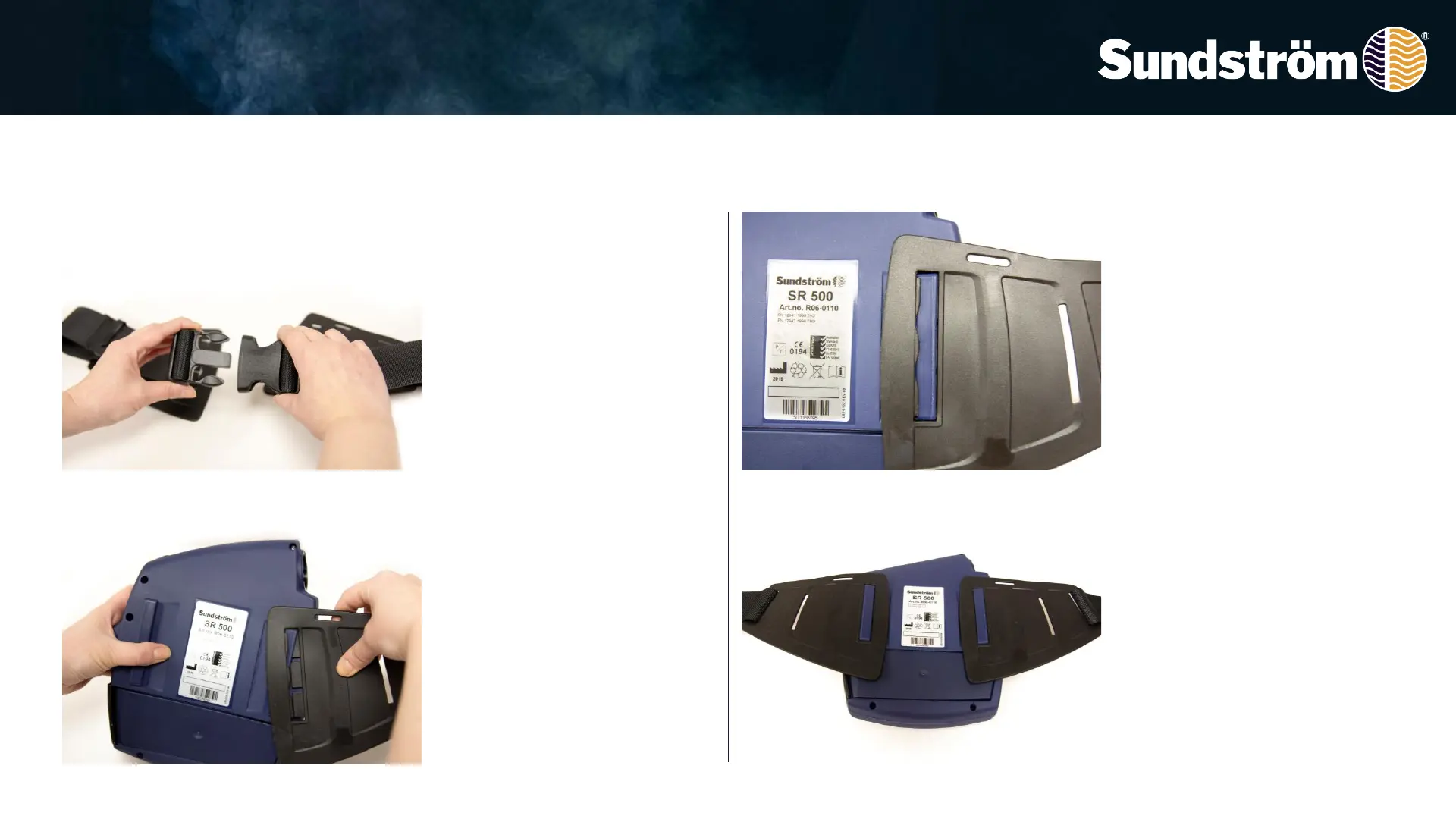

2.1 Assemble the belt by
pressing together the two
halves of the buckle.
2.2 The belt should be
mounted so that the belt is
pointing upwards.
Insert the three tongues of
the belt half into the slot in the
fan.
Begin to insert the upper
tongue and then turn the belt
into the fan.
2.3 Press down the three lips
locking the belt half.
2.4 Correctly mounted belt.
