Sunex HD 6622 - Parts Drawing and List

6622 5

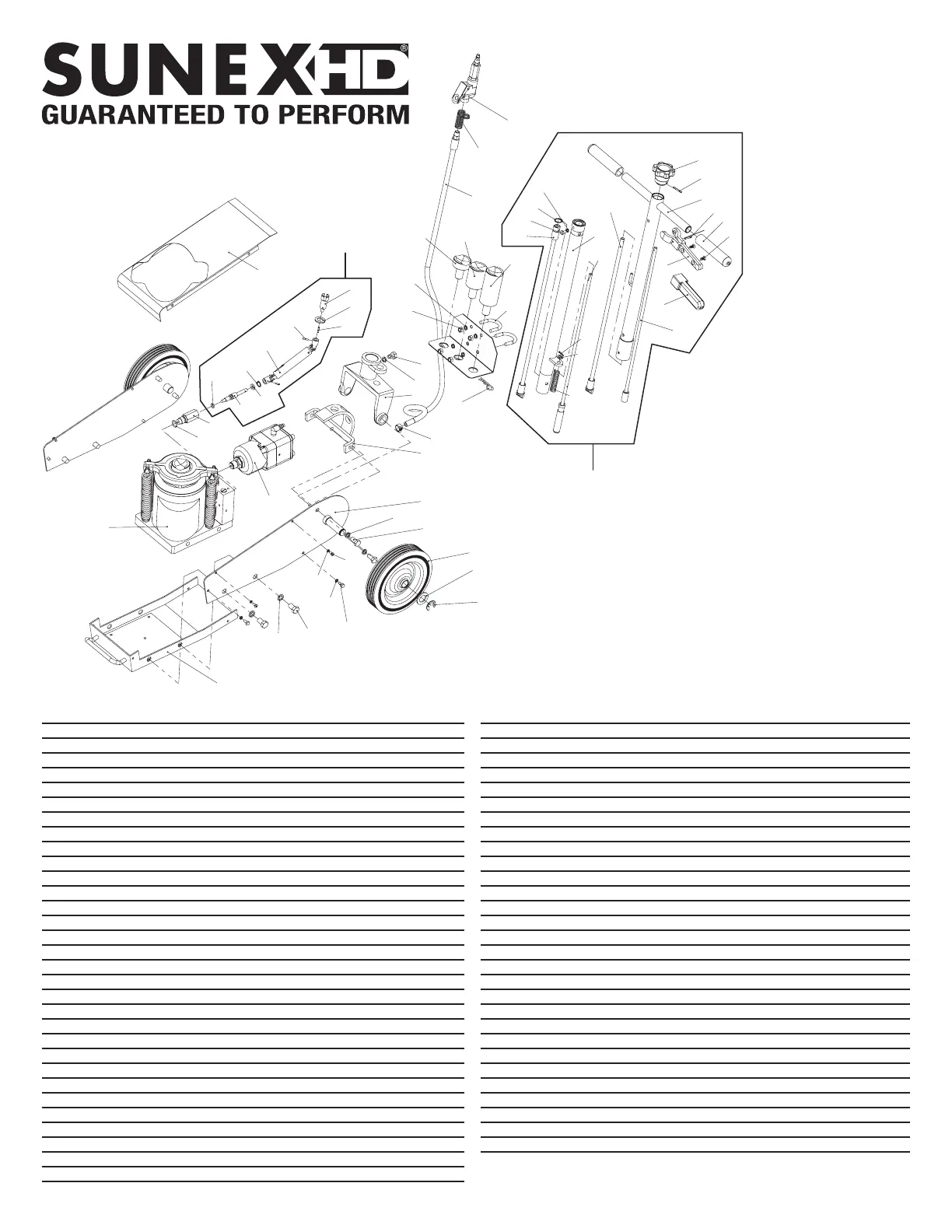

PARTS DRAWING AND LIST
6622
CAPACITY: 22 TON
AIR/HYDRAULIC
TRUCK JACK
REF # PART# DESCRIPTION QTY
1 RS662252 Knob 1
2 Spring Pin 1
3 RS662203 Handle Assembly (incl. #1-19) 1
4 Spring Pin 1
5 Handle Cap 2
6 Screw 2
7 Lock Lever 1
8 Handle Cap 1
9 RS662255 Stopper Assembly (incl. #9, 12, 15) 1
10 Rod Upper 1
11 Handle Lower 1
12 Stopper Lower 1
13 Split Pin 1
14 Washer 1
15 Spring 1
16 Spring Washer (6) 5
17 Retaining Ring (18) 1
18 Bolt (M6x10) 1
19 Rod Lower 1
20 RS6622124 Adapter D 1
21 RS6622123 Adapter C 1
22 RS6622122 Adapter B 1
23 RS662223 Air Valve Assembly 1
24 Spring 1
25 RS66221015 Air Hose 1
26 * Spring Washer (8) 4
27 * Nut (M8) 4
28 * U-Bolt 2
29 * R-Pin 3
30 RS6622512 Bolt 1
31 Spring Washer (10) 5
REF # PART# DESCRIPTION QTY
32 RS6622511 Handle Fork 1
33 Handle Fork Bracket 1
34 Frame 2
35 Bolt (M10x20) 4
36 RS662213 Wheel 2
37 RS662212 Washer 2
38 RS662214 Snap Ring 2
39 Hose Band 1
40 Screw 4
41 Spring Wssher (5) 4
42 Bolt (M6x12) 4
43 Bolt M12x20) 4
44 Spring Washer (12) 4
45 Lower Cover 1
46 RS662246 Complete Power Unit 1
47 RS662270 Air Pump Assembly 1
48 O-Ring 1
49 Guide 1
50 Valve 1
51 RS662251 Release Valve Assembly (incl. #50-58) 1
52 Washer 1
53 Retaining Ring 1
54 Connecting Assembly 1
55 Spring Pin 2
56 Split Pin 1
57 Washer 1
58 Connecting Rod 1
59 RS662266 Upper Cover 1
RS6622PLK Product Label Kit (not shown) 1
* Available in Holder Bolt Kit RSHDRBK
Only items identified by part number are available for purchase.
1
2
3
5
7
6
4
8
9
10
12
15
14
13
11
16
18
17
19
22
21
20
28
27
26
29
24
23
30
31
32
33
34
38
37
36
35
31
40
41
16
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
RS662251
Release Valve
Assembly
25
39
RS662203
Handle
Assembly
