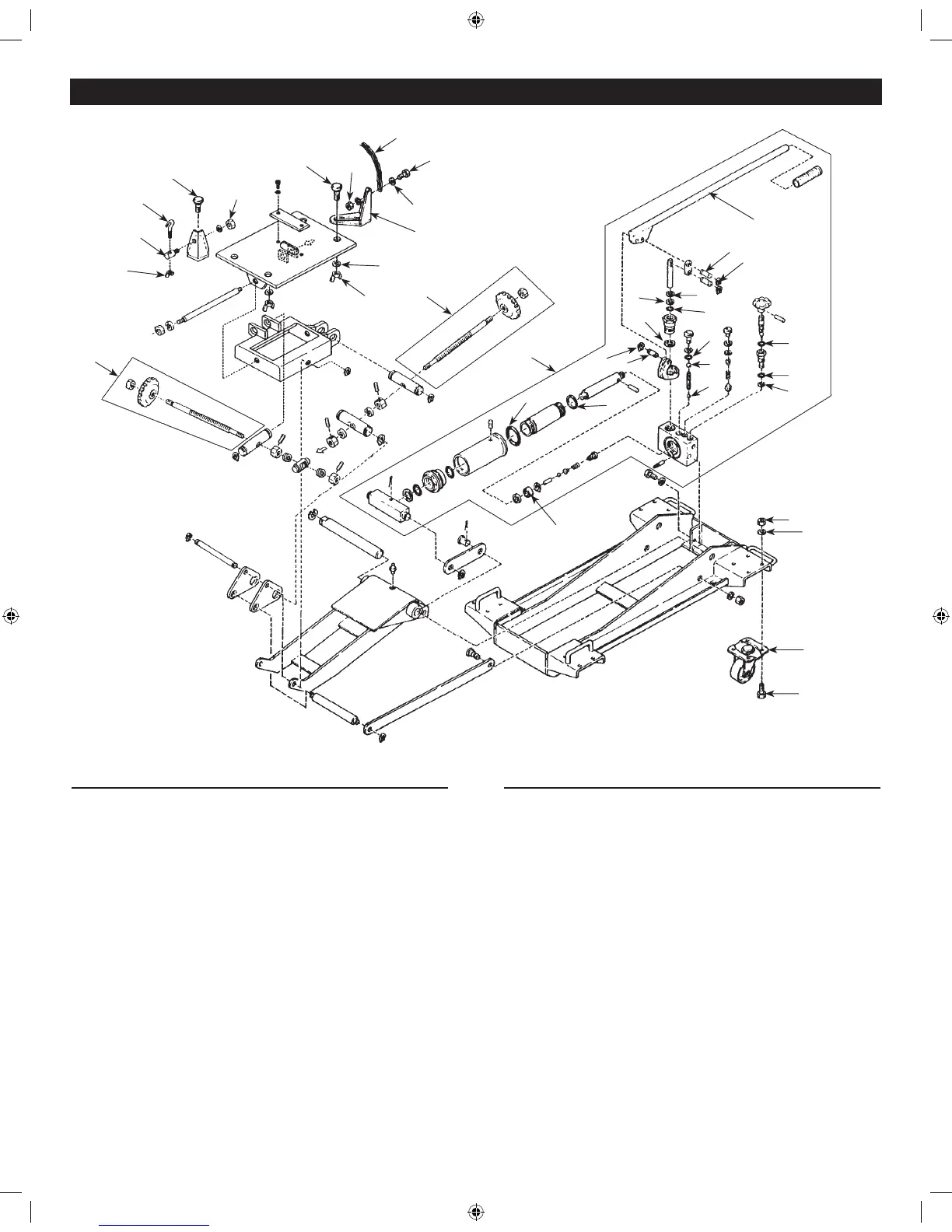

MODEL 7752C OPERATING MANUAL & PARTS BREAKDOWN
Rev. 12/22/99
Index Part
No. No. Description Qty.
1 7752C01 4" Swivel Caster 4
2 ** Bolt 16
3 ** Lock Washer 16
4 ** Nut 16
5 7752C05 Clevis Groove Pin 3
6 ***7752C06 Snap Ring 6
7 7752C07 Complete Hyd. Unit 1
8 * U-type Packing 1
9 * Copper Packing 1
10 * O-Ring 1
11 * Steel Ball 1
12 * Steel Ball 1
13 * O-Ring 1
14 * Back-up Ring 1
15 * O-Ring 1
16 * Oil Seal 1
18 * Copper Packing 1
19 * O-Ring 1
Index Part
No. No. Description Qty.
20 * O-Ring 1
21 * Copper packing 1
22 7752C22R Finger (RH) 2
22 7752C22L Finger (LH) 2
23 ** Bolt 4
24 ** Washer 4
25 ** Wing Nut 4
26 7752C26 Handle 1
27 ****7752C27 Chain 1
28 ** Bolt 2
29 ** Washer 2
30 ** Nut 2
31 7752C31 Adjustment Rod Ass'y 1
32 7752C32 Adjustment Rod Ass'y 1
33 ** “J” Bolt 1
34 ** “I” Bolt 1
35 ** Wing Nut 1
*Available only in Seal Kit, Part #7752CSK **Available only in Bolt Kit, Part #7752CBK
***Available individually and in Seal Kit, Part #7752CSK
****Available individually and in Bolt Kit, Part #7752CBK
26
5
20
4
3
1
2
19
21
24
25
9
16
15
14
7
31
23
33
34
35
32
13
18
10
11
8
12
27
30
23
30
28
29
22
6
5
6
