7790 5
OWNER'S MANUAL

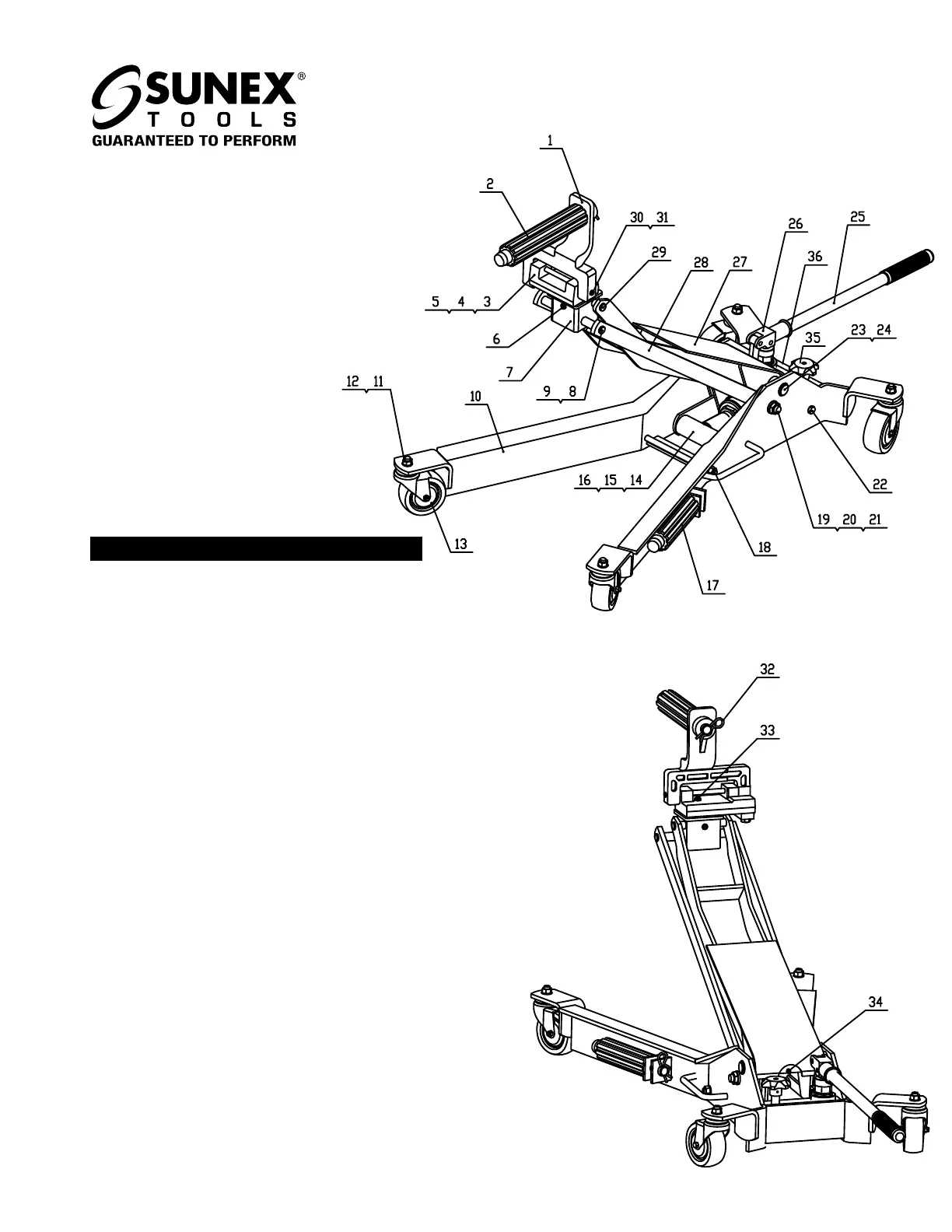

PARTS LIST &
DRAWING
REF. # PART # DESCRIPTION QTY.
1 Shaft Receiver 1
2 RS779007 2" Spline Shaft 1
3 RS779001 Saddle Assembly 1
(incl 1,2,3,4,5,6,7,8 & 9)
4 Spring 1
5 Steel Ball (8) 1
6 Screw (M6x18) 2
7 Saddle Base 1
8 Guide Arm Bar 1
9 Snap Ring 2
10
Frame 1
11 Nut 6
12 Washer 6
13 RS779002 Swivel Caster Assembly 4
(incl 11,12 & 13)
14 Trunion 1
15 Snap Ring 2
16 Trunion Arm 2
17 RS779003 1-3/4" Spline Shaft 1
18 Spacer Pin 1
19 Guide Arm Bolt 2
20
Nut 2
21 Washer 2
22 Screw (M12x40) 2
23 Lift Arm Pivot Pin 1
24 Snap Ring 2
25 RS779004 Handle 1
26 Handle Receiver 1
27 Lift Arm 1
28 Guide Arm 2
29
Shaft 1
30 Shaft 1
31 Snap Ring 2
32 RS779005 Clip Pin 2
33 Screw (M8x20) 1
34 Grease Zerk Fitting 1
35 RS779006 Release Knob Assembly 1
not sho
wn RS7790HPU Complete Hydraulic Power Unit 1
not shown RS7790PLK Product Label Kit 1
Only numbers identified by Part No. are a
vailable separately.
7790
CAPACITY: 300 LB.
CLUTCH JACK
