Sunfire Series II - Biwiring Mono Setup

18
User's Manual
RIGHT
LEFT
UNBALANCED
PREAMP OUTPUTS
+ -
RIGHT
TWEETER
(CURRENT
SOURCE)
RIGHT LOUDSPEAKER
+ -
RIGHT
WOOFER
(VOLTAGE
SOURCE)
TO
SECOND
AMPLIFIER

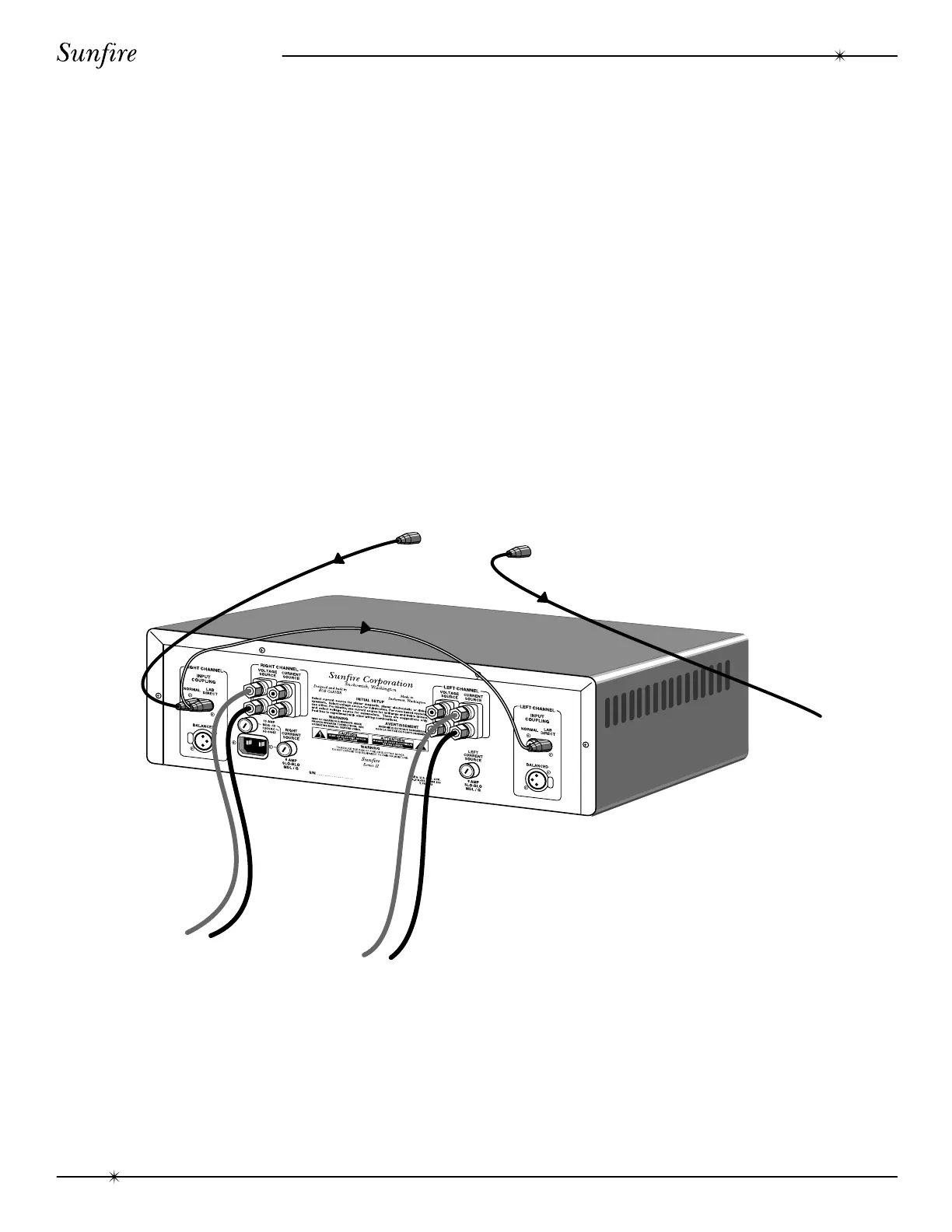

Mono Biwire connections
If you have two Sunfire amplifiers and
your speakers can be biwired, you can create
a very powerful and efficient system as
follows:
• Connect one amplifier’s right voltage
source output to the right speaker’s
woofer input terminals.
• Connect the same amplifier’s left
current source output to the right
speaker’s upper range input terminals.
• Connect your preamplifier’s right
output to the amplifier’s right Normal
input jack.
• Connect the right Lab Direct input to
the left Lab Direct input with a short
patch cord.
• Alternatively, you can use a “Y” cable
to split the preamp output into two, one
to feed the left Normal input and one
to feed the right Normal input.
• The left speaker connects to your
second amplifier in exactly the same
way as shown. The left preamp output
connects to the right Normal input jack
of the second amplifier.
