User's Manual
17
CHAPTER 2
LD connections: external RF Demodulator and S-Video
A suitable external RF demodula-
tor must be used to convert the AC-3
RF output of LD players. Ideally, the
demodulator should also have a
digital bypass (pass-through) feature.
Lexicon and B&K are among several
com pa nies making excellent de mod u-
la tors with this feature.

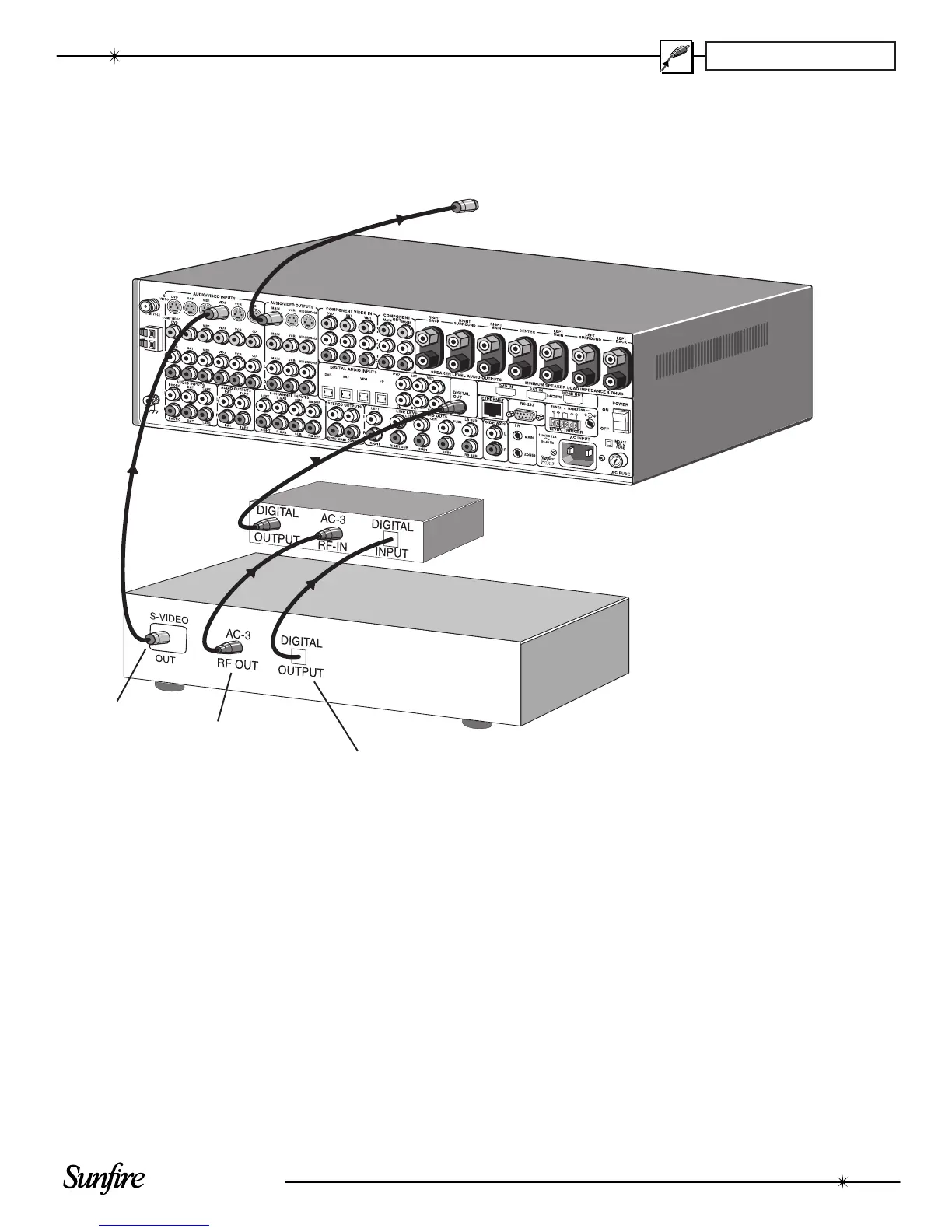

If your LD and TV Monitor both have
S-video, they can be connected as
shown. This gives a better picture
than composite video.
Note: you must also connect the
player's two-channel audio outputs
if you want to play it in Zone 2 when
the Main Zone is playing a different
source.
LD player
RF demodulator
digital
audio
signal
RF
signal
S-video signals
from TGR-3 MAIN S-video output
to TV Monitor's S-video input
S-video signal
From: LD Player
S-video output
To: TGR-3 VID2
S-video input
RF signal
From: LD Player
RF output
To: Demodulator
RF input
Digital audio signal
From: LD Player
Digital output
To: Demodulator
Digital input
