VCR connections: analog audio and composite video
The VCR can record the analog
audio and the video of whichever A/V
input is se lect ed.
NOTE: If your VCR has a digital
audio output, connect it to the TGR-
3’s digital VCR input. In this case, you
must also connect the VCR’s analog
audio outputs (as shown) if you want
to play in Zone 2 when the Main Zone
is playing a different source.

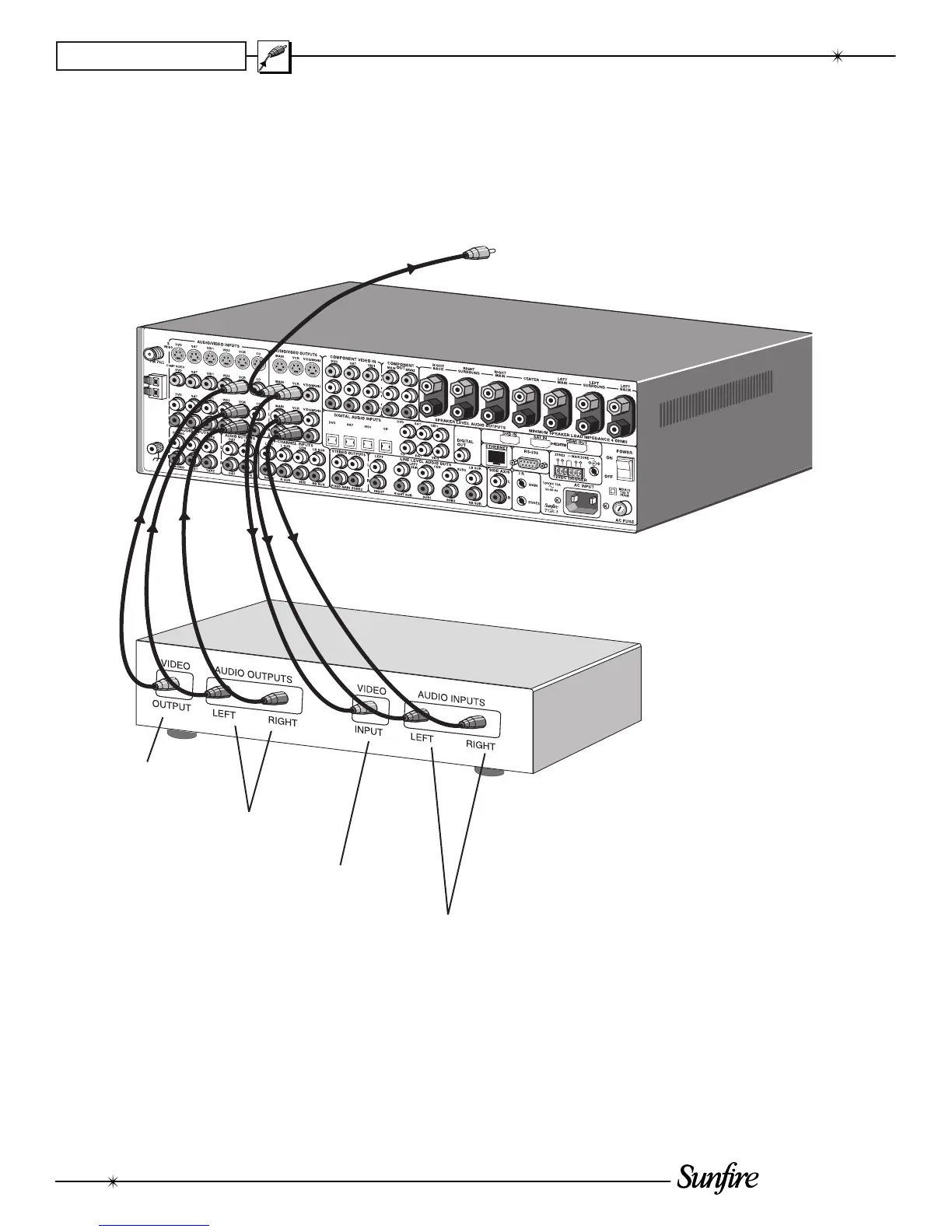

Composite video signal from
TGR-3 MAIN composite video output
to TV Monitor's composite video input
Analog audio signals (play)
From: VCR audio outputs
To: TGR-3 VCR L/R audio inputs
Composite video signal (play)
From: VCR video output
To: TGR-3 VCR video input
Analog audio signals (record)
From: TGR-3 VCR L/R audio
outputs
To: VCR L/R audio inputs
Composite video signal (record)
From: TGR-3 VCR video output
To: VCR video input
