Turntable connections
Only connect a Turntable to the
PHONO inputs. In most cases, you
should also connect the ground wire
to reduce any hum through the speak-
ers.
The TGR-3 PHONO input is
designed for moving magnet
cartridges and high output
moving coil cartridges. DO NOT con-
nect CD players or other line-level
sources to this input.

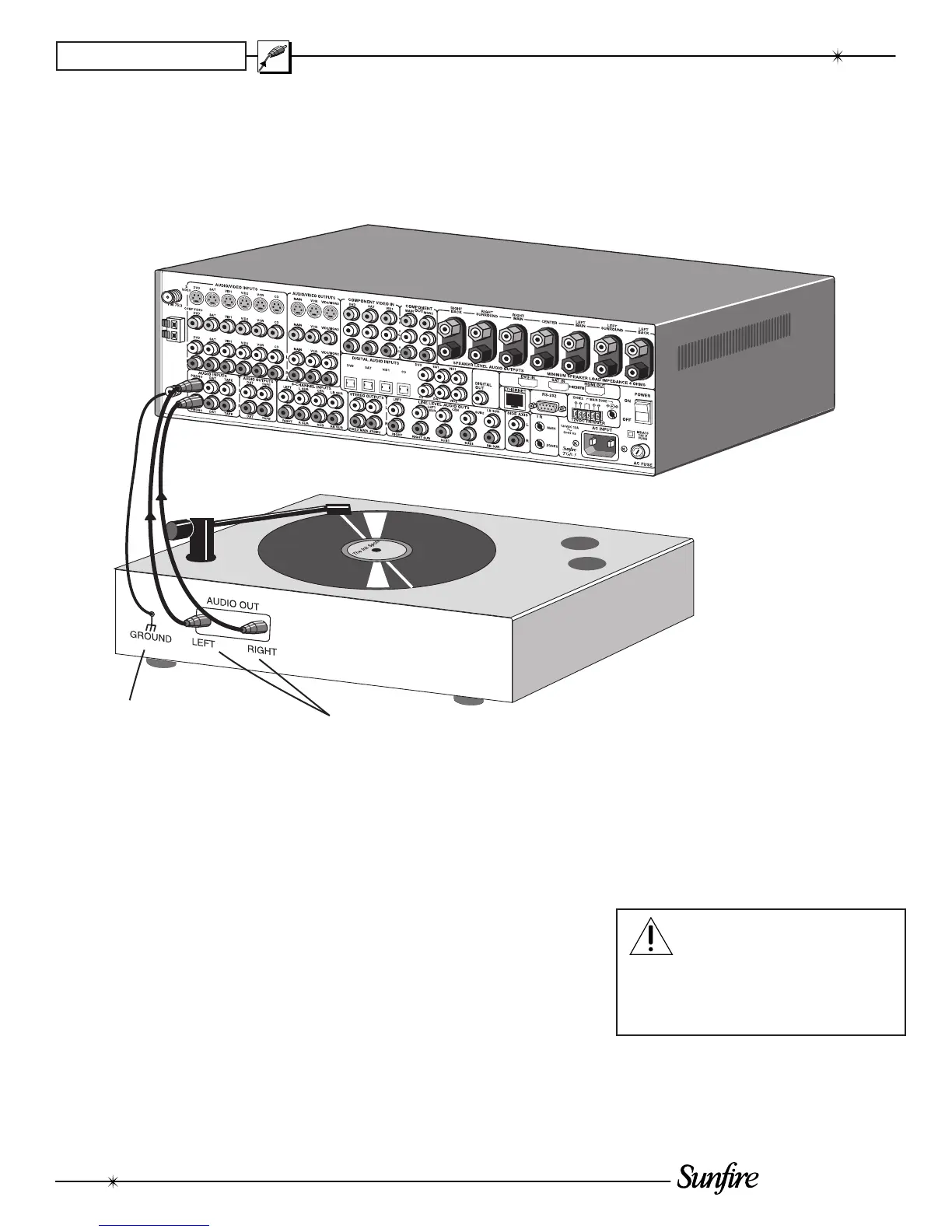

Phono-level audio signals
From: Turntable L/R audio outputs
To: TGR-3 Phono L/R audio inputs
Ground wire
From: Turntable chassis ground
To: TGR-3 chassis ground connec-
tor
