The wire diameter is for reference only. If the distance between the PV array and the inverter or
between the inverter and the battery is long, using a thicker wire will reduce the voltage drop and
improve the performance of the system.
• Battery
•
LOAD
Model
Cable Diameter
Max. Battery
discharge Current
Max.battery charge
current
Circuit Breaker Spec
HESP4840S100-H
30mm
2
/2AWG
100A
100A
2P-160A
HESP4846S100-H
30mm
2
/2AWG
118A
100A
2P-160A
HESP4850S100-H
30mm
2
/2AWG
125A
100A
2P-200A
HESP4855S100-H
30mm
2
/2AWG
130A
100A
2P-200A
HESP4860S100-H
30mm
2
/2AWG
135A
100A
2P-200A

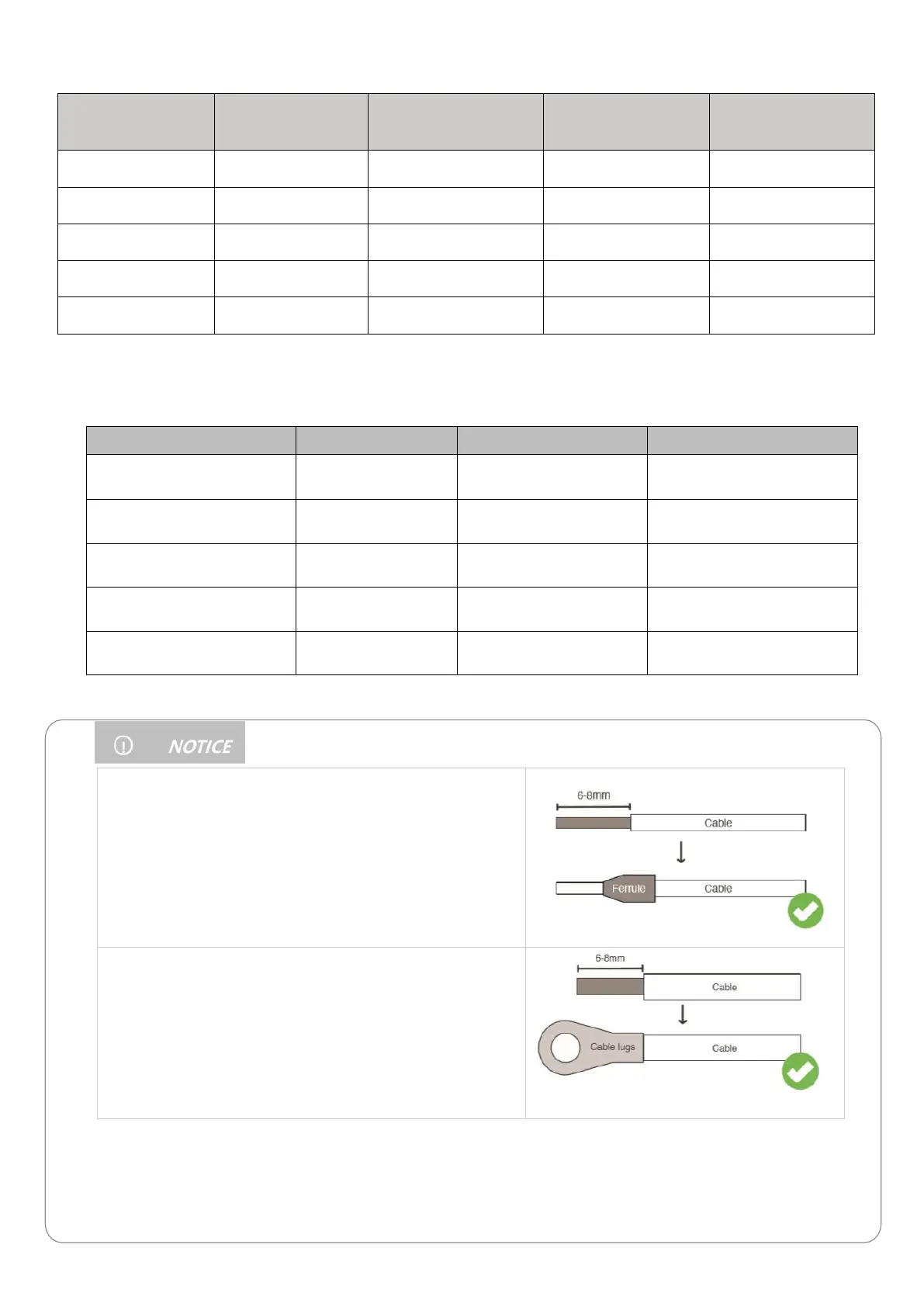

• PV INPUT、AC INPUT、AC OUTPUT
1. Use a stripper to remove the 6~8mm insulation
of the cable.
2. Fixing a ferrule at the end of the cable. (ferrule
needs to be prepared by the user)
• BATTERY
1. Use a stripper to remove the 6~8mm insulation of
the cable
2. Fixing cable lugs that supply with the box at the end
of the cable.
Model
Cable diameter
Output current
Circuit Breaker Spec
HESP4840S100-H
10mm
2
/7AWG
17.4A
2P-40A
HESP4846S100-H
10mm
2
/7AWG
20A
2P-40A
HESP4850S100-H
10mm
2
/7AWG
24A
2P-40A
HESP4855S100-H
10mm
2
/7AWG
24A
2P-40A
HESP4860S100-H
10mm
2
/7AWG
26A
2P-40A
