If you need to use the remote start/stop function of the generator with dry contact,
ensure that the generator has ATS and supports remote start/stop.
6. Communication

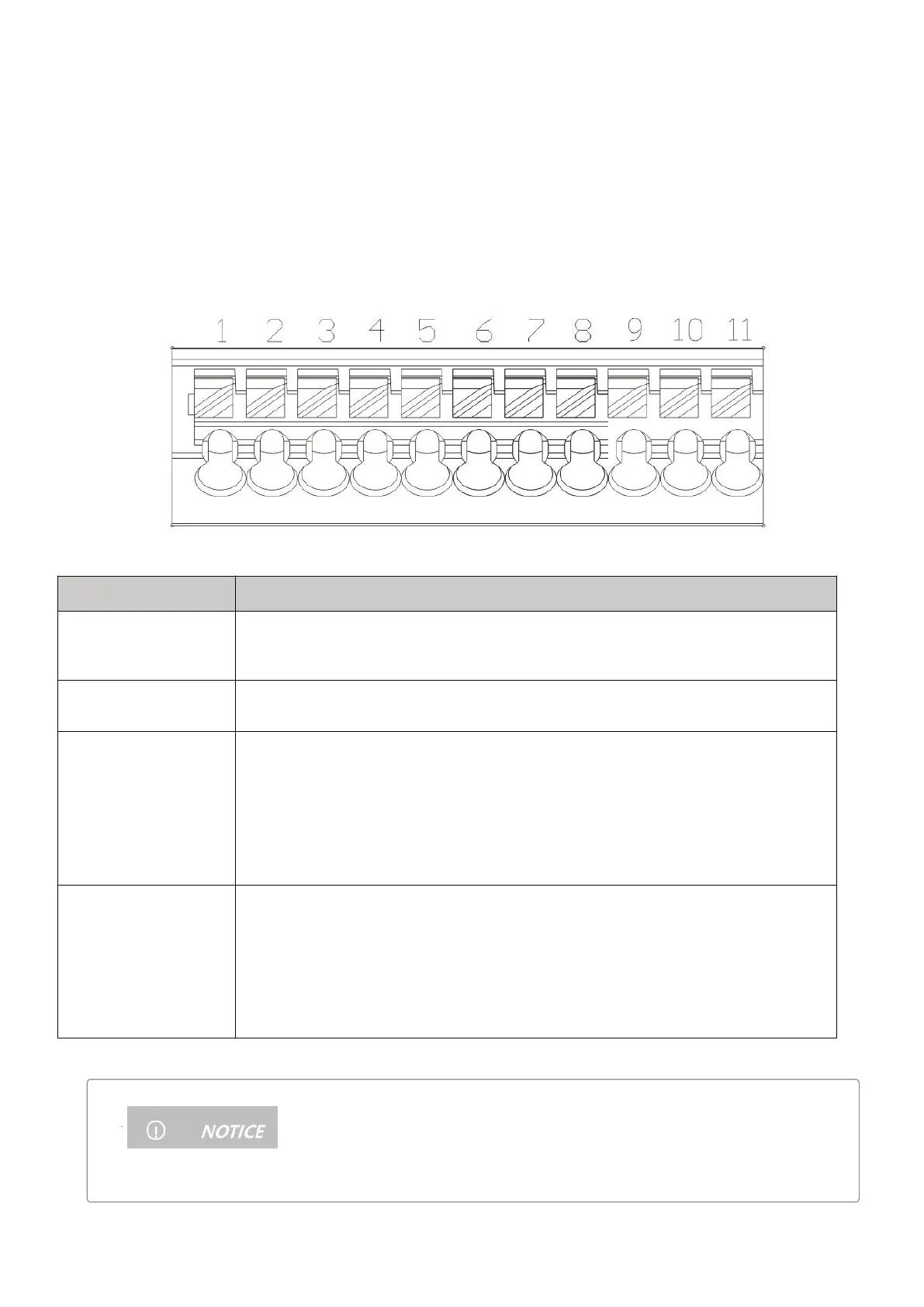

6.1、Dry contact
1. RSD power supply
2. Temperature sampling (reserved)
3. Generator remote start/stop
4.CT connection
PIN 1 is GND，PIN 5 is RSD 12V+
Temperature sampling
（reserved）
Pin 1 & Pin 4 can be used for battery temperature sampling compensation.
Generator remote
start/stop
6-7：NC 6-8:NO
Remote generator shutdown: Pins 6 to 7 are normally closed, and pins 7 to 8 are
normally open.
(Pin 6/7/8 output 125Vac/1A,230Vac/1A,30Vdc/1A)
