• The grounding cable should have a diameter of not less than 4 mm² and be as close as
possible to the grounding point.
4.7、Grounding connection

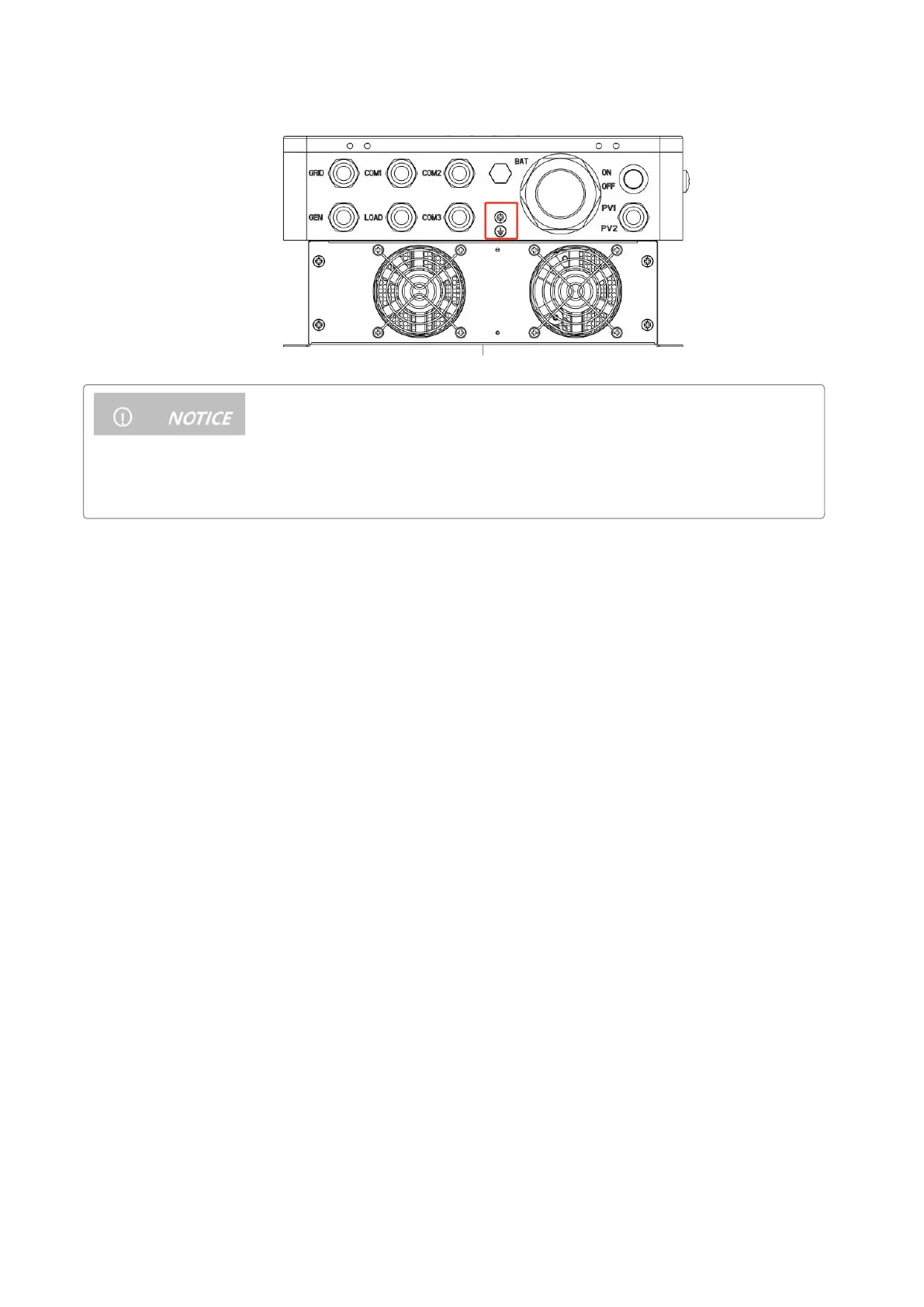

Please make sure the grounding terminal connect to the Grounding Bar.
4.8、Final assembly
After ensuring that the wiring is reliable and the wire sequence is correct, install the terminal protection
cover in place.
•
Step 1 : Close the circuit breaker of the battery.
• Step 2：Press the rocker switch on the bottom of inverter, the screen and indicators light up to indicate that
the inverter has been activated.
• Step 3：Sequential close of the circuit breakers for PV, AC input and AC output.
• Step 4：Start the loads one by one in order of power from small to large
