Sungrow PVS-16MH User Manual

5 Electrical Installation User Manual
26
10

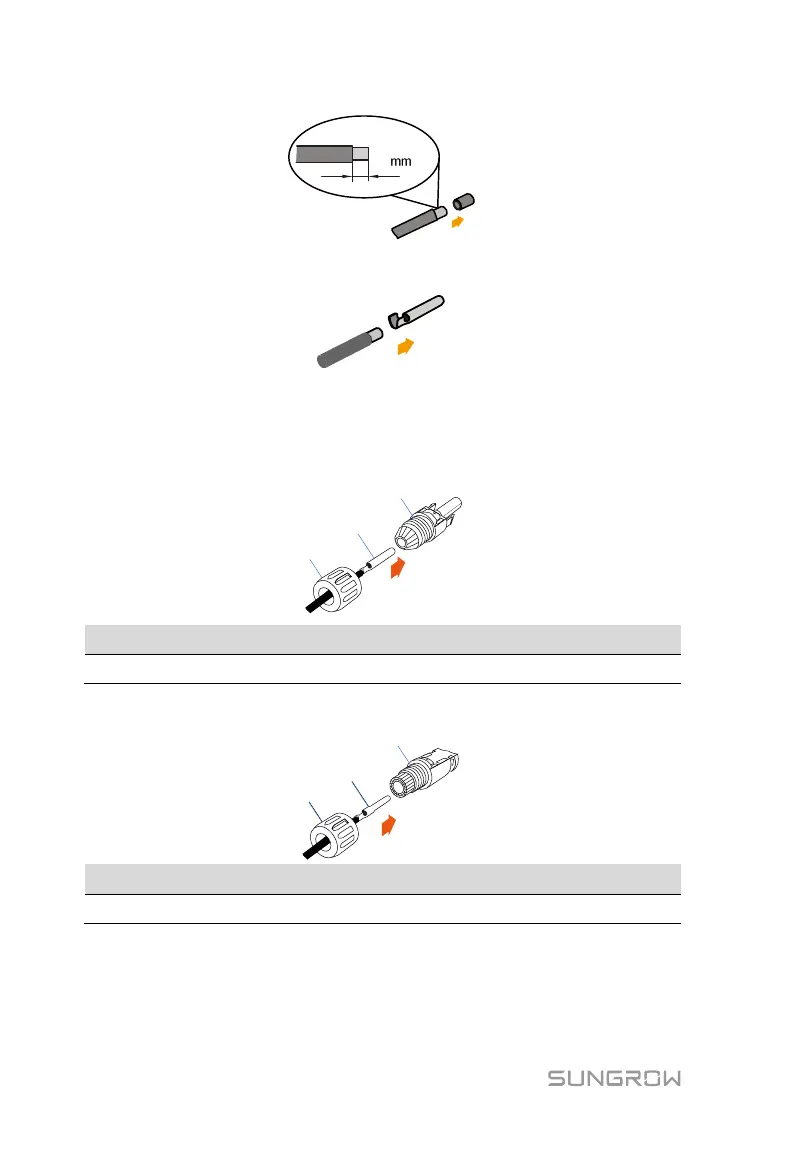

Step 2 Assemble the cable ends with crimp contacts by crimping pliers.
Step 3 Connect the cables according to the method illustrated below. Pull the
cable gently to make sure it is secured.
− Connect the positive input cable according to the figure below.
B
A
C
A
B
C
Positive input terminal
positive input cable
Sealing cover
− Connect the negative input cable according to the figure below.
A
B
C
A
B
C
Negative input terminal
negative input cable
Sealing cover
