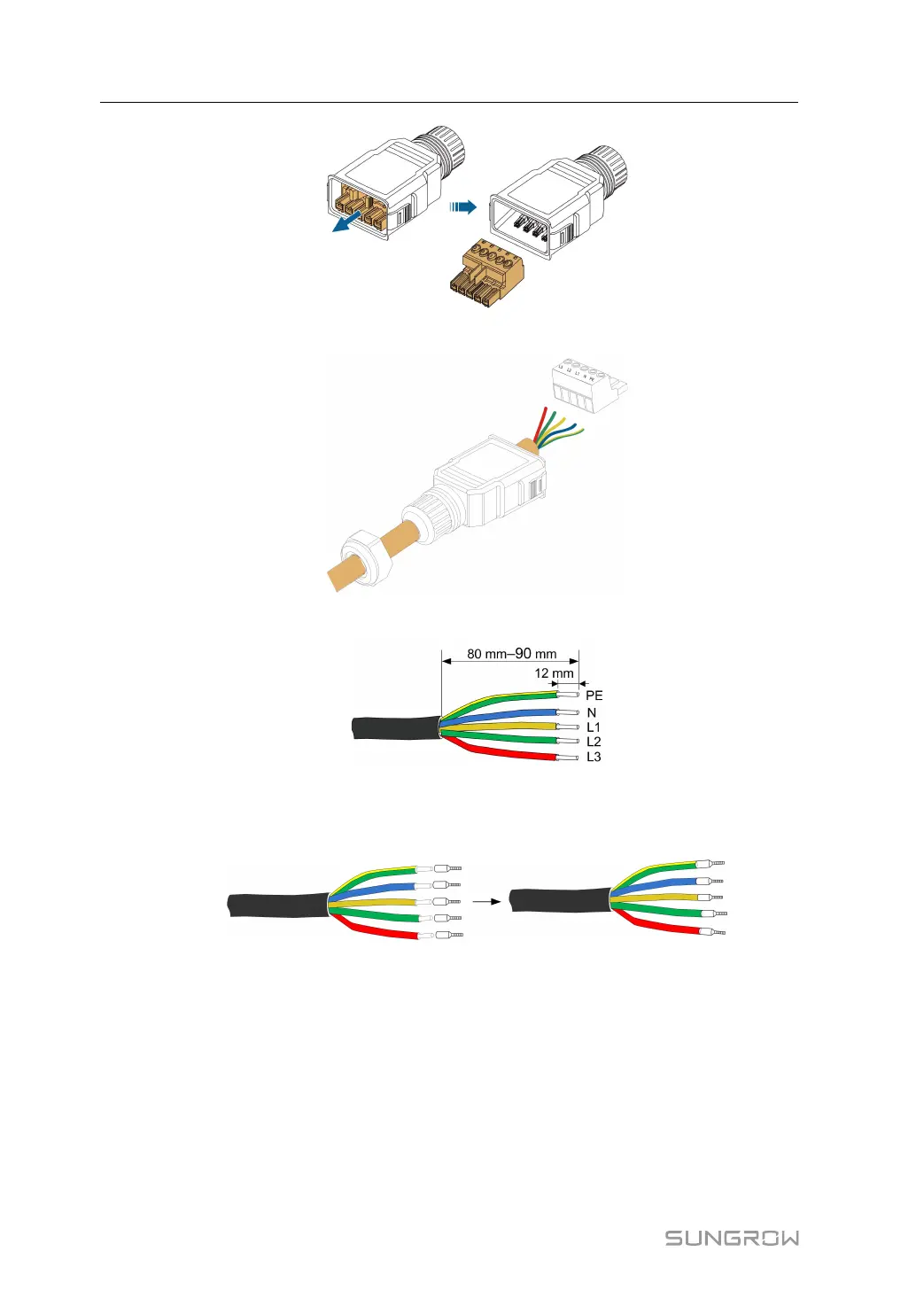

step 4 Thread the AC cable of appropriate length through the swivel nut and the housing.
step 5 Remove 80 mm–90 mm of the cable jacket and 12 mm of the wire insulation.
step 6 (Optional) When using a multi-core multi-strand copper wire cable, connect the AC wire
head to the cord end terminal (hand-tight). In case of single-strand copper wire, skip this
step.
step 7 Fix all the wires to the screw-type terminal according to the assignment and tighten to a tor-
que of 1.2 N•m–1.5 N•m with a screwdriver. Then push the terminal into the housing until
there is an audible click.
5 Electrical Connection User Manual
