41

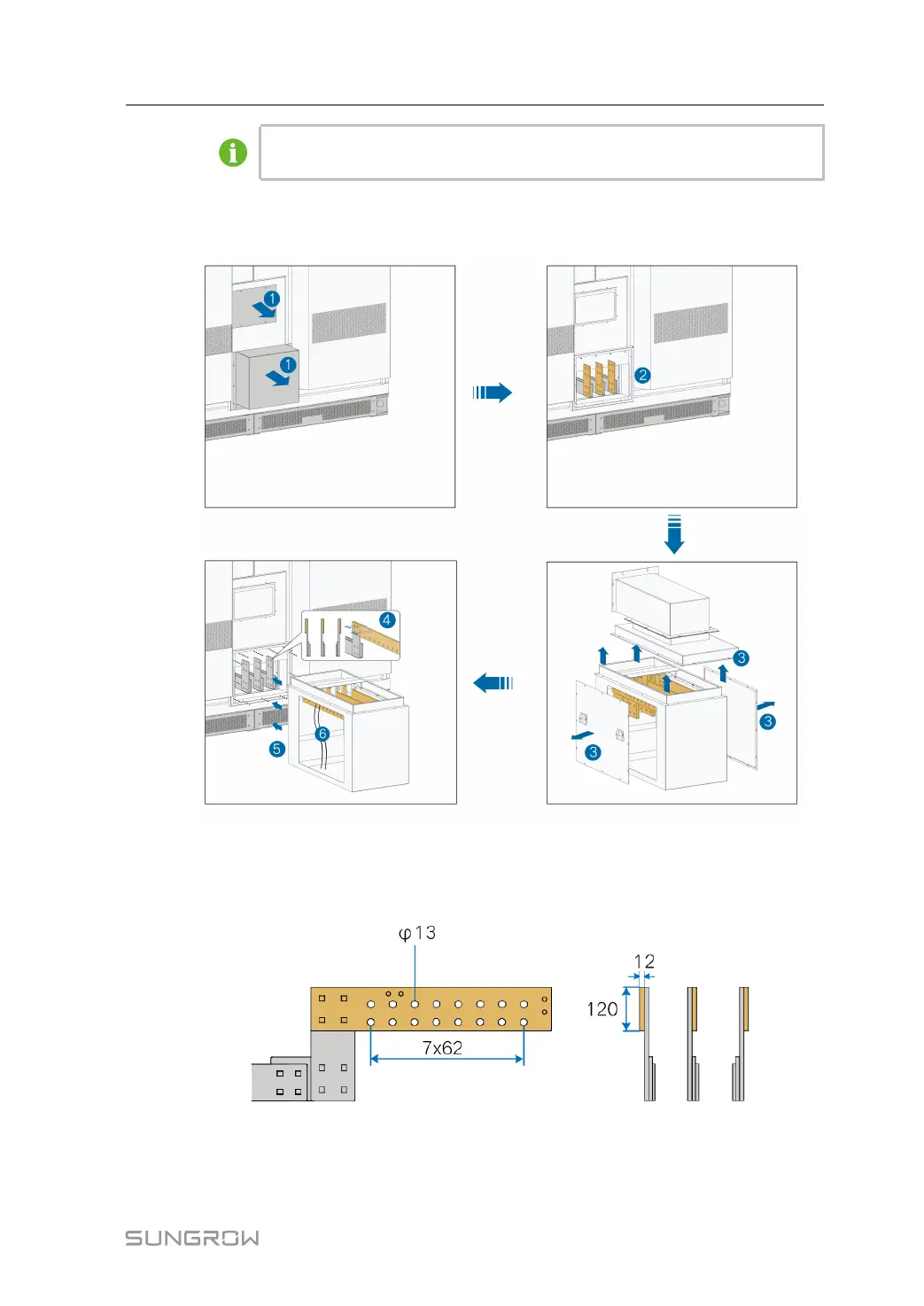

Strictly observe the direction of the copper bar, refer to "figure 6-4 Wiring
copper bar".
5 Fix the AC connection box with the inverter cabinet, tighten with the bolt : M5x12, and
the tightening torque: 6~8N.m/53~70lbf.inch.
AC Connection Area
After fixing, wiring can be performed. The sizes of connection copper bar are as shown in
the figure below.
figure 6-4 Wiring copper bar
Cable Requirements
• The maximum cross-sectional area of the aluminum/copper cable is 400mm
2
/750Kcmil.
System Manual 6 Electrical Installation
