step 8 Fasten the swivel nut.
- - End

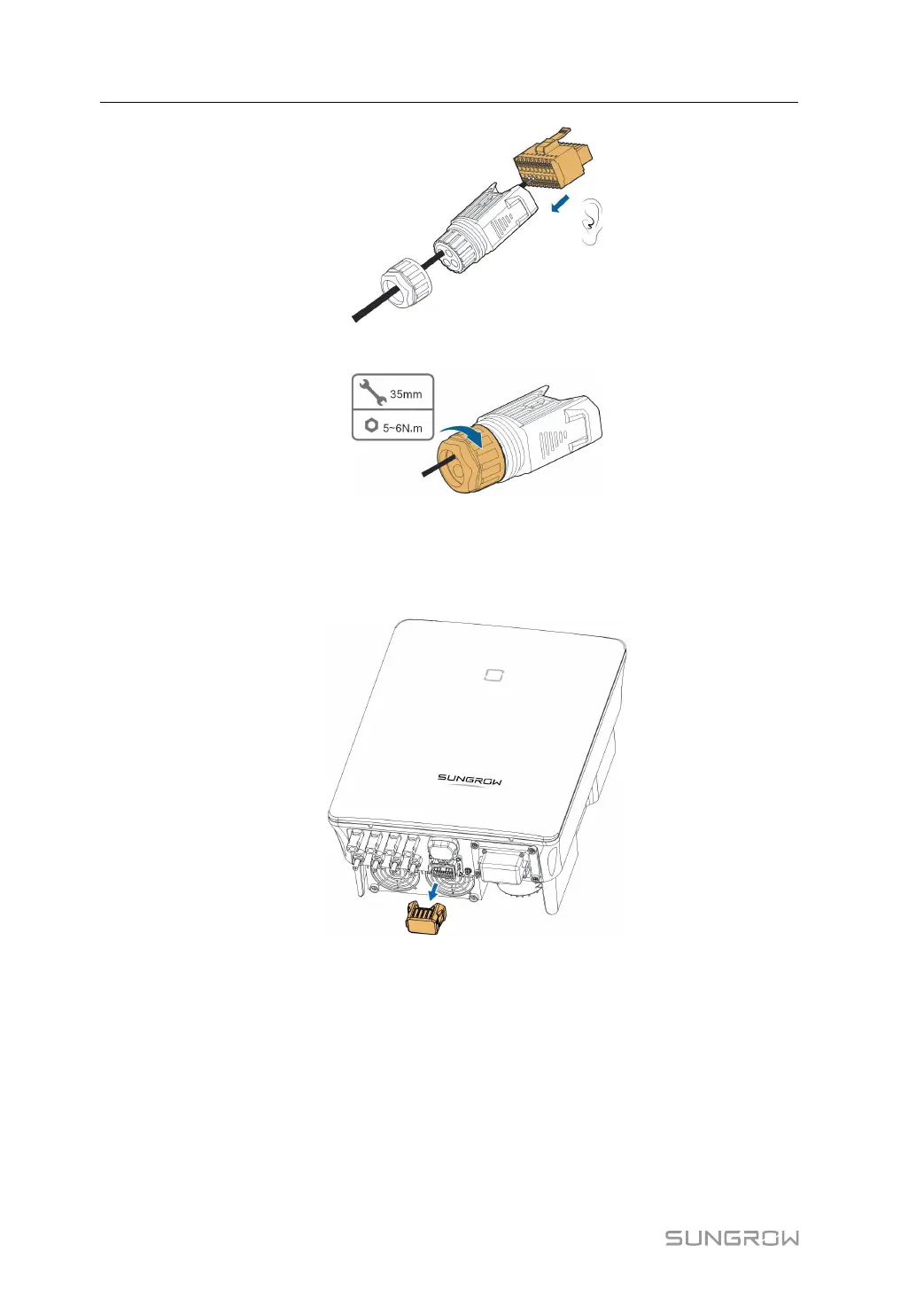

5.9.2 Installing the COM Connector
step 1 Remove the waterproof lid from the COM2 connector.
step 2 Insert the COM connector into COM2 terminal on the bottom of the inverter until there is an
audible click.
