36
Floating Grounding

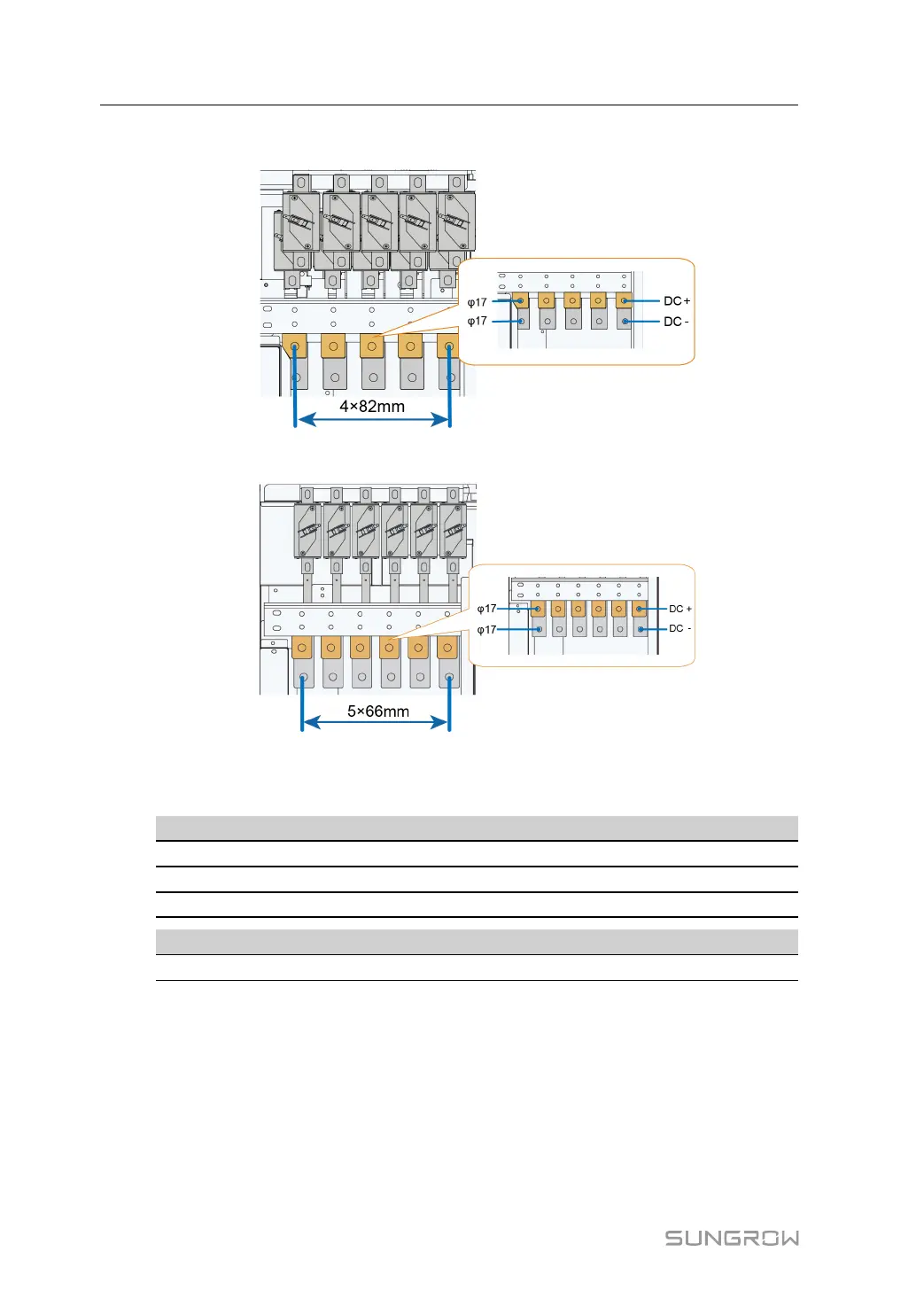

figure 6-4 5-way DC input(Single hole)
figure 6-5 6-way DC input
* The wiring area is subject to the actual product
Mark Discreption
DC+ DC side negative cable connection area
DC- DC side negative cable connection area
φ17 Copper bar diameter
Wiring hole Bolt Torque(N.m)
φ17 M16 119–140N.m
6.5.2 Installing Insulation Board before Connection (Optional)
Installing insulation board before cable connections.
step 1 Remove the four fixing screws on the insulation board with a screwdrive.
step 2 Move the insulation board upward, and hang it temporatily on the positive fuse.
step 3 Install the negative and positive DC cable.
step 4 Move the insulation board down to its original position and install the fixing screws.
6 Electrical Connection System Manual
