87
step 7 Slightly shake it by hand to determine whether it is installed firmly.
- - End
6.10.2 WLAN Communication

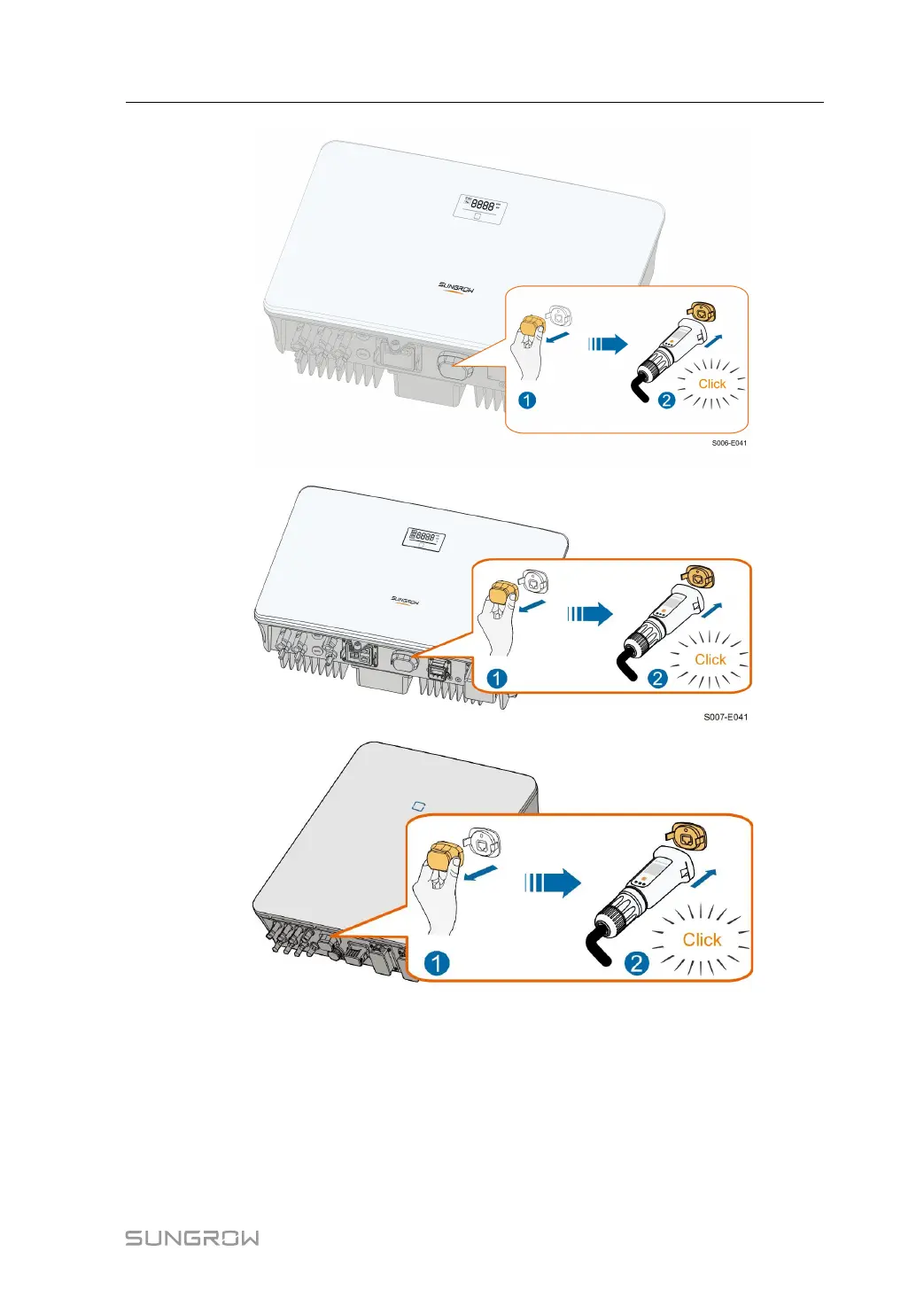

step 1 Remove the waterproof lid from the COM1 WLAN terminal.
step 2 Install the module. Slightly shake it by hand to determine whether it is installed firmly, as
shown below.
User Manual 6 Electrical Connection
To Next Page
