Sungrow SH3K6 Quick User Manual

III

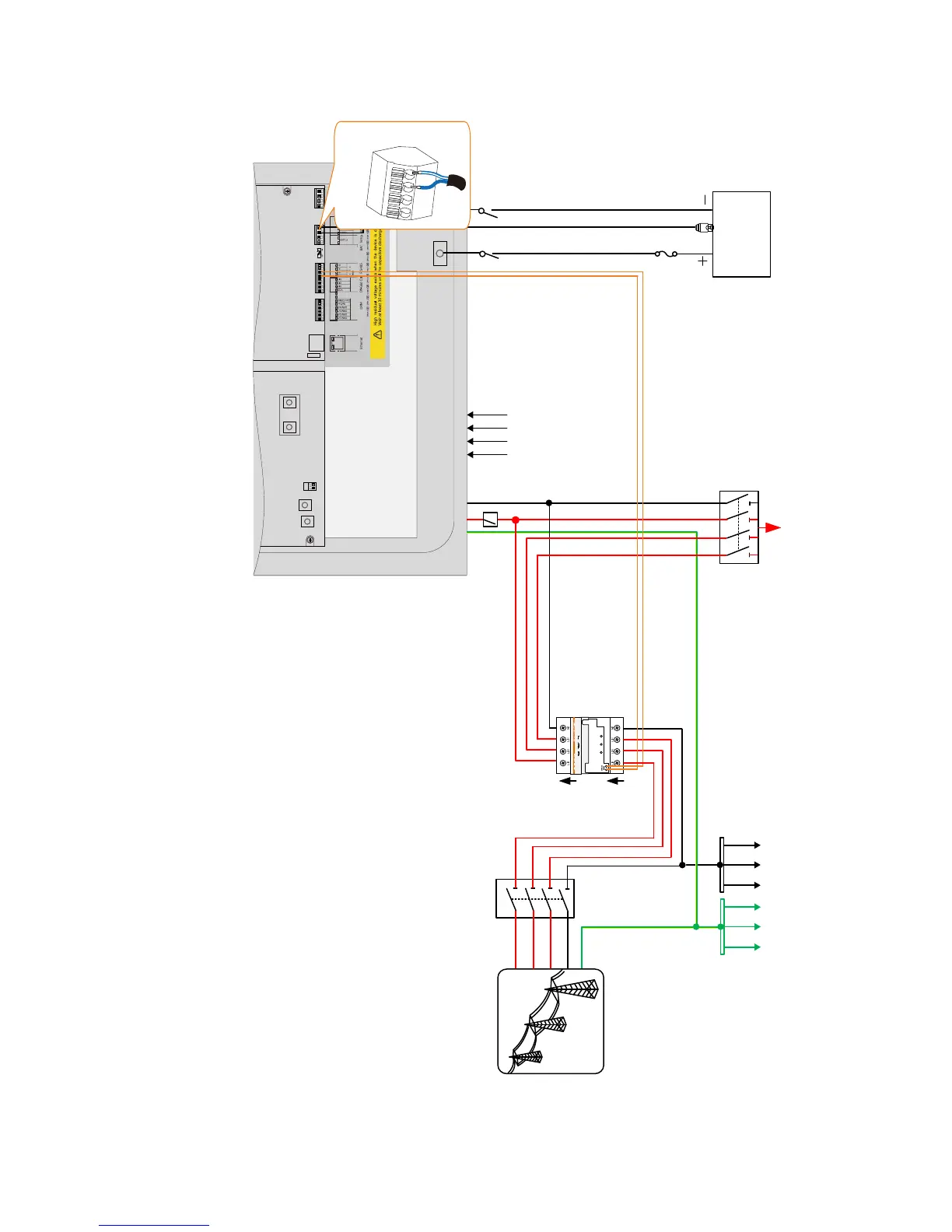

Wiring diagram for a three-phase system with a Li-ion battery (CAN communication)
※
Installation of the copper is required in case of parallel
PV input.
L3
N
PE
PE bar Neutral bar
Home appliance
Main Switch
AC circuit breaker
Utility Grid
Copper
※
L1
L2
IN
OUT
A2 B2
Fuse (optional
)
Li-ion
battery
CANH
CANL
SUNGROW
meter
A
B
Load side
Grid side
Inverter inside
PV1 PV2
CANH
CANL
BAT
_Com
.
