sunjoe SPX3000-RM - Assembly (continued); Detergent Bottle Insertion; Detergent Tube Connection; Spray Wand Protector Assembly

7

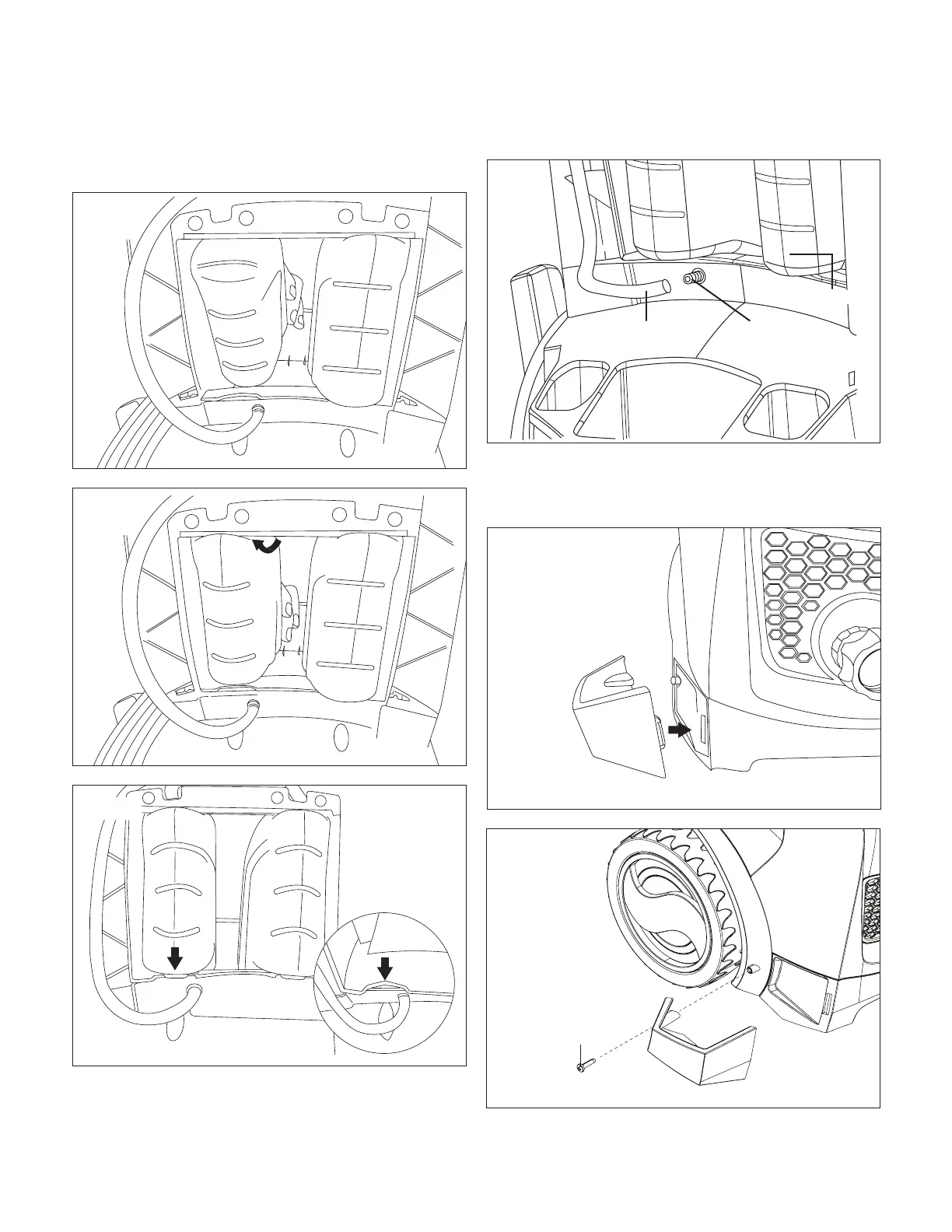

5. Insert the detergent bottles (top end rst) under the ridge
of their designated storage compartment (Figs. 4 & 5).
Then snap the bottom of the bottles into the V-shaped
grooves to secure them in place (Fig. 6).
6. Connect the PVC detergent tube to the detergent
connection (Fig. 7).
7. To assemble the spray wand protector, rst snap the tab
into the slot located at the bottom left side of the unit, and
then secure it in place with one small screw. (Figs. 8 & 9).
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Detergent
connection
Detergent tank
Detergent tube
Fig. 8
Fig. 9
small screw
