Q. MAIN AMP OUT - This 1/4 inch, unbalanced,
TS, output jack is designed to send a preamp line
level signal from your “Main” Model T amplifier to
another Model T amplifier. This jack is used for
chaining multiple Model T amplifiers together and
increasing your on stage volume. Do so by inserting
a 1/4” cable from the MAIN AMP OUT jack into
another Model T’s EXT AMP IN jack.
R. EXT AMP IN - This 1/4 inch, unbalanced, TS,
input jack is designed to receive a preamp line level
signal from another Model T amplifier. This jack is
used for chaining multiple Model T amplifiers
together and increasing your on stage volume.
S. FOOTSWITCH (INCLUDED) - Plug-in connection
for the footswitch. The footswitch allows the remote
On / Off selection of the EFFECTS LOOP and
switching of the two channels. Using the footswitch
overrides the rear panel effects loop switch and the
front panel channel select switch .
T. XLR LINE OUT - This balanced XLR male line level
output is designed to feed the Model T’s signal to an
external power amplifier or main house mixer.
U. EXTERNAL SPEAKER JACK - Plug-in
connection for an additional speaker enclosure. This
jack is wired in parallel with the main speaker jack
and must ONLY be used in conjunction with the main
speaker jack. If this jack is used without the main
speaker jack, no sound will be produced.
V. MAIN SPEAKER JACK - This is the main plug-in
connection for your speaker enclosure and should
always be used as the primary connection. If your
Model T is in the on and ready to play position, make
sure a load of at least 4Ω is present. Failure to do so
may result in your Model T being damaged by using
an improper impedance load. As a rule of thumb,
ALWAYS connect or disconnect any speaker
enclosure to your Model T with the power off.
W. LOAD IMPEDANCE - This switch allows the
selection of different impedance loads for your
loudspeaker enclosure(s). Make sure to match the
total speaker’s load impedance to the load
impedance selector switch setting. Failure to do so
may result in your Model T being damaged by using
an improper impedance load.
16Ω 8Ω 4Ω
Q
R
S
T
U
V
W

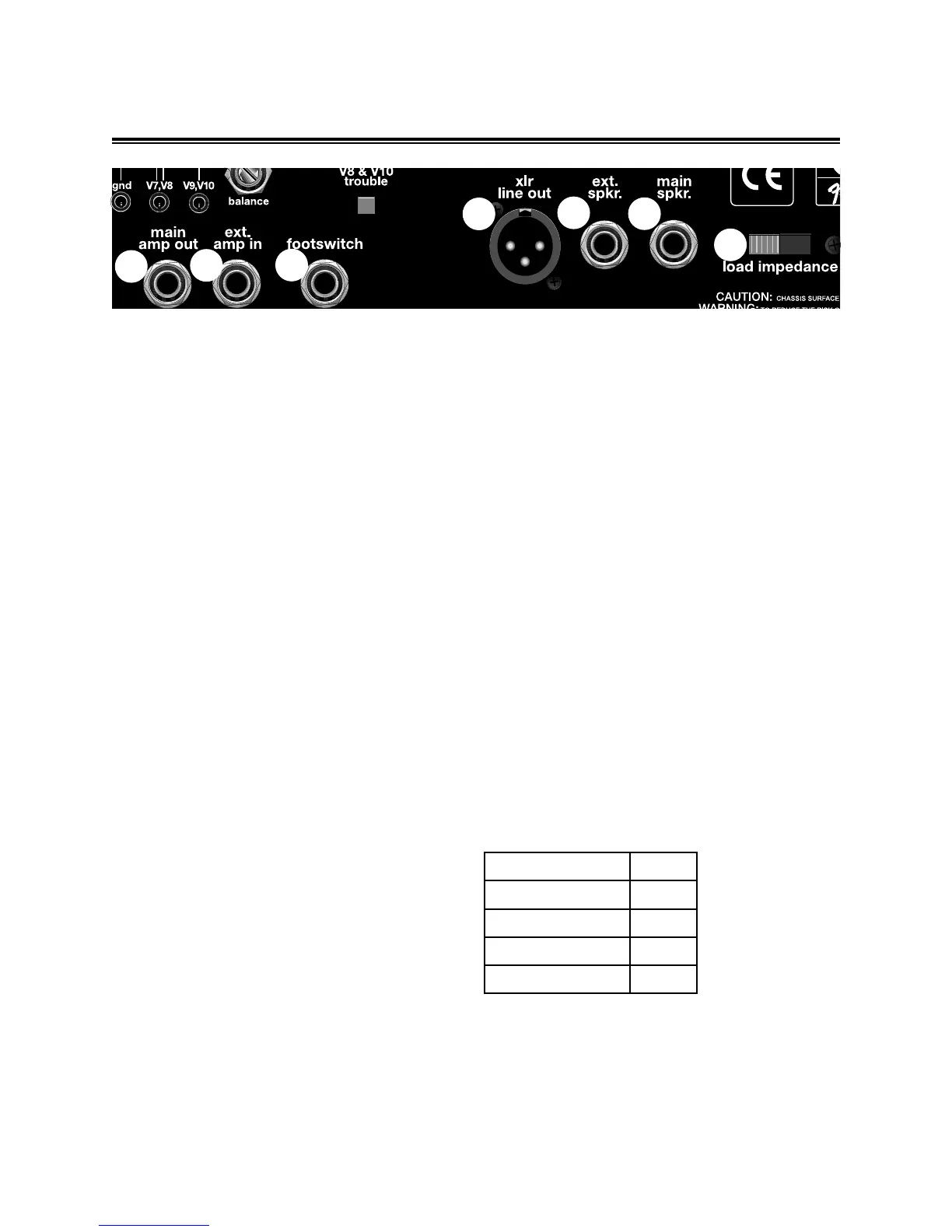

MODEL T REAR PANEL FUNCTIONS, CON’T
Speaker Cabinets
1 16Ω Cabinet
2 16Ω Cabinets
1 8Ω Cabinet
2 8Ω Cabinets
8Ω
LoadΩ
4Ω
8Ω
16Ω
