Sunny SF-E3865 - ASSEMBLY INSTRUCTIONS

6
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with
parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-
90SUNNY (877-907-8669).

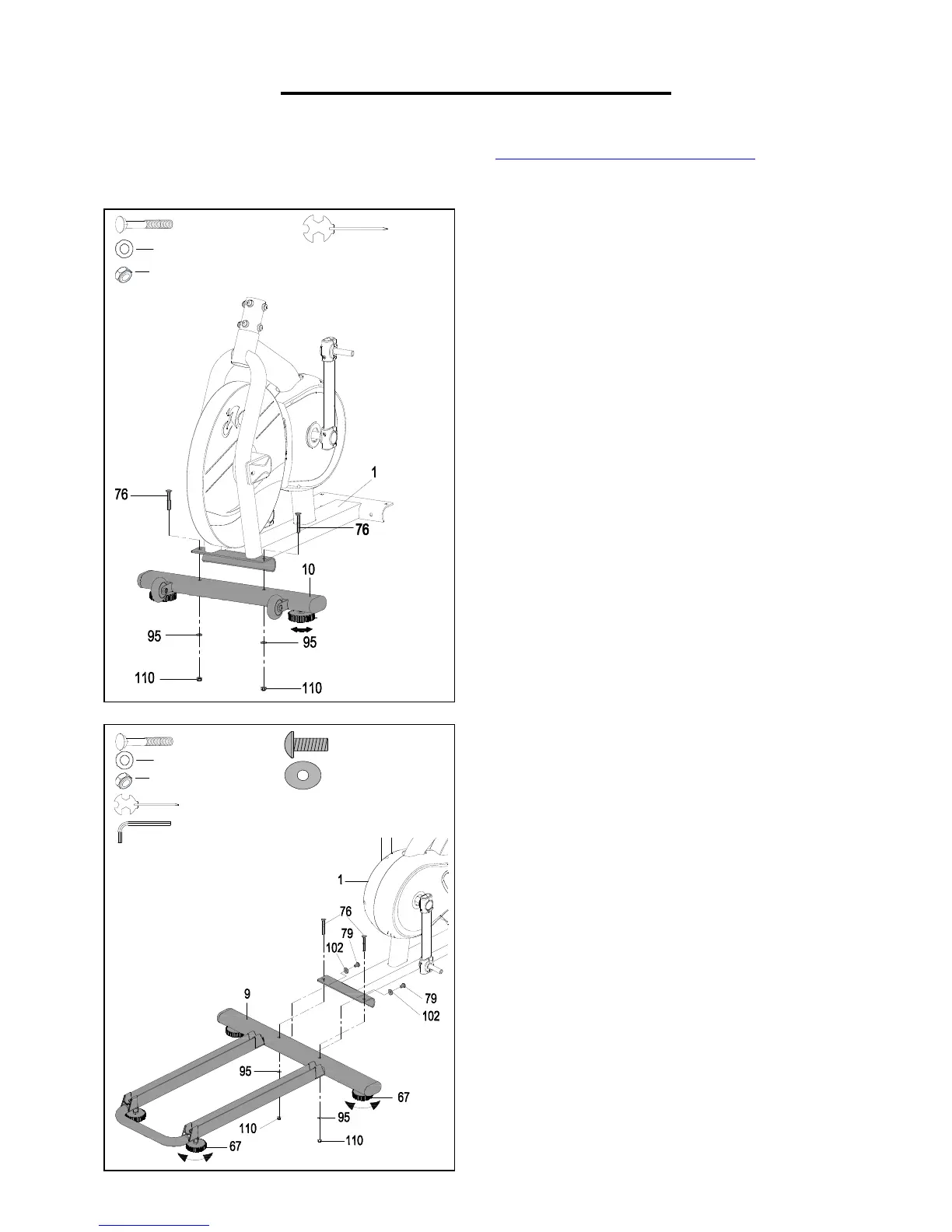

STEP 1:
Note: We recommend having two people to
do the assembly.
Attach the Front Stabilizer (No. 10) to the
Main Frame (No. 1) using 2 Carriage Bolts
(No. 76), 2 Washers (No. 95), and 2 Nylon
Nuts (No. 110). Tighten and secure with
Spanner (No. C).
-#76 M8*55 2PCS
-#95 Φ 8* Φ 16*1.5T 2PCS
-#C S13 S14 S15 1PC
-#110 M8 2PCS
-#79 M8*20 2PCS
-#76 M8*55 2PCS
-#95 Φ 8* Φ 16*1.5T 2PCS
-#110 M8 2PCS
-#C S13 S14 S15 1PC
-#102 Φ 8* Φ 21*2.0T
2PCS
--#A S5 1PC
STEP 2:
Remove 2 Hex Socket Bolts (No. 79) and 2
Curved Washers (No. 102) from the Rear
Stabilizer (No. 9).
Attach the Rear Stabilizer (No. 9) to the
Main Frame (No. 1) using 2 Carriage Bolts
(No. 76), 2 Washers (No. 95), and 2 Nylon
Nuts (No. 110). Tighten and secure with
Spanner (No. C). Then, screw in 2 Hex
Socket Bolts (No. 79) and 2 Curved
Washers (No. 102) to the Rear Stabilizer
(No. 9) that were removed. Tighten and
secure with Allen Wrench (No. A).
Note: If the floor is not even, please adjust
the Adjustable Stands (No. 67) to stabilize
the elliptical.
