SunPowerCorporationDocument#001‐69178Rev**
7
5. Carefully hang the inverter on the upper part of the bracket so that the hooks located
at the rear of the inverter hang over the bracket.
6. Verify that the inverter is level.
7. Remove the front cover of the inverter by unscrewing the two cover screws located at
the bottom of the inverter.

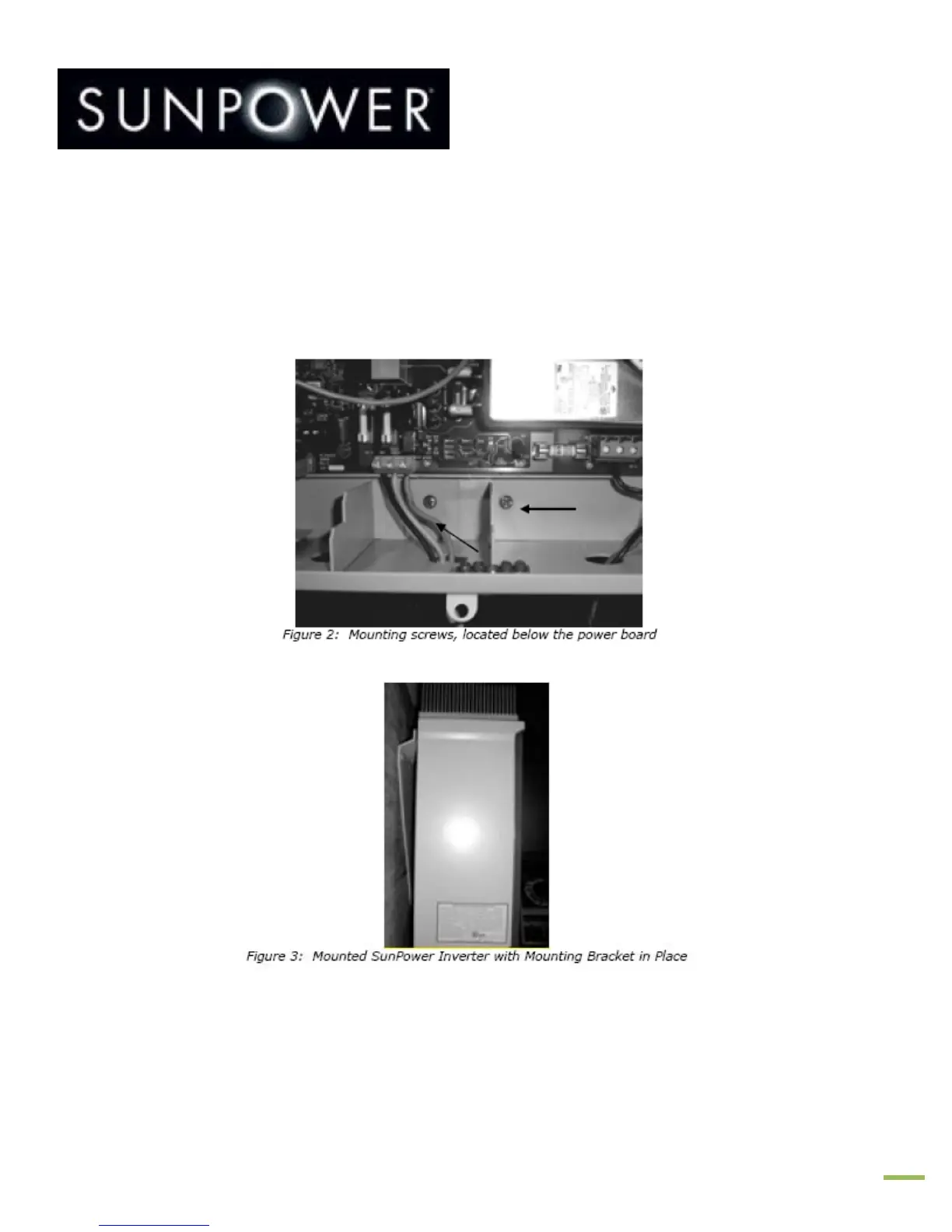

8. Locate the two inverter mounting holes below the power board. (See Figure 2) Insert
the two mounting screws through the inverter and tighten securely.
PLEASE NOTE: Remove the lower inverter cover to allow for electrical connection in section 2.3
