4.3 Installation space
Please observe the space requirements indicated below for optimal operation and maintenance.

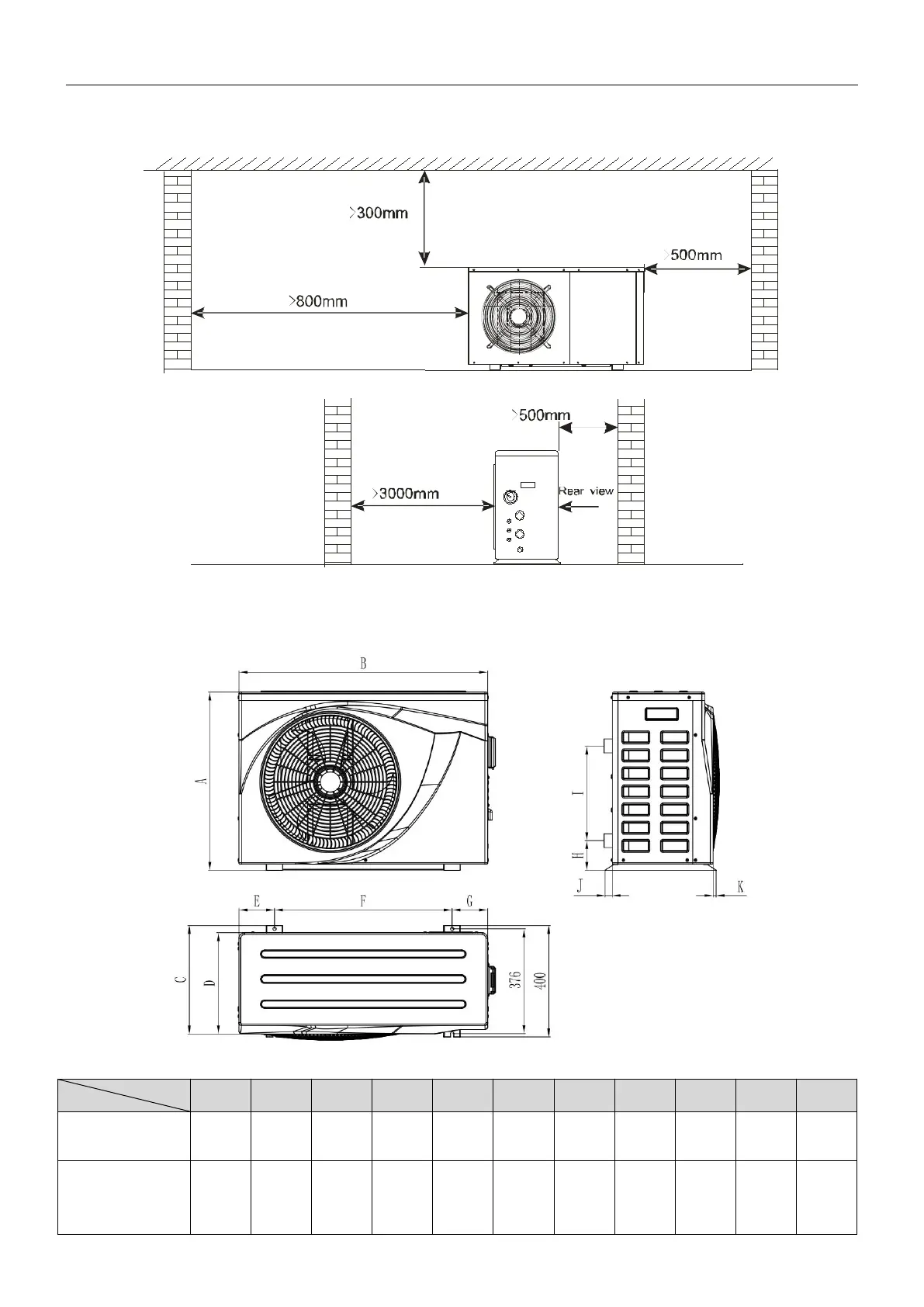

Figure 2 Horizontal installation space requirements(mm)
4.4 Heat pump dimensions
Figure 3 Heat pump dimensions
A
B
C
D
E
F
G
H
I
J
K
BYC-007TF1
BYC-010TF1
591
836
379
335
98
640
98
107
290
26
11
BYC-013TF1
BYC-017TF1
BYC-021TF1
641
896
389
363
128
640
128
107
340
26
11
