5.2 Instruction
5.2.1 Marginal data

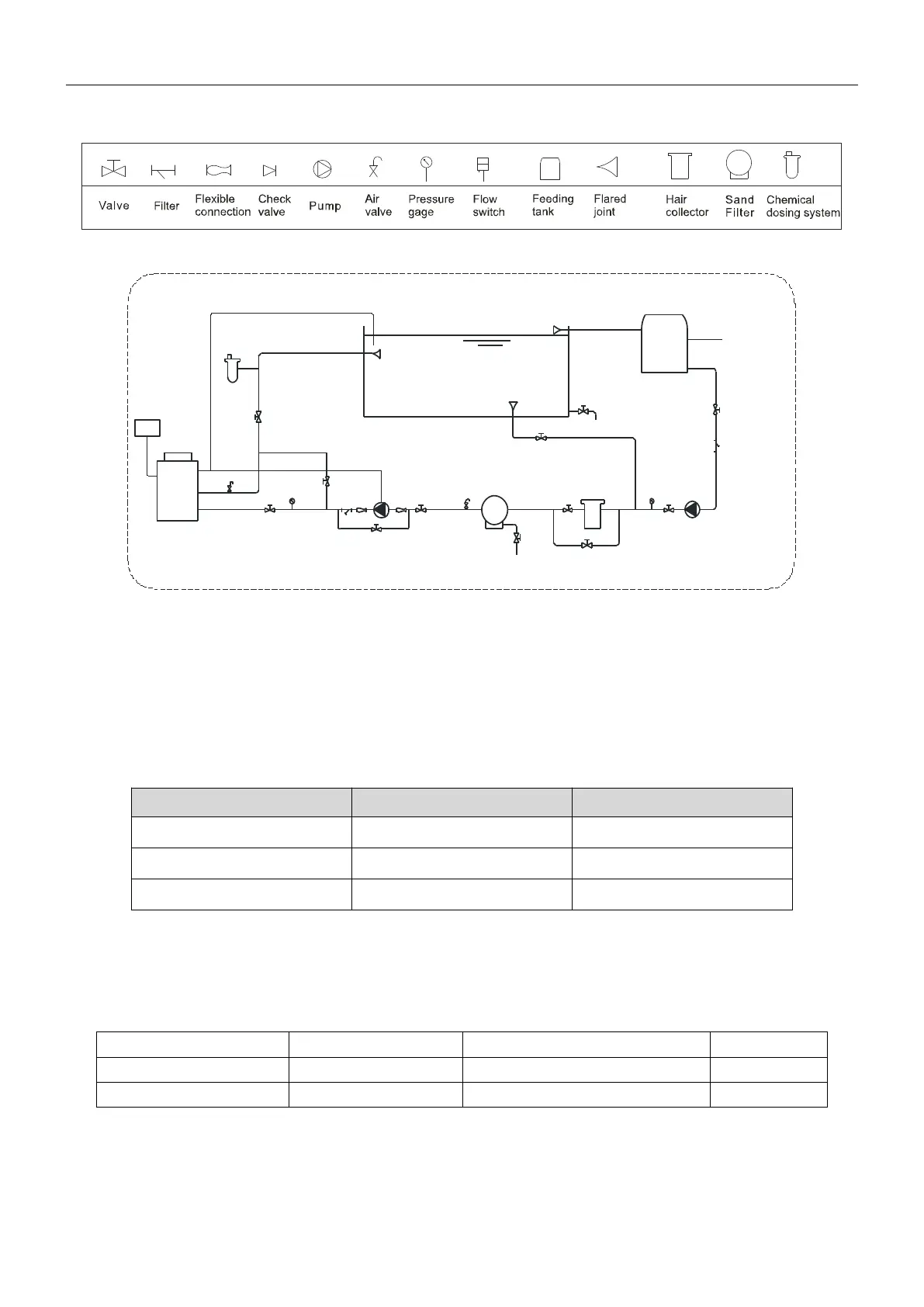

5.2.2 Pipeline installation diagram
Controller
Heat
Pump
Water temp sensor wire .
Swimming Pool
Pump signal wire
Pump
Drainage
Drainage
Feeding water
Figure 7 Diagram（Single unit for reference）
●The one-way valve is suggested for each unit, to prevent the water back flow.
●The system can be combined with multiple units, but should be controlled by each unit independently.
●Regarding the installation of backup pump, maintenance valve and temperature measure point, please
consider it yourself.
●All pipes and valves of the unit need the heat preservation.
5.2.3 Selection of the water pipes
The swimming pool heat pump adopt the titanium heat ex-changer, can connect the swimming pool directly,
but must install a water filtration equipment before water go into heat pump, the filter meshes is about 40
meshes.
Main pipe diameter selection of the parallel connected multiple units (example)
●The pipe press and flow rate should be calculated before the diameter selection, the range of pressure
drop is 0.3
〜
0.5 kgf/cm2(3
〜
5m
）
the range of head pipe flow rate is 1 .2
〜
2. 5 m/s.
●The hydraulic calculation should be made after the selection of pipe diameter, if the resistance is more
than pump head, then need to choose a more power pump, or choose a bigger pipe.
