4.4 Heat pump unit size

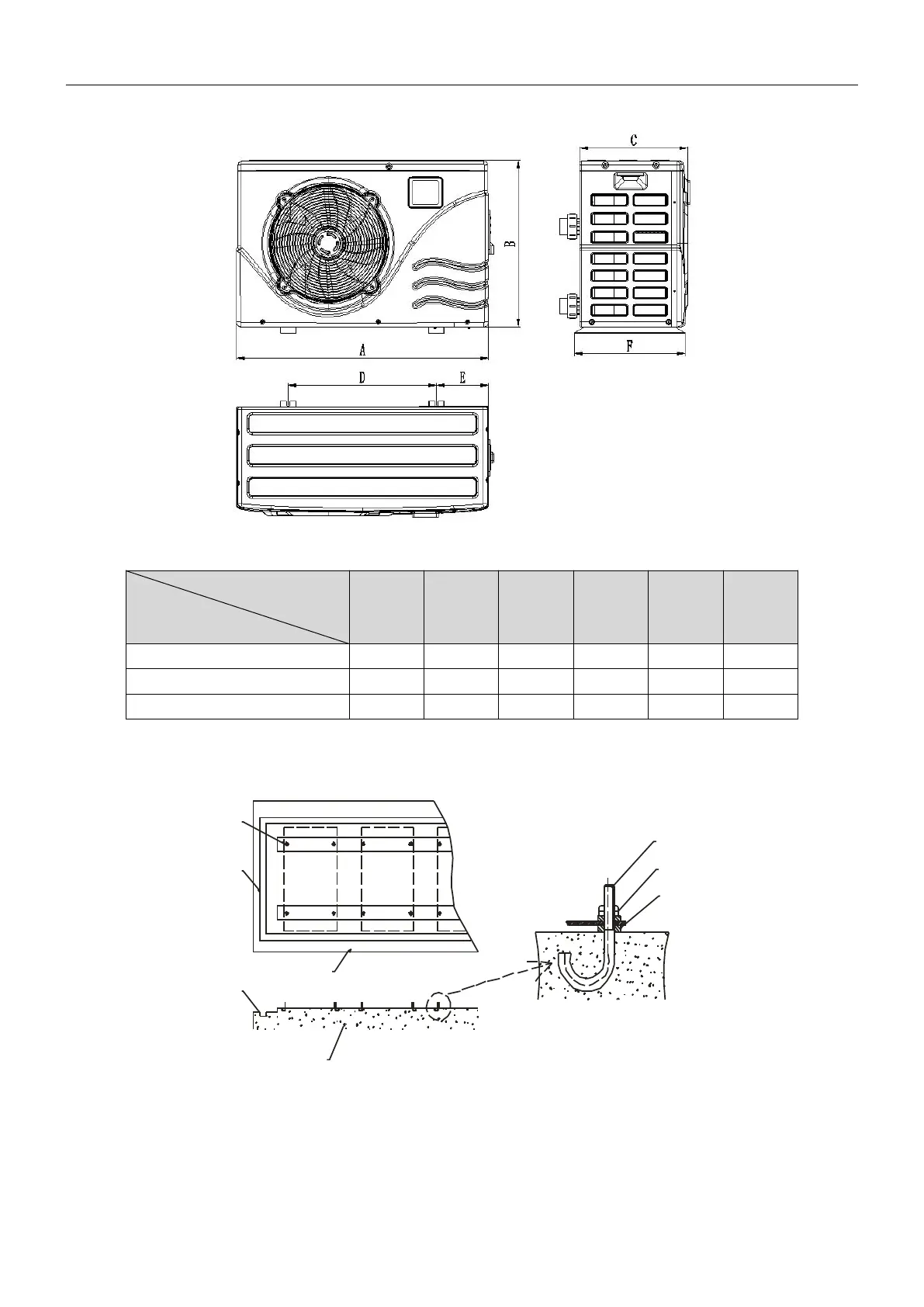

Figure 3 Horizontal type heat pump size
4.5 Reserve the installation base for the heat pump
Please refer to Figure 4.
A n c h o r b o lt
Drainage tray
Heat Pump
Installation base
Concrete
Anchor bolt
Screw nut/washer
Shock absorb
Heat Pump
Drainage tray
Figure 4 Reserved installation base
4.6 Hoisting attention
●Please use four or more soft lifting belts to move the sets Figure 5.
●Please use protective plate on the surface of the sets when moving, to avoid scratch and deformation.
