SIM7090G EVB Kit User Guide V1.00
www.simcom.com
3.5 USB Interface
EVB USB interface (A) can also provide 5V power supply. This power supply is stepped down to 3.8V by
LDO and then supplies power to VBAT of the module.
This port is the USB2.0 interface of SIM7090G.
Figure 6: Micro USB Port

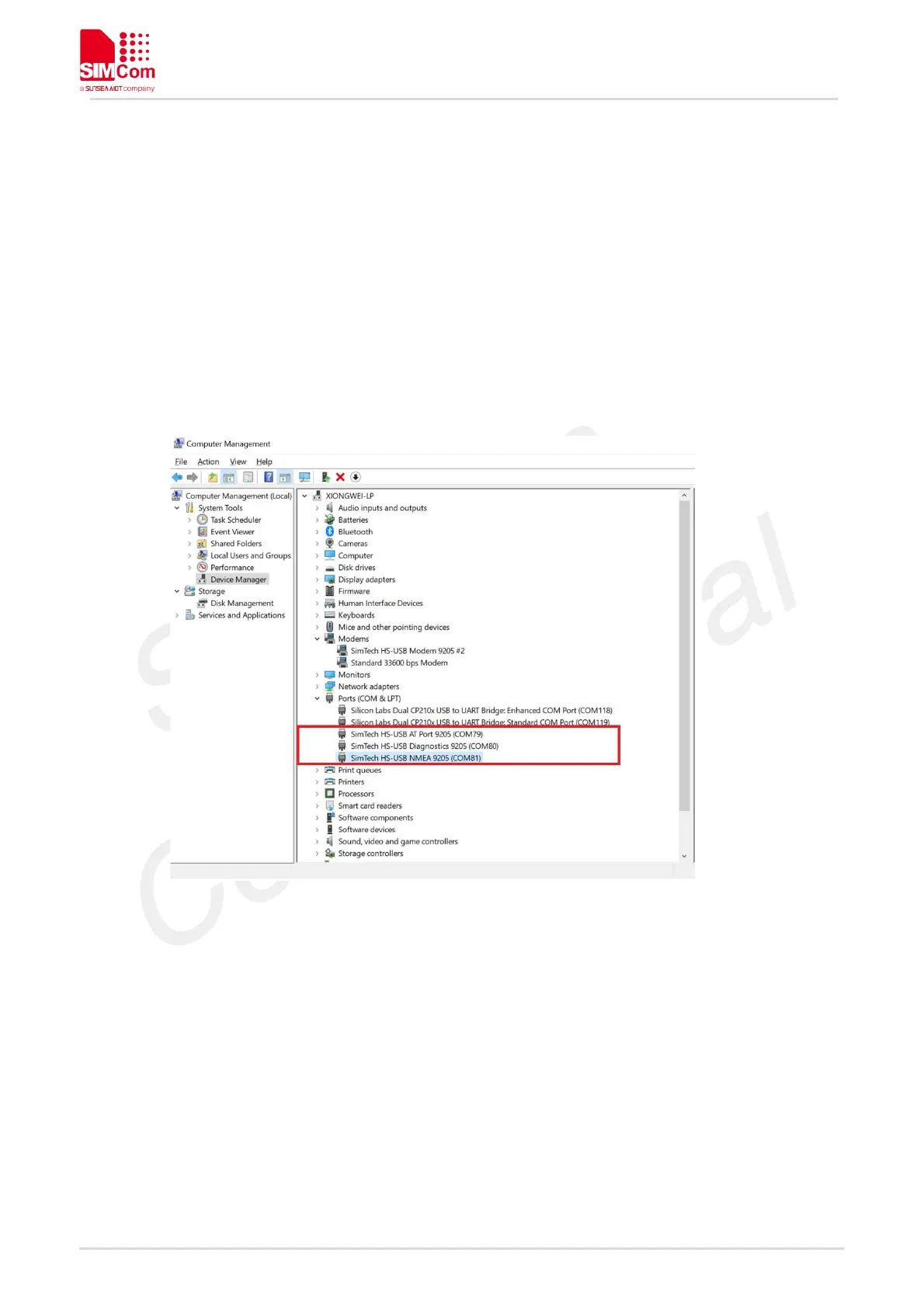

HS-USB AT Port 9205 is used for AT communication.
HS-USB Diagnostics 9205 is used for software debug or RF tool connection.
HS-USB NMEA 9205 is used for GNSS NMEA log output.
