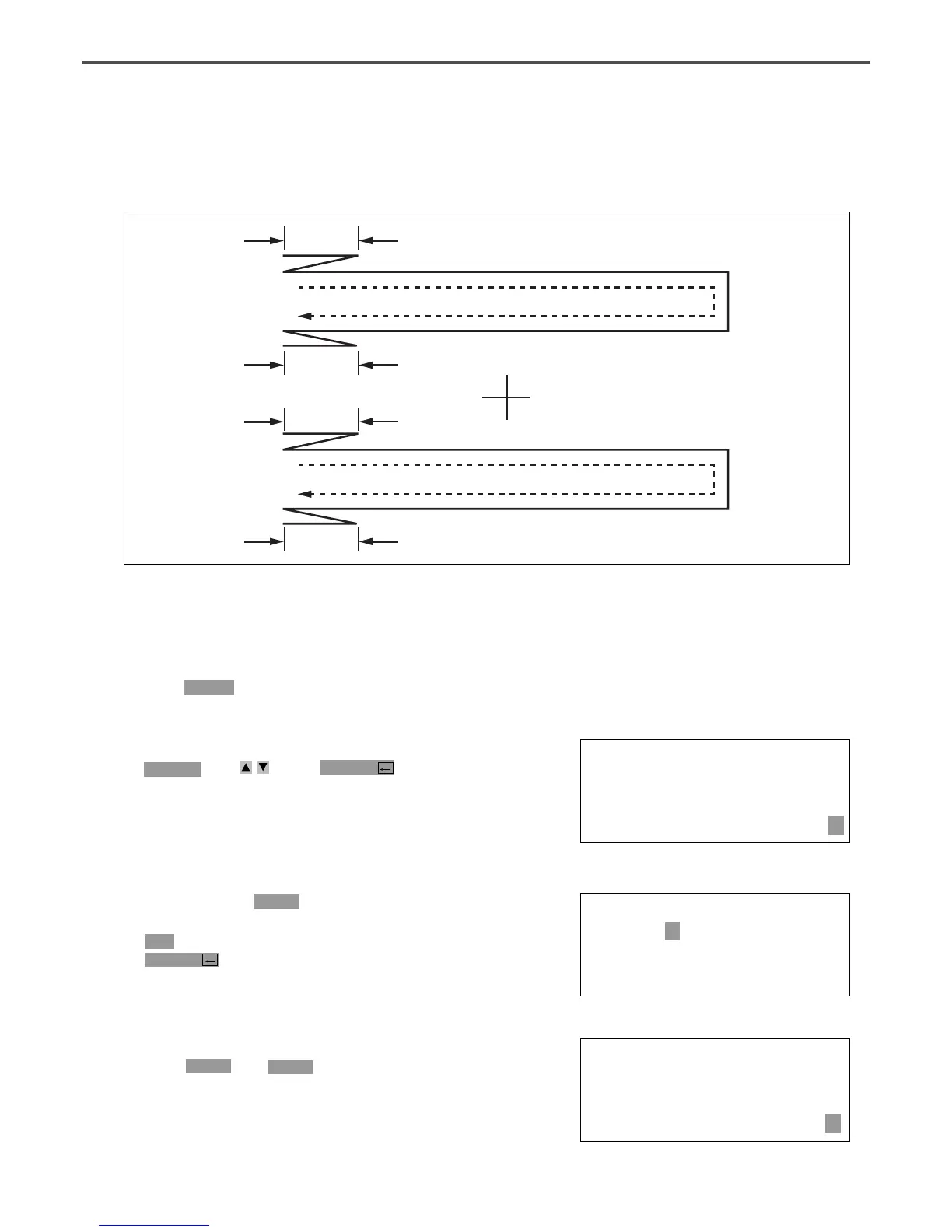

3-11) Automatic Back Tack(B/T) Inserting Function
You can apply automatic back tack inserting function for several pattern.
A. Insert USB flash drive containing the pattern to
insert automatic back tack.
B. Press MODE key.
Initial BackTack
End BackTack
Initial BackTack
End BackTack
C. After moving to “2. Program” menu by using
direction key , press ENTER key. At this
time, the upper feed plate comes down and
moves to the original point.
ORIGIN
X:00000A N:00000
Y:00000A
Function Code?
014:PTRN READ
NO :001
D. After pressing READ key, input the pattern
number to insert automatic back tack by using
digit key and read in the pattern by pressing
ENTER key. (For example, input [0][0][1] to
read the pattern number 001.)
LINE
X:-0160A N:00040
Y:00039A
Function Code?
E. Go to the location that pattern data ends by
using FORW and BACK key.
Origin Point of Machine
