14

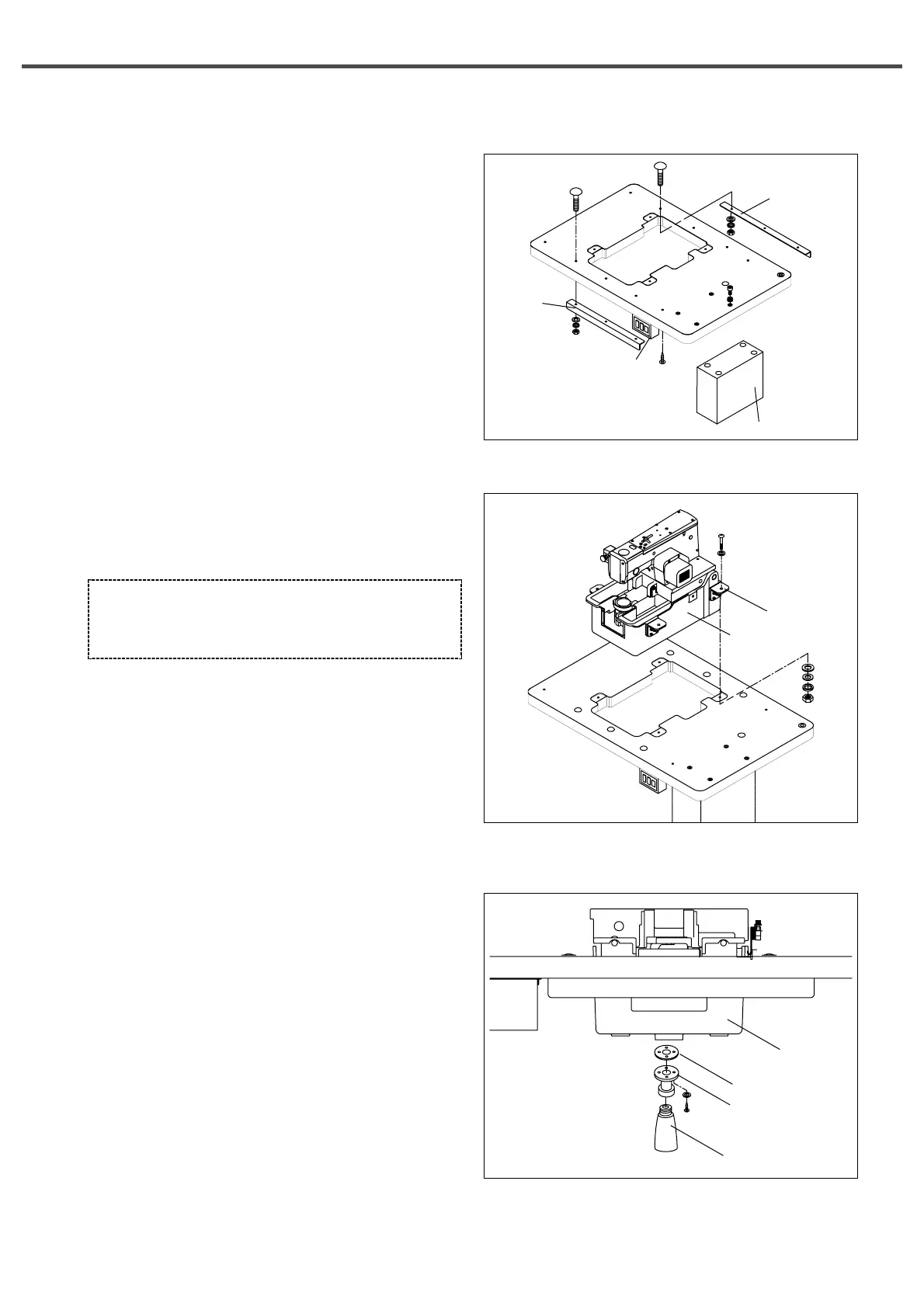

[ Fig. 2 ]
C. Place the machine on top of the table.
D. Place the four brackets② attached to the bed base① on
the marked positions on the table and fix them using
bolts, cushion rubbers, washers, spring washers and nuts.
[ WARNING ]
To prevent safety accidents, at least two persons shall
handle the machine to place it on top of the table.
①
①
②
③
④
②
[ Fig. 3 ]
4) Assembling accessories
A. Fix the rubber washer②, the oil container holder③, and
the oil container④ below the bed base①.
[ Fig. 1 ]
3) Placing the machine on top of the table
A. Attach the table support plate(front)① and the table
support plate(rear)② to the table with bolts, washers and
nuts.
B. Attach the control box③ and the power switch④ to the
table.
①
④
②
③
To Next Page
