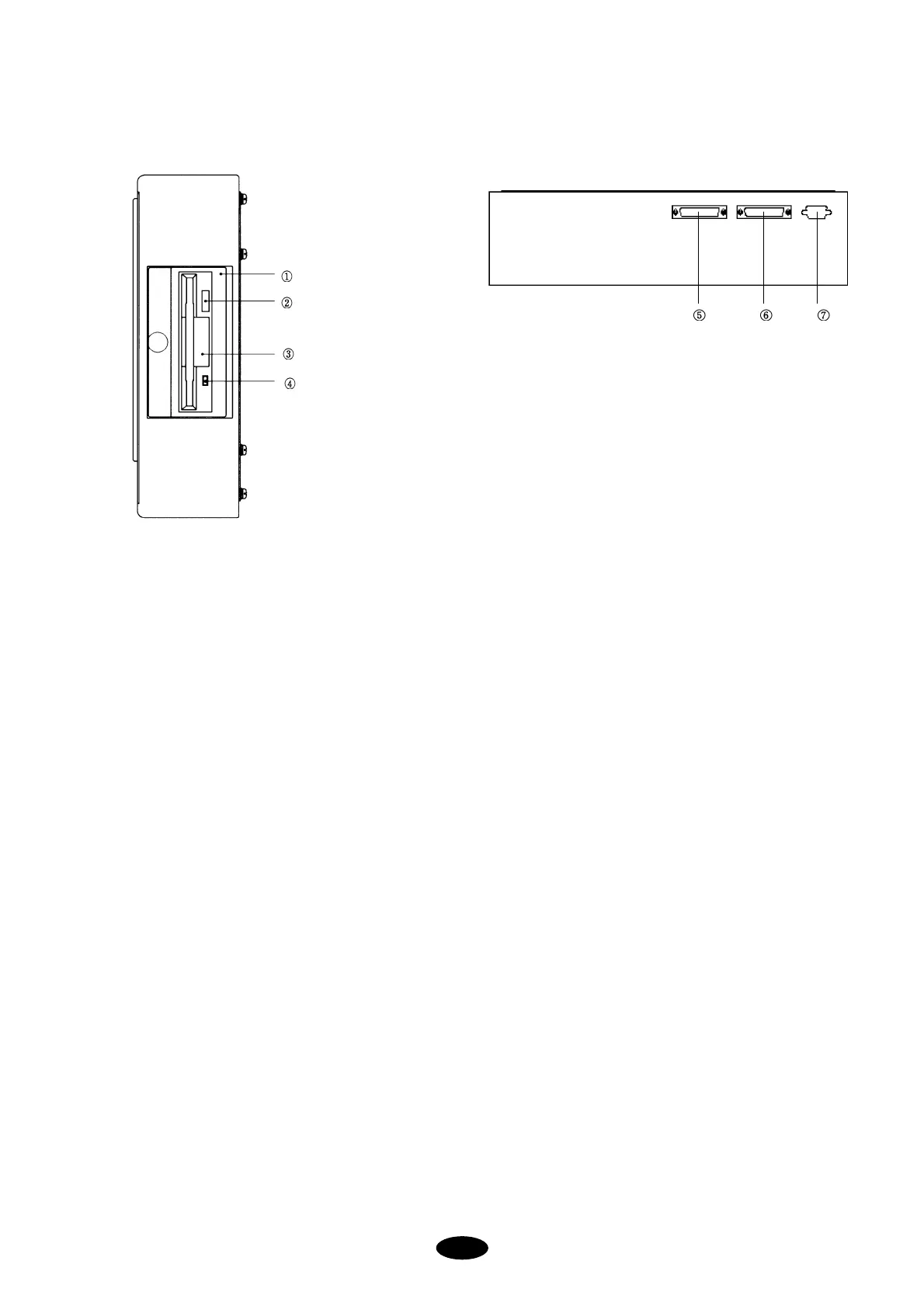

5-3
[Right]
① Acryl cover: protects the floppy disk drive
② Disk Out: takes the disk out
③ FDD: runs and reads the floppy disk
④ Work Lamp: blinks when FDD is in operation
⑤ COM1: serial port-1
⑥ Parallel port
⑦ COM2: serial port-2
[Fig. 5-2]
[Bottom]
[Fig. 5-3]
