SunStar SWF/C-T1501 - CHAPTER 9 THE CONTROL BOX; 9-1) CHANGING FUSE IN JOINT BOARD OF M;C WITH LESS THAN 12 HEADS; 9-1-1) SWF; -U Series (excluding SWF;C-UH1508-45)

9-1
9-1) CHANGING FUSE IN JOINT BOARD OF M/C WITH LESS THAN 12 HEADS

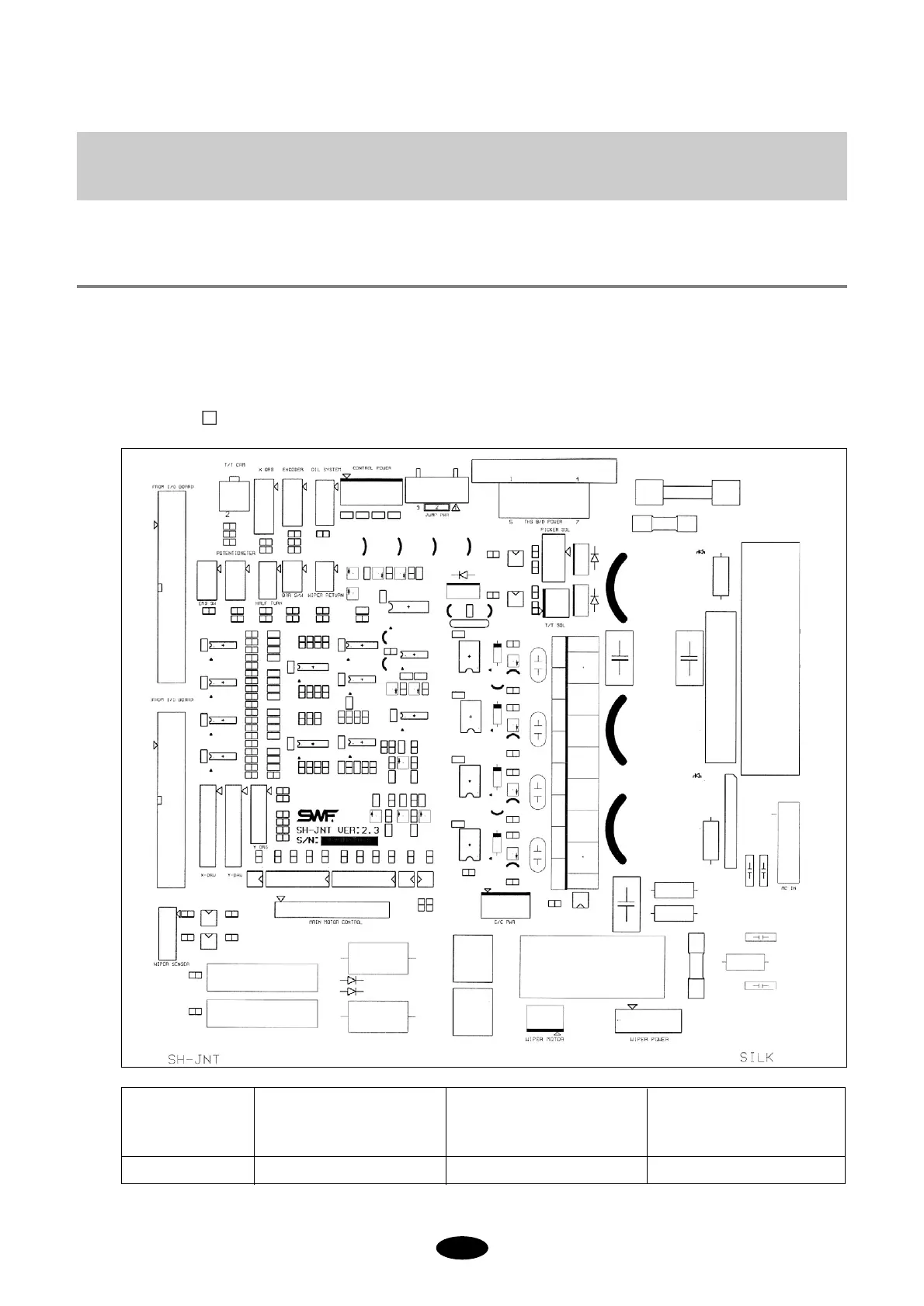

Refer to the table below and fill the exact amount of fuse when changing fuse in the joint board.
9-1-1) SWF/ -U Series (excluding SWF/C-UH1508-45)
THE CONTROL BOX
CHAPTER 9
F2
F1
F3
Fuse
F1
Trimming solenoid
Picker solenoid
F2
Wiper solenoid
F3
Wiper motor
Fuse Capacity
250V/3A 250V/7A 250V/2A
