STANDARD SLIP
MOORING

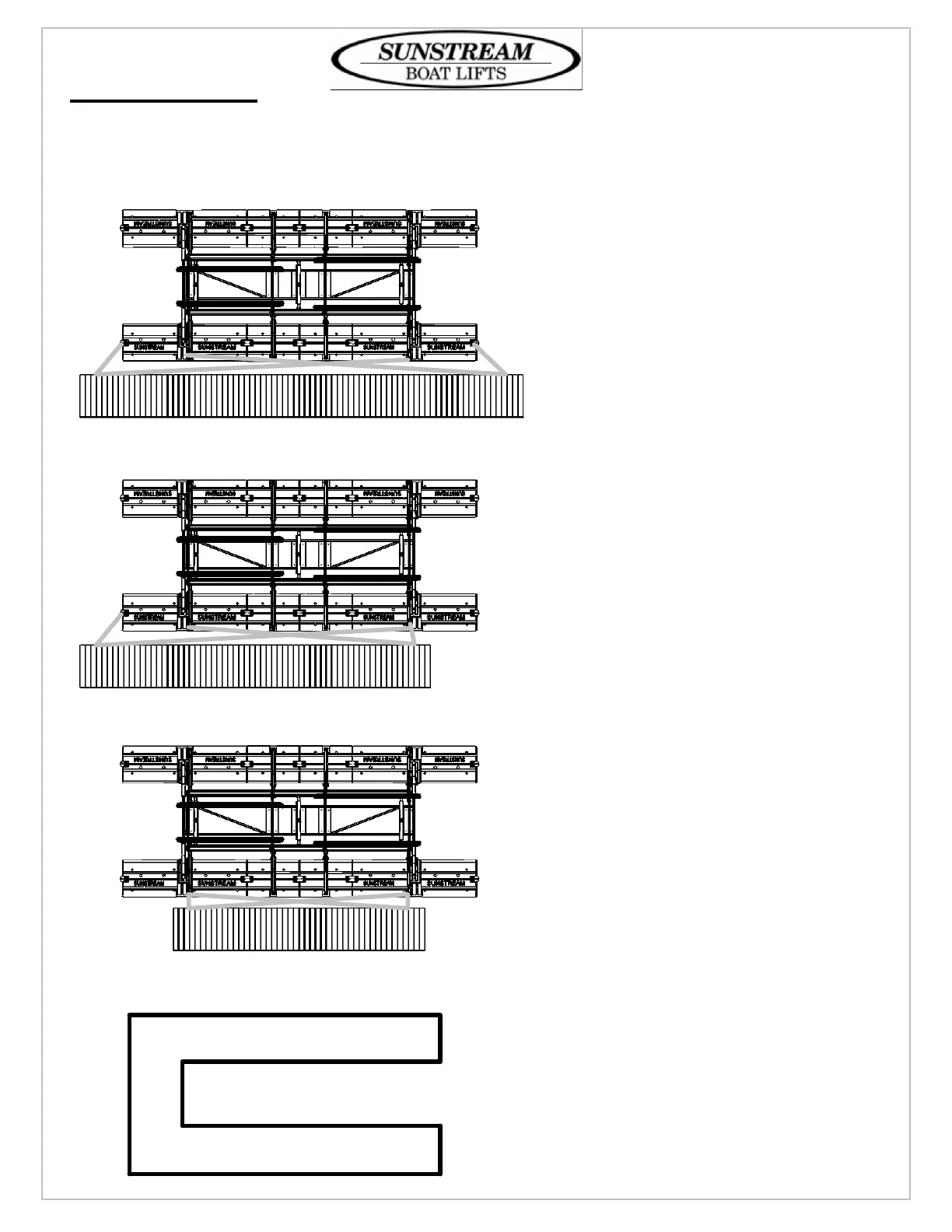

THE FOLLOWING DIAGRAMS DEPICT THE FLOAT LIFT IN DIFFERENT DOCK
CONFIGURATIONS.
FLOATING DOCK WITH A
HEIGHT LESS THAN 3'(91cm)
ABOVE WATER WITH A SINGLE
OVERHANG. USE J-RAIL,
SPRING LINE KIT, FENDERS AND
CLEATS.
FLOATING DOCK WITH A
HEIGHT LESS THAN 3'(91cm)
ABOVE WATER WITH DOUBLE
OVERHANG. USE J-RAILS,
SPRING LINE KITS, FENDERS AND
CLEATS.
FLOATING DOCK WITH A
HEIGHT LESS THAN 3'(91cm)
ABOVE WATER AND A DOCK
LENGTH GREATER THAN THE
FLOAT LIFT. SPRING LINE KIT,
FENDERS AND CLEATS.
FLOATING DOCK WITH A
HEIGHT LESS THAN 3'(91cm)
ABOVE WATER WITH DOUBLE
OVERHANG. USE J-RAILS,
SPRING LINE KITS, FENDERS AND
CLEATS.
