SUN-BATT-5.12 | User Manual17
PLEASE NOTE

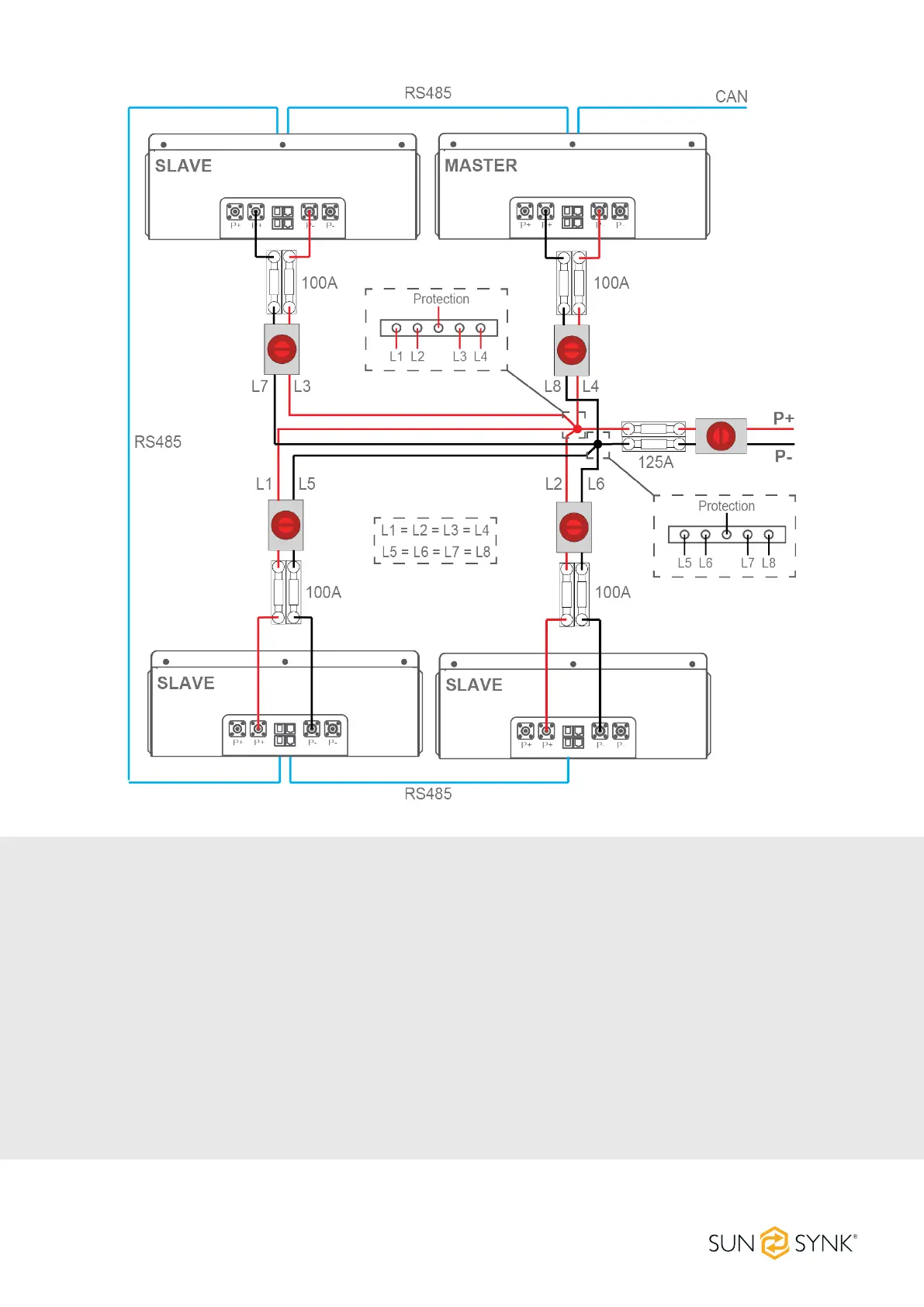

All parallel power cables should be of the same length:
(L1 = L2 = L3 = L4 = L5 = L6 = L7 = L8)
You are advised to use the EV power cables with minimal size of 25 mm2 or 3AWG (600V, 125A)
and length min.1500mm.
The P+ and P- power line between the busbar and the PCS should be able to support 200A rated
current, You are advised to use the EV power cable with size min. 50 mm2 or 0AWG (600V, 210A).
Before assembling Power cable, label the cable polarities correctly to ensure correct cable connec-
tions and identication.
The power cables installation and connection must be carried out by trained professionals.
