SUNWARD SWE70B - Every 500 Hours Service

102
5.5.7 Every 500 Hours Service
Carry out EVERY 50 HOURS SERVICE and EVERY 100 HOURS SERVICE at the same time.
5.5.7.1 Greasing Ball Track of Swing Bearing
 Stop the machine at level ground, lower the bucket at level ground.
 Shut auto-idle speed switch, run the engine unloaded at low speed for 5 minutes.
【Important】
 Stopping the engine improperly may damage
turbocharger.
 Set start key to OFF position, stop the engine, remove the
key from starting lock, set safety lock lever to LOCK
position.

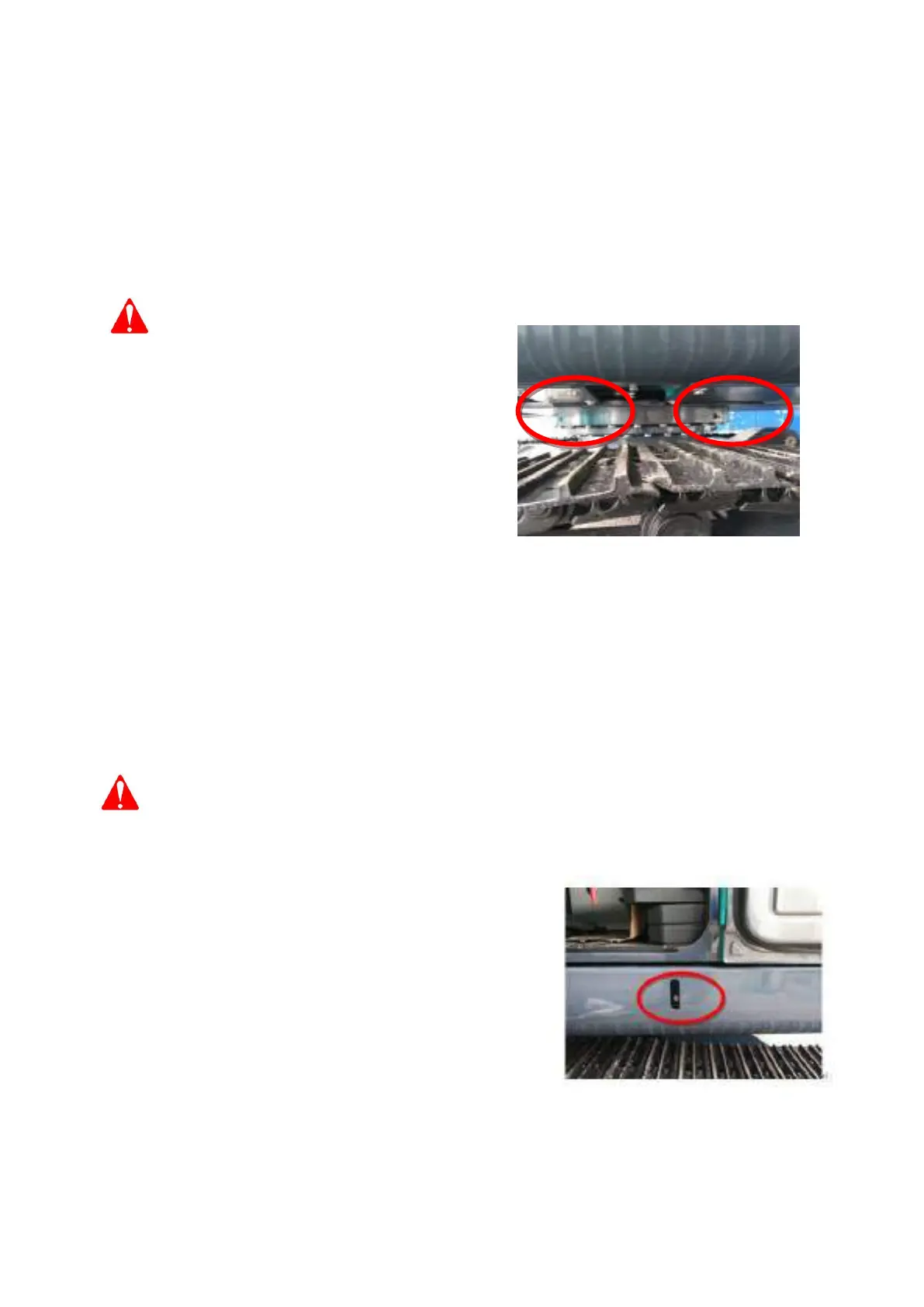

 Pump in grease through 3 grease fittings to swing bearing
ball track.
 Start engine, lift bucket, and swing upper-structure at 45
degree.
 Repeat 3 times from step 3 until lubricating grease
overflows from swing bearing seal.
5.5.7.2 Lubricate Swing Mechanism
 Stop the machine at level ground, lower the bucket to
ground.
 Stop auto-idle switch, run the engine unloaded at low speed
for 5 minutes.
【Important】
 Stopping the engine improperly may damage
turbocharger.
 Set start key to OFF position, stop the engine, remove the
key from starting lock, set safety lock lever to LOCK
position.
 Loosen 2 bolts of grease fill port cover located on front part
of turret. Then remove grease fill port cover (1).
 Check that grease height in the position where pinion
passes by should be at least 14mm (0.6in), and free of
pollution; add 0.5kg lubricate grease to reach standard
height if necessary.
 Check the color of the grease, in case of white, change it.
 Drain port locates around central swing joint under lower
carriage frame.
