Tie the chain or thick rope on the chassis frame,
don‘t traverse or press the chain or thick rope
on the hydraulic pipe or hose.

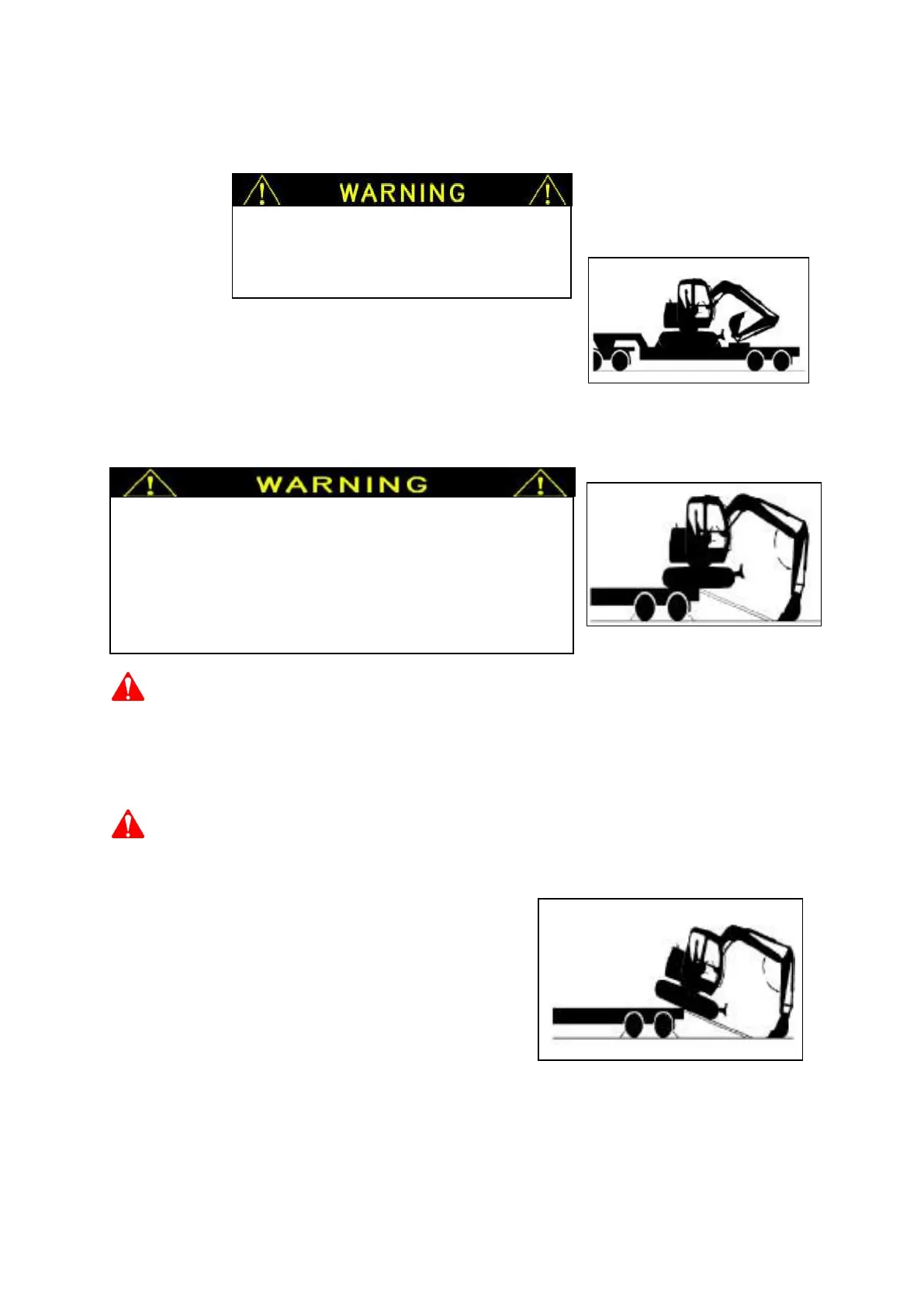

Figure 4.1.7
Transportation
 Place chocks at the front and rear of crawler to fasten machine.
 Fasten the 4 corners and foreside attachment of machine on the
trailer with chain or thick rope (As figure 4.1.7).
Unloading
【Important】Prevent the possible damage to working device. During unloading, keep the angle between
arm and boom as 90°, unloading with arm retracted may cause the machine damaged.
A. When the machine travel from trailer bed to slope as illustrated, place the bucket to the ground as figure,
the angle between arm and boom should be 90--110 (As figure 4.1.8).
【Important】Prevent the possible damage to the hydraulic cylinder. Don‘t allow the bucket to collide
with the ground.
B. You must place the bucket to ground before the machine
heel over (As figure 4.1.9).
C. During the excavator moving forward, lift boom and
extend arm, until the excavator leave the slope.
 The machine should travel at lowest speed on slope.
 To avoid turning when move on slope, if need turning, the
machine should return to the ground or trailer bed,
modify the travel direction, then pass the slope.
 The intersection of slope top and trailer bed is
protuberant, pass it carefully.
90
0
~110
0
Figure 4.1.9
Figure 4.1.8
90
0
~110
0
