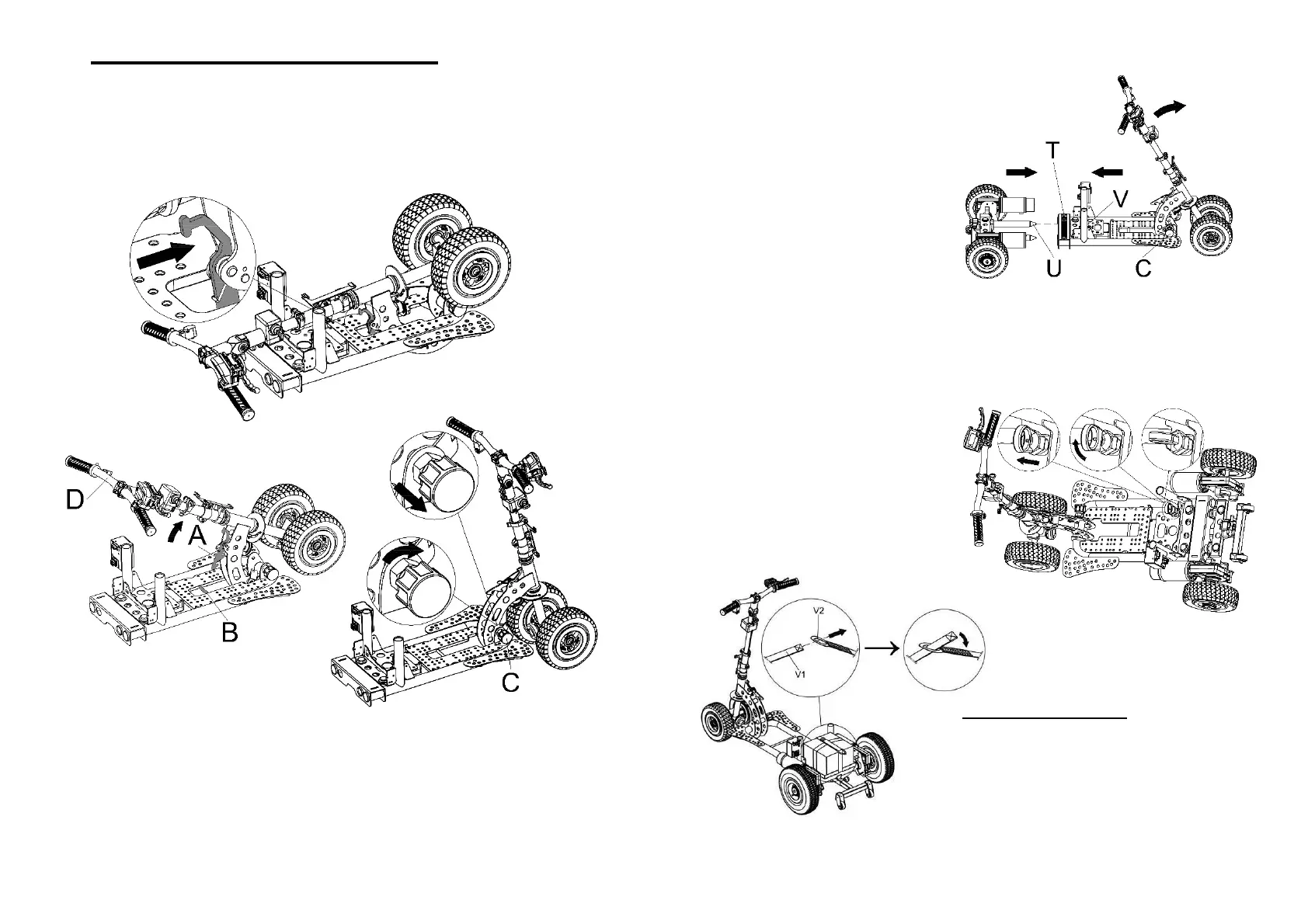

TO OPEN THE SUPASCOOTA
● Use one hand to hold the tiller handle (D) and use the other hand
to push the lock pin lever per the illustration and lift the handle.
Pull the tiller lock (C) and turn it clockwise. Continue lifting the
tiller until you hear the “click”, the locking into position.
Frame Assembly
Assembly and disassembly is best carried out by pulling the
locking pin C and allowing the tiller assembly to fold forward until
it rests on the ground.
- 13 -
● Pull the lock pin knob (V) and
turn it to the “lock” position.
● Hold both frame sections
horizontally by using the strap (T)
with one hand and the rear
section with the other hand
and slide both together by
inserting the tubes (U) into
the corresponding holes
in the front frame.
● The pin will click when inserted correctly.
You must check that the pin
has locked into position.
For SLA Battery
● Install the battery into the tray
and fasten it securely.
