ASSEMBLY

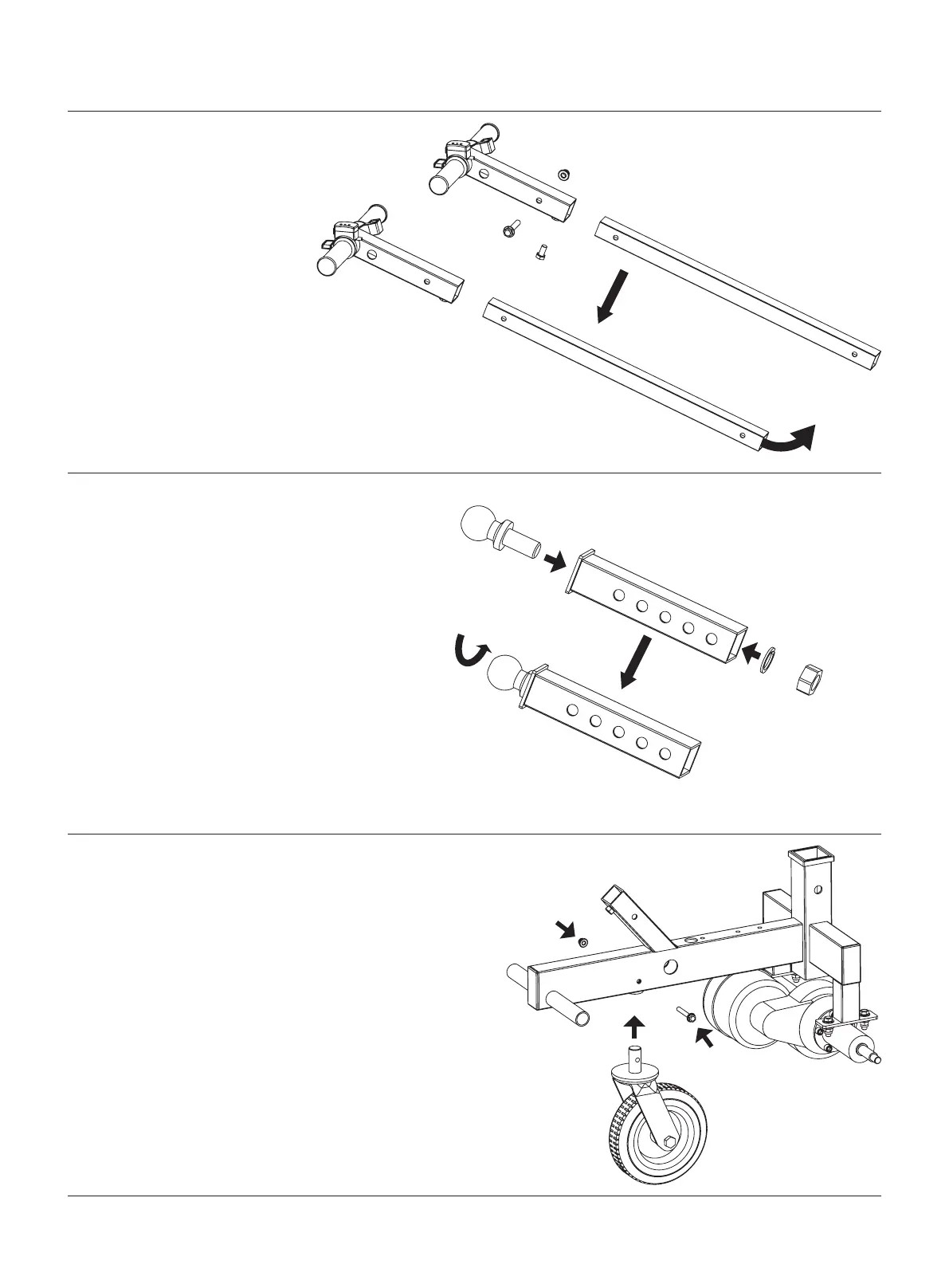

1. Assemble the handlebar
Insert the connecting rod into the handle-
bar, make the holes aligned and screwed
by bolts; Pull the cable out from connecting
rod ends. (See Figure 1)
2. Hitch ball mount assembly
Fit in the washer and nuts into adjustable
ball mount, thread the hitch ball till com-
pletely fit. (See Figure 2)
3. Assemble the swivel wheel
Put the swivel wheel shaft into the force
frame, fixed by nut and bolt (See Figure 3)
Figure 1
Figure 2
Figure 3
Connecting Rod
To Next Page
