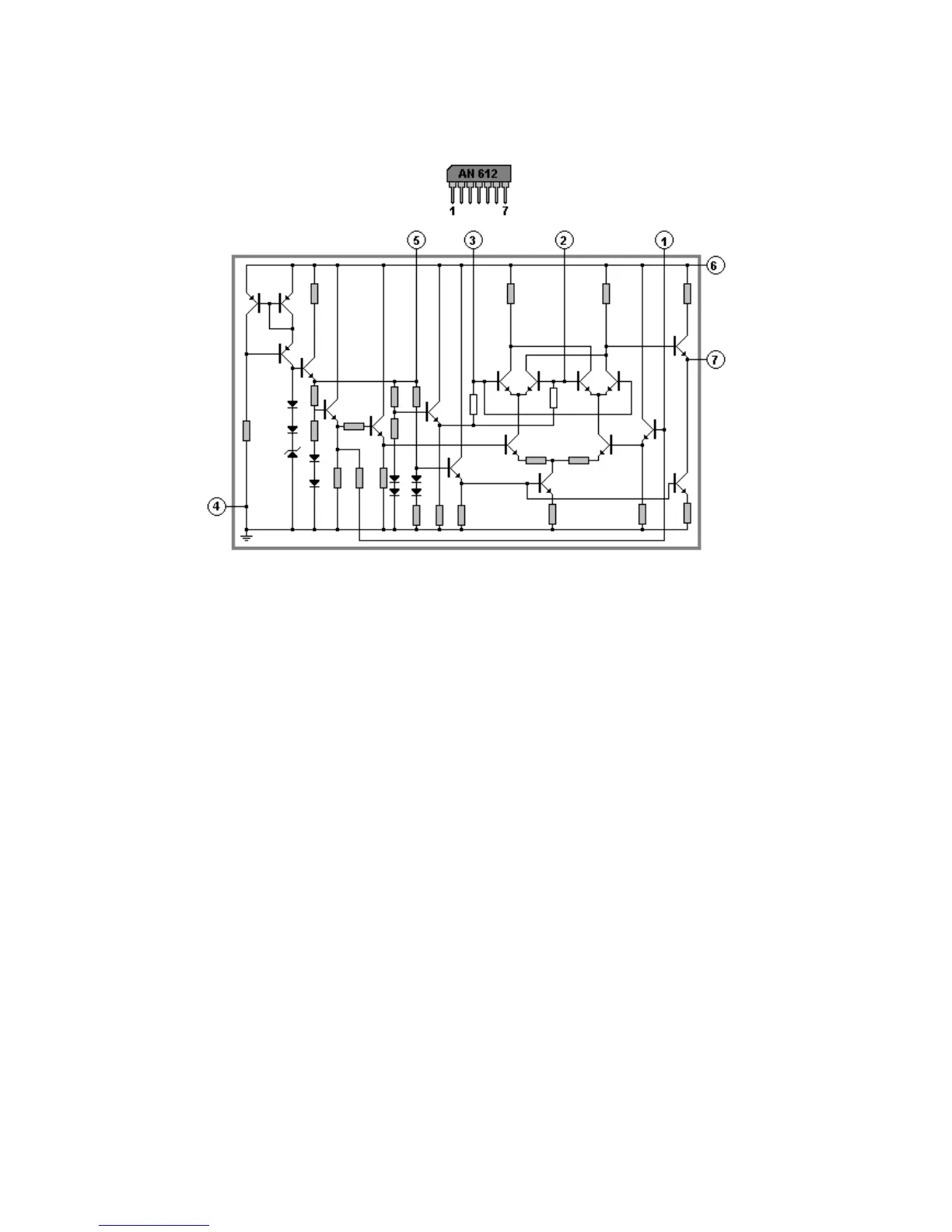

AN612 Modulator / Demodulator / Mixer
Similar to NTE1249
Pin
Name
Description
1
Signal input
2
Bias input
3
Signal input
4
GND Ground
5
Bias output
6
VCC Positive Supply Voltage
7
Output
