Super Star 2200 - Oscillator and PLL ICs; AN103, KIAxxx, TA7310 P ICs; PLL02 A Frequency Synthesizer

AN103, KIA6410S, KIA7310P, SK3445, TA7310P

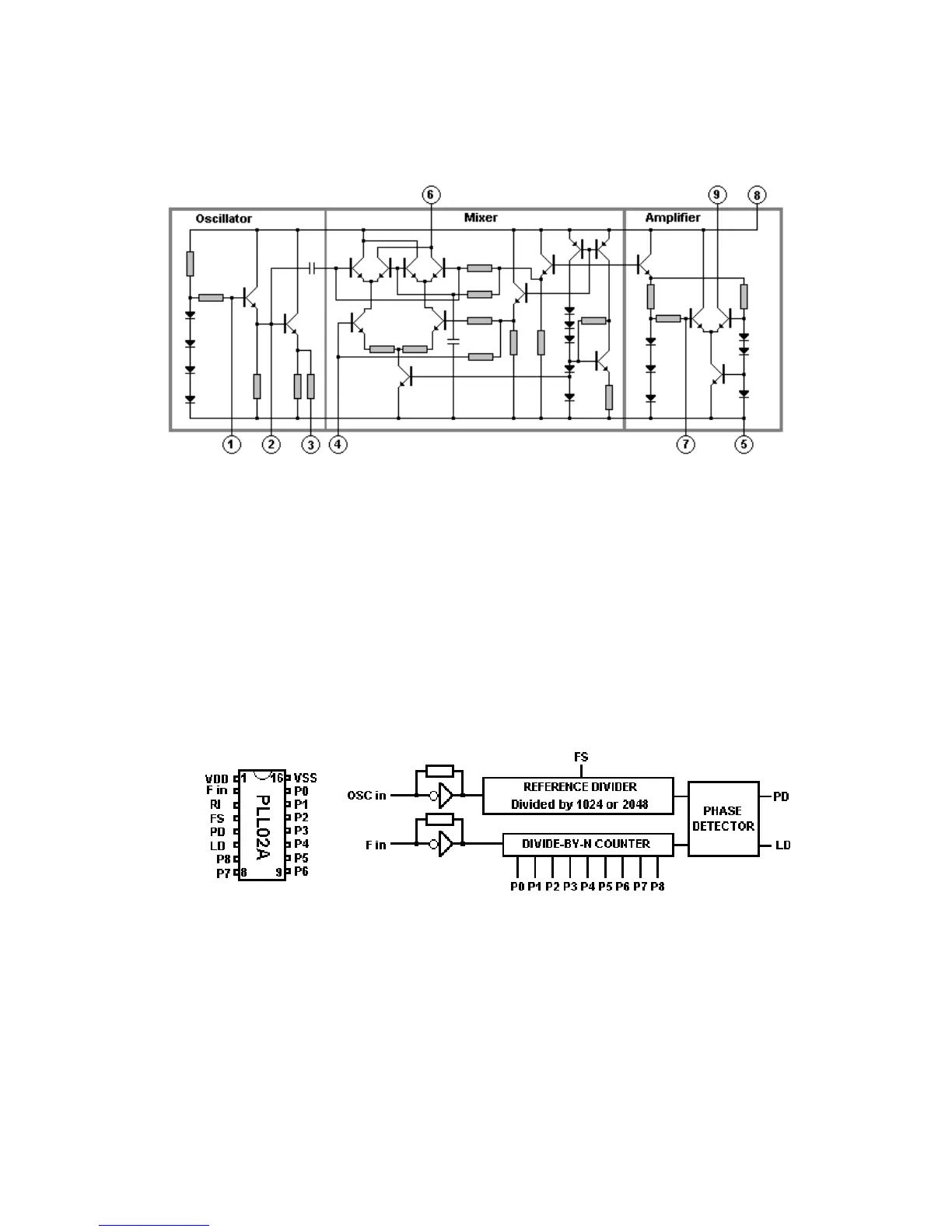

Oscillator, Mixer and Amplifier
VCO for Phase Lock Loop (PLL)
Pin Name Description
1
Oscillator Input
2
Oscillator Output
3
Oscillator Output - Buffered
4
Mixer Input
5
GND Ground
6
Mixer Output
7
Amplifier Input
8
Vcc Positive Supply Voltage - 9 Volt
9
Amplifier Output
PLL02A
MC145109 MM48141 AN6040 MN6040 SM5109 TC9100
PLL Frequency Synthesizer
Overview
This PLL-circuit use a 9 bit BCD binary programmable divide-by-N counter.
