Super Systems 31095 - Installation; Panel Cut-Out Specifications

7
2 - Installation

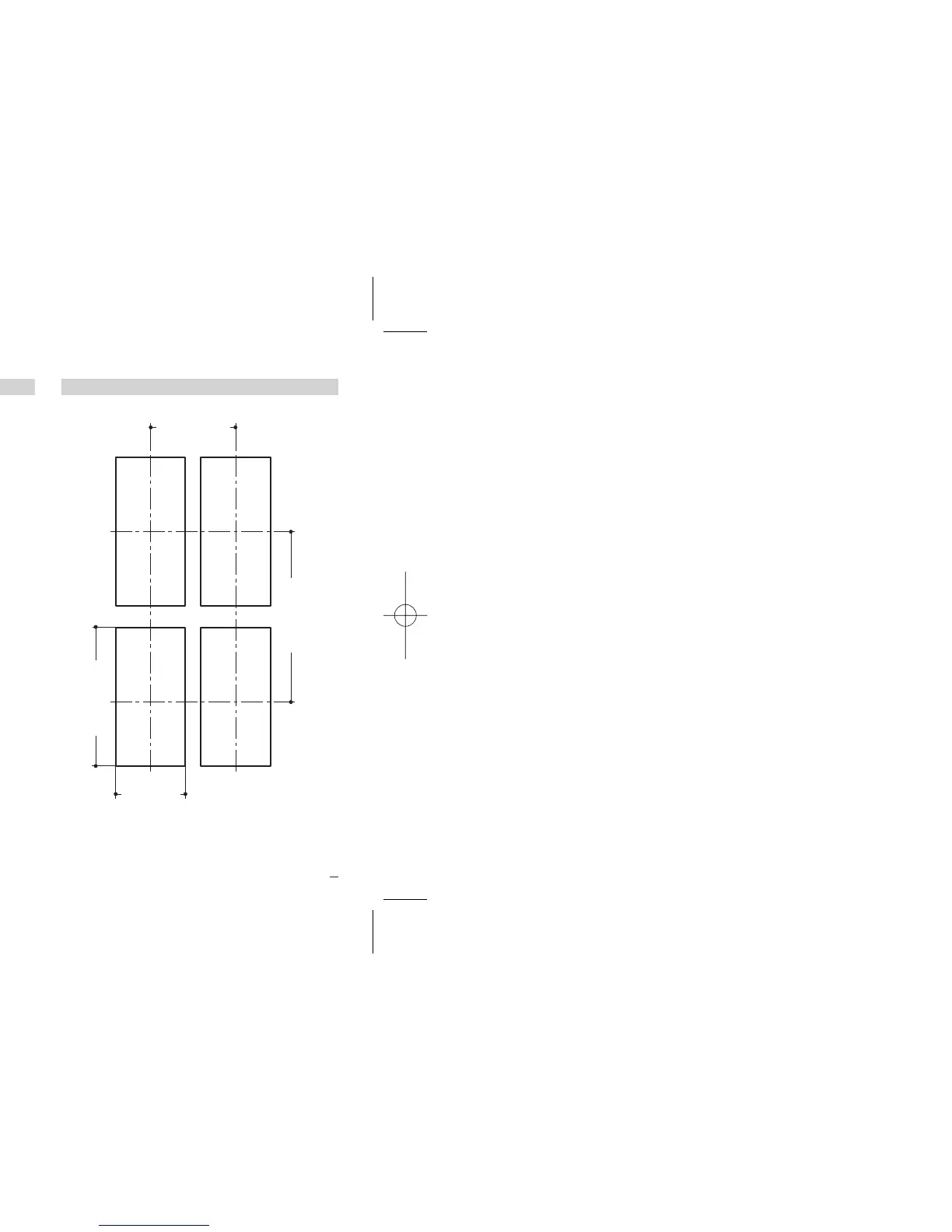

2.1.1 DIMENSIONAL DETAILS 2.1.2 PANEL CUT-OUT
96 mm
3.78 in
110 mm
4.33 in
48 mm
1.89 in
10 mm max.
0.39 in max.
10 mm max.
0.39 in max.
65 mm min
2.56 in min
45
+0.6
mm
1.78
+0.023
in
92
+0.8
mm
3.62
+0.031
in
113 mm min
4.45 in min
