Installation Method

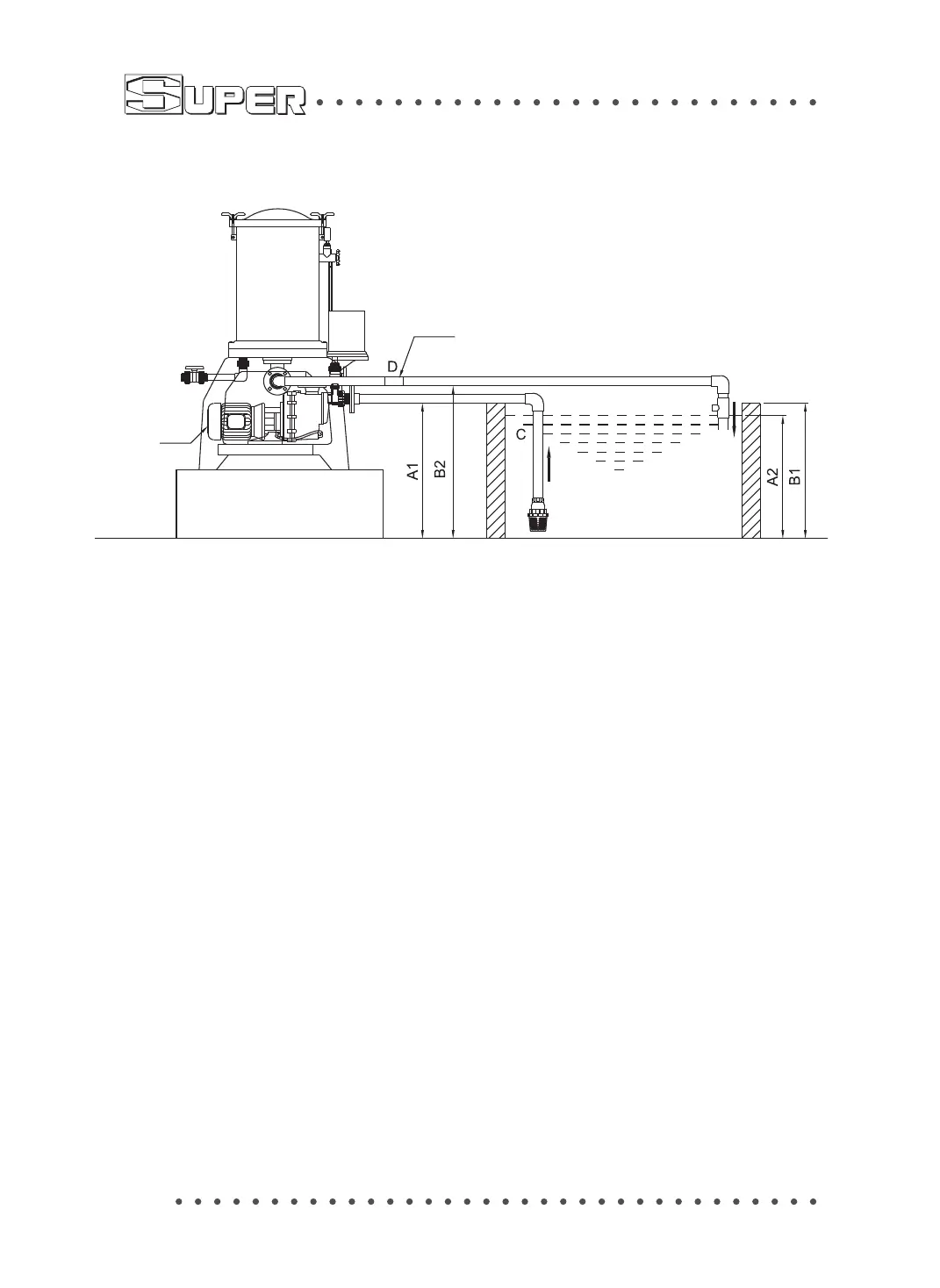

1. Set The Filter Pump High (A1) And Chemical Solution/Water Level (A2) A1=A2
2. Chemical Solution/Water Outlet (B2) ,Chemmical Solution/Water Holding
Tank (B2) B1=B2.
3. Please Install A Flow Monitor (D) On The OutLet
4. Pump Inlet (C) Should Be Installed With A Foot-Valve Or Strainer. Please
Make Sure That There Is No Leakage From The Inlet Pipe.
5. If There Are Bubbles Flowing In Flow Monitor (D) During Normal Operation,
Please Examine If Air Is Being Sucked In Somewhere Along The Inlet Pipe.
6. When The Pump Inlet And Outlet Are Lower Than The Liquid Level Of Tank,
Install A Chck Valves On The Inlet And Outlet Pipe To Prevent Siphoning.
7. Install Check Valve on In/Outlet If The Pump Is Located Under The Chemical
Solution/Water Tank, For Easy Cleaning & Maintenance Purpose
•
Example
Pump
Drain
Air Release
Flow Monitor
Foot Valve
Drill A Hole About 5~10 M/M In Diameter
On The Outlet Pipe Or Install A T-Strainer
To Prevent Siphoning. (5 CM Above Water
Level)
