Machine Assembly
3. Assemble the top assembly with the frame by installing the two 1/4-20
X 1 3/4” long screws and washers provided.
4. Tighten both screws with the 3/16” allen wrench provided VERY tightly.
* NOTE: THIS REQUIRES TWO PEOPLE TO SAFELY ASSEM-
BLE *
1. Carefully unpack the top assembly and
frame from the box

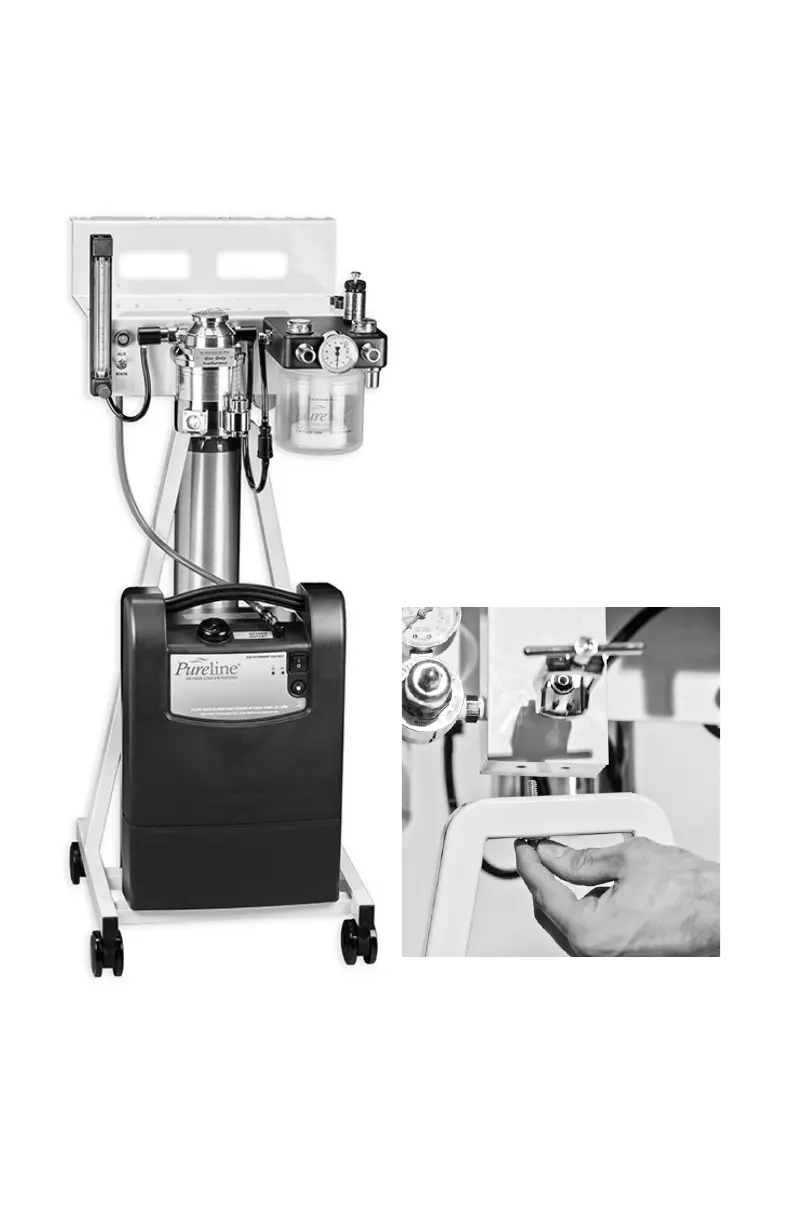

2. Align the top to the frame as shown.
NOTE: The frames base has two cross
bars with holes in them for mounting
the concentrator. That is the front of the
frame.
To Next Page
