LT2-F Assembly Manual
SuperDroid Robots, Inc Contact
224 Technology Park Lane (919) 557-9162
Fuquay Varina, NC 27526 SDR@SDRobots.com
www.SuperDroidRobots.com
Revised: June 19, 2018 Page 5 of 25

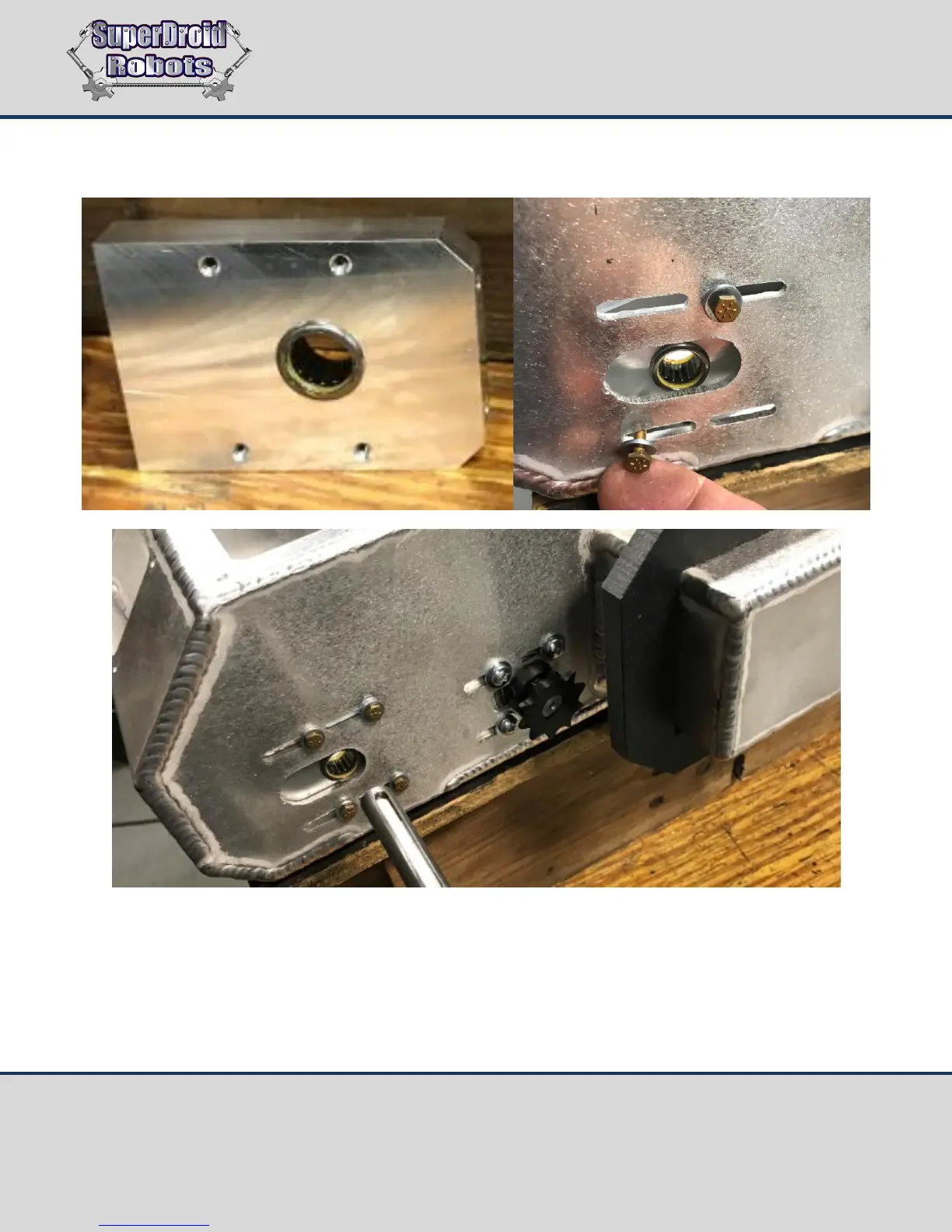

Mount the tension blocks with the #6 hardware. Get all the screws started but can leave them loose until you
install and tension the treads.
Slide the rear axle into the tension blocks. Make sure to slide it in so that the middle key slot will line up with the
flipper arm motor.
