LT2-F Assembly Manual
SuperDroid Robots, Inc Contact
224 Technology Park Lane (919) 557-9162
Fuquay Varina, NC 27526 SDR@SDRobots.com
www.SuperDroidRobots.com
Revised: June 19, 2018 Page 6 of 25

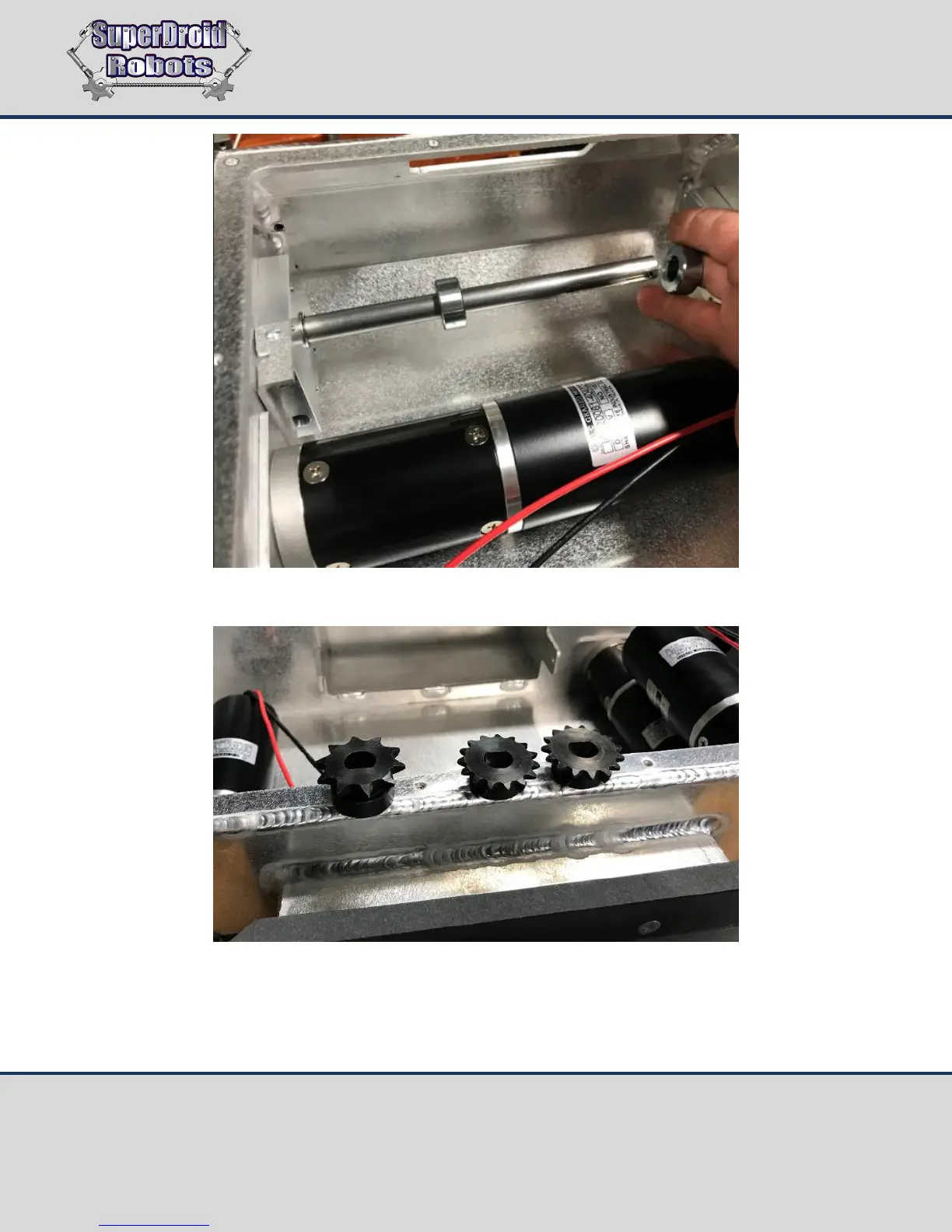

Use a lock collar on each side of the blocks to hold the bearings from sliding out. Do not tighten these yet.
Put the sprockets on the motor shafts. The #25 sprockets are used for the drive wheels. The #35 sprocket is used
for the flipper arm. Put Loctite on the setscrews but do not tighten them down all the way as you will need to
adjust them later in the assembly.
