Chapter 2: Hardware Components
2-1
SXB3_3
PCI-E 4.0 x8 (in x16)
SLOT3
SLOT1
JLAN1
JSFP+1
Intel®
X710-TM4
REV:1.01
AOC-2UR68G4-i4XTS
DESIGNED IN USA
PCI-E 4.0 x8 (internal in x16)
Chapter 2
Hardware Components
2-1 Add-On Card Image and Layout

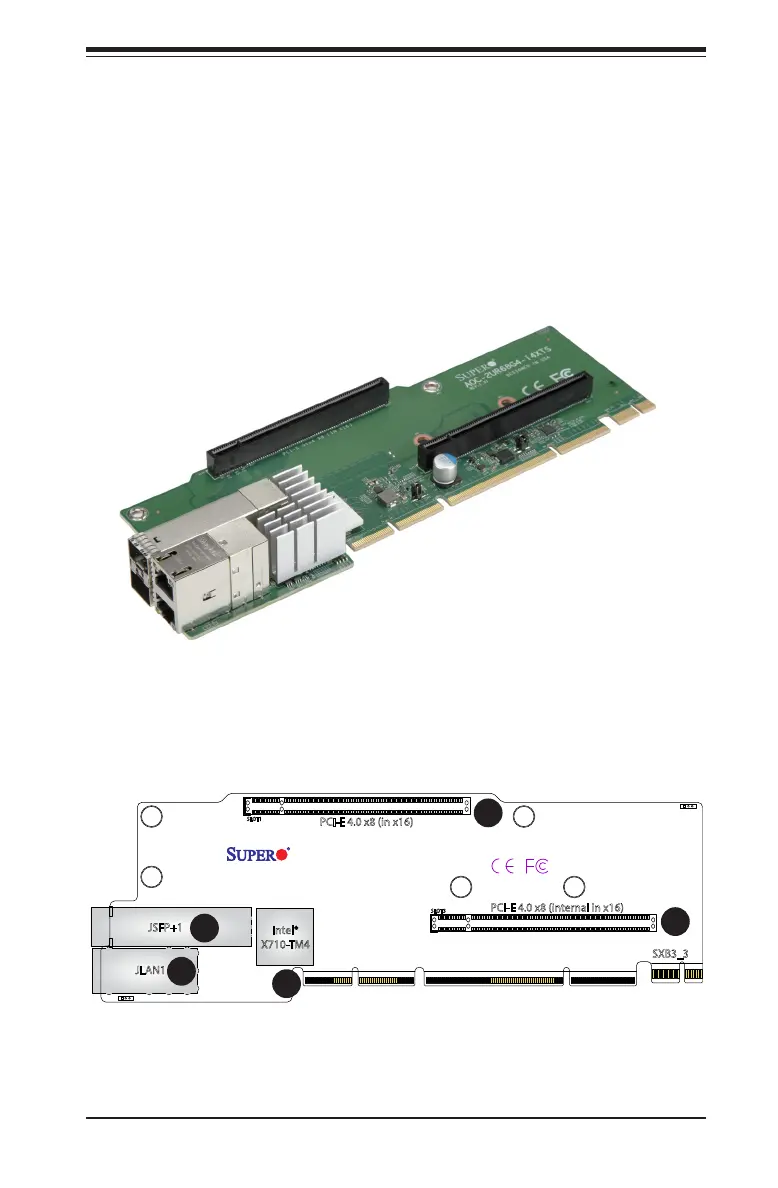

AOC-2UR68G4-i4XTS Image
3
1
2
4
5
AOC-2UR68G4-i4XTS Layout (Top)
